Description

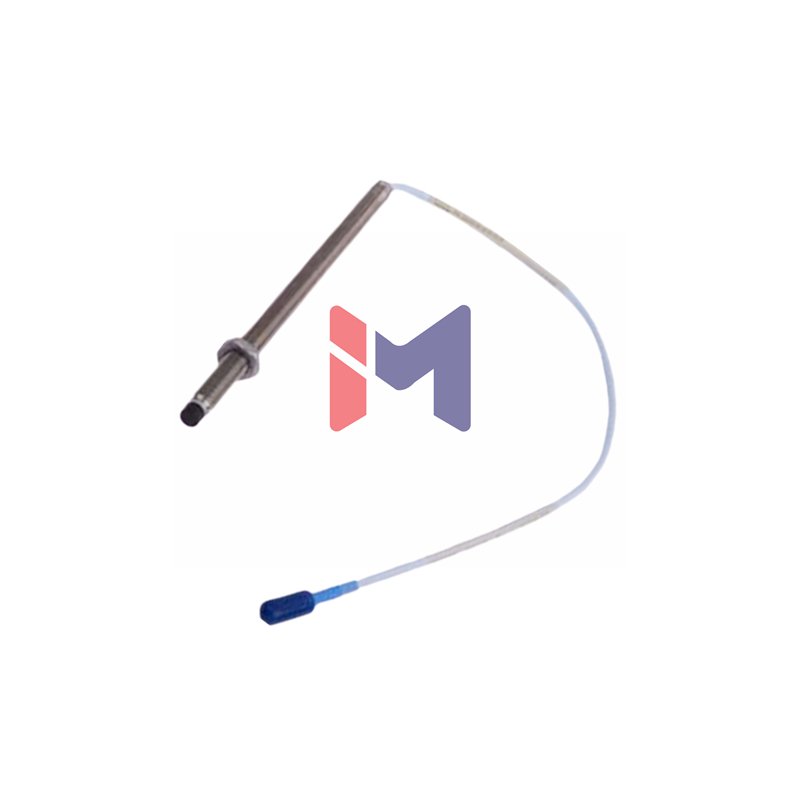

Bently Nevada 330903-00-03-70-01-00: Extended Length Proximity Probe
The Bently Nevada 330903-00-03-70-01-00 combines a 30mm standard case with an extended 7.0-meter cable and connector protection. This configuration offers versatile installation options for various industrial monitoring applications with enhanced connector durability.
Product Identification & Specifications
- Brand: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Complete Model Number: 330903-00-03-70-01-00
- Condition: New & Original, Factory Sealed
- Case Material: AISI 304 Stainless Steel
- Tip Material: Chemical-Resistant PPS
Configuration Decoder
- 330903 – Base Model: M8X1 Thread, Without Armor
- -00- – Unthreaded Length: 00 mm
- -03- – Case Length: 30 mm Standard Size
- -70 – Cable Length: 7.0 meters (23.0 feet)
- -01 – Connector: ClickLoc with Protector, Standard Cable
- -00 – Approvals: Standard Industrial Compliance
Technical Performance Data
- Electrical Resistance: 5.9 Ω ± 0.9 Ω at 7.0 meters
- Capacitance: 69.9 pF/m typical cable capacitance
- Frequency Response: 0 to 10,000 Hz (±3 dB)
- Scale Factor: 7.87 V/mm (200 mV/mil) ±12.5%/-20%
- Linearity: Better than ±0.06 mm deviation
- Phase Accuracy: < 2° at 8 kHz
- Temperature Coefficient: 0.08%/°C maximum
- Response Time: 30 μs for 10% to 90% step response
Physical Construction Details
- Case Dimensions: 30 mm standard length
- Thread Specification: M8x1 metric thread
- Thread Engagement: Maximum 12 mm depth
- Cable Type: Standard FEP-insulated 75 Ω coaxial
- Connector System: ClickLoc with protective cover
- Sealing Element: Viton O-ring for environmental protection
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Weight: Approximately 300 grams with 7.0m cable
Measurement Specifications
- Linear Range: 0.25 mm to 1.75 mm from target
- Recommended Gap: 1.0 mm (40 mils) from target surface
- Minimum Target Size: 8.9 mm diameter
- Optimal Target Size: 13 mm diameter or larger
- Field Wiring Distance: Up to 305 meters maximum
- Output Voltage Range: -1 to -13 Vdc proportional to gap
- Measurement Resolution: 0.25 mm increments
