Description
Product Overview

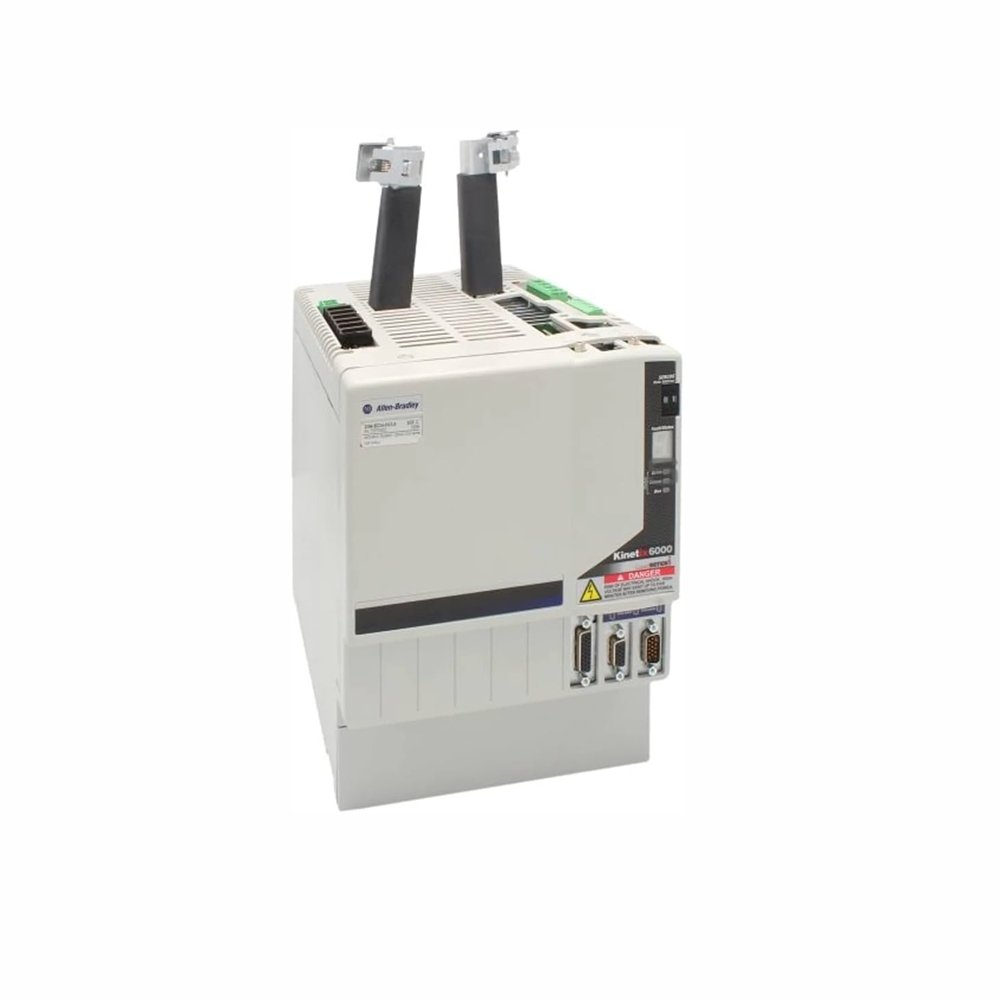

The 2094-BC02-M02-M is an Allen-Bradley Integrated Axis Power Module (IAM) from Rockwell Automation. This module combines an inverter and converter section in a single unit, requiring one control module for operation. It delivers robust performance for demanding motion control applications in industrial automation.
Technical Specifications Analysis
The 2094-BC02-M02-M operates at a voltage rating of 400/460VAC with a nominal drive voltage of 360-480 Volts (3 Phase). It provides a converter section output of 15kW and an inverter section output of 72 Watts. The output current is 15 A (0-pk). Power dissipation ranges from 36 to 75 Watts. Heat dissipation for the converter section is 44 W at 20%, and for the inverter section it is 72 W at 40%. The module has a wattage of 6.6 kWatts and a maximum bus capacitance of 8955 Microfarads. It weighs 13.0 lbs (5.90 kg) and measures 4.9 x 11.9 x 13.2 in (125 x 302 x 336 mm). Operating temperature range is 32-122 F (0-50 C). Installation requires 80 mm (3.10 in.) clearance and a minimum enclosure depth of 302 mm (11.9 in.). The control input fuse is FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A).
Application Scenarios & Usage Methods
This Integrated Axis Power Module is ideal for multi-axis servo drive systems in packaging, material handling, and assembly lines. Use it to power and control servo motors in coordinated motion profiles. The 15kW converter section supplies DC bus power to multiple axis modules, while the inverter section drives a single motor. For best results, pair it with compatible Allen-Bradley Kinetix 6000 servo drives and a 460VAC three-phase power source within the 360-480 Volt range.
Installation Guide & Packing List
Mount the module in a clean, dry enclosure with proper ventilation. Ensure the minimum enclosure depth of 302 mm (11.9 in.) and maintain 80 mm (3.10 in.) clearance around the module for airflow. Use the specified control input fuse (FNQ-R-10 or FNQ-R-7.5). Connect the three-phase power supply (360-480 Volts) and the control module. The package includes the 2094-BC02-M02-M Integrated Axis Power Module and a documentation manual. Additional cables and connectors may be ordered separately.
Purchasing Advice
Verify your system voltage requirements match the 400/460VAC rating and the 15kW converter output. Check the inverter output current of 15 A to ensure it meets your motor specifications. Purchase from a trusted supplier like PLC Pioneer to guarantee genuine Rockwell Automation parts and reliable support.
Repair & Maintenance Tips
Periodically inspect the module for dust buildup on heat sinks and fans. Clean with dry compressed air. Check all connections for tightness and signs of corrosion. Operate within the specified temperature range of 0-50 C. Replace fuses only with the recommended FNQ-R-10 or FNQ-R-7.5 types. Store in a dry, static-free environment when not in use.
Frequently Asked Questions (FAQs)
Q: What is the input voltage requirement for the 2094-BC02-M02-M?
A: The module requires a nominal drive voltage of 360-480 Volts (3 Phase) with a voltage rating of 400/460VAC.
Q: What is the output power of the converter section?
A: The converter section output is 15kW.
Q: Does this module include a control module?
A: No, it requires one control module (sold separately) to operate.
Q: What is the weight of the 2094-BC02-M02-M?
A: It weighs 13.0 lbs (5.90 kg).
Q: What fuses are recommended for the control input?
A: Use FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A) fuses.
