Description

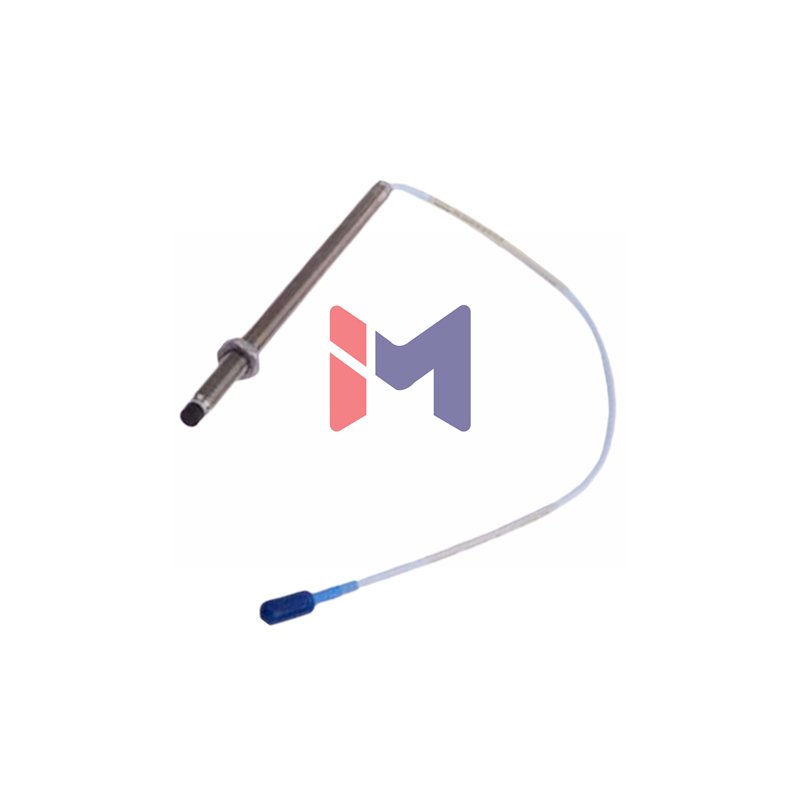

Bently Nevada 330903-00-03-50-02-00: Premium NSv Proximity Probe
The Bently Nevada 330903-00-03-50-02-00 is a high-performance NSv proximity probe. It offers superior chemical resistance and excellent side-view characteristics. This new and original probe comes in factory packaging. It ensures reliable vibration and position measurement in industrial applications.
Complete Suffix Information
- Brand: Bently Nevada
- Model: 3300 NSv Proximity Probe
- Full Part Number: 330903-00-03-50-02-00
- -00-: Unthreaded Length: 00 mm
- -03-: Overall Case Length: 30 mm
- 50: Total Cable Length: 5.0 meters (16.4 feet)
- 02: Connector Type: Miniature coaxial ClickLoc
- 00: Agency Approval: Not required
Technical Specifications
- Brand: Bently Nevada
- Model: 330903-00-03-50-02-00
- Linear Range: 1.5 mm (60 mils), from 0.25 to 1.75 mm from target
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil)
- Linearity (DSL): Better than ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz (+0, -3 dB)
- DC Resistance: 5.3 ± 0.7 ohms (for 5.0m cable)
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Minimum Target Size: 8.9 mm diameter (13 mm recommended)
- Probe Case Material: AISI 304 Stainless Steel
- Probe Tip Material: Polyphenylene Sulfide (PPS)
- Connector Torque: 5.1 N•m (45 in•lb) recommended, 7.3 N•m (65 in•lb) max
- Cable Bend Radius: 25.4 mm (1.0 in) minimum
Packaging List
- One Bently Nevada 3300 NSv Proximity Probe
- Factory original packaging
- All items are new and guaranteed original
FAQ
- Is this probe compatible with older systems? Yes, it works with previous 3300 RAM probe and cable systems.
- What is the cable length? The total cable length for this model is 5.0 meters.
- How do we ship your order? We ship globally via FedEx, UPS, and DHL.
Compare With Similar Models
- 330903-00-03-05-12-00 – 5.0m cable, different connector
- 330903-00-05-05-01-00 – Different length and connector options
