Description

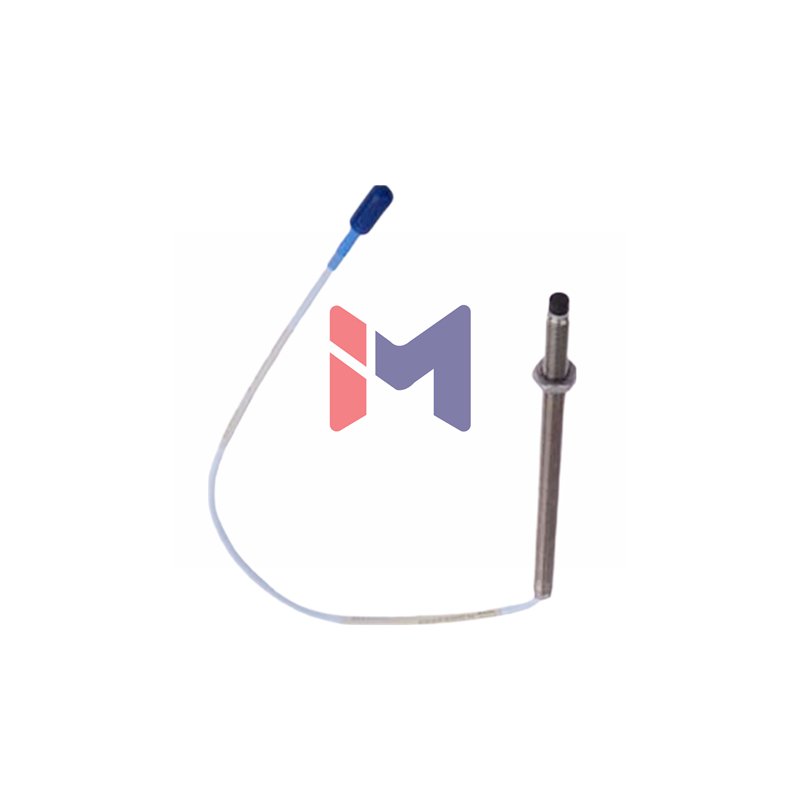

Discover the Bently Nevada 3300 NSv Proximity Probe
The Bently Nevada 3300 NSv proximity probe represents a significant advancement in vibration and position monitoring. This new, original unit comes ready for immediate installation in demanding industrial environments. Its enhanced chemical resistance makes it ideal for challenging applications like process compressors. We deliver this high-quality sensor directly to you with full factory warranty support.
For detailed specifications, download the datasheet here: 3300 XL NSv Proximity Transducer System Datasheet
Complete Model Suffix Breakdown
The full part number 330903-00-02-70-12-05 provides a complete configuration summary:
- Model: 330903 – 3300 NSv Probe, M8X1 thread, without armor
- Unthreaded Length (-00-): 00 mm
- Overall Case Length (-02-): 20 mm
- Total Length (70): 7.0 meters (23.0 feet)
- Connector/Cable (12): Miniature coaxial ClickLoc connector, FluidLoc cable
- Agency Approval (05): Multiple Approvals
Key Technical Specifications
The 3300 NSv probe delivers reliable and precise measurements for your machinery.
- Brand: Bently Nevada
- Model: 330903-00-02-70-12-05
- Linear Range: 1.5 mm (60 mils), starting at 0.25 mm from the target
- Recommended Gap Setting: 1.0 mm (40 mils)
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil)
- Linearity (Deviation from DSL): Better than ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz
- Probe DC Resistance: 5.9 ± 0.9 ohms (for 7.0m length)
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Probe Tip Material: Chemical-resistant Polyphenylene Sulfide (PPS)
- Probe Case Material: Durable AISI 304 Stainless Steel
Installation & Mechanical Details
Proper installation ensures optimal performance and long service life for the 3300 NSv probe.
- Probe Case Thread: M8x1
- Maximum Thread Engagement: 12 mm
- Recommended Mounting Torque: 5.1 N•m (45 in•lb)
- Maximum Torque: 7.3 N•m (65 in•lb)
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Target Size: Minimum 8.9 mm diameter (13 mm recommended)
Electrical & Cable Information
The integrated coaxial cable and connector system ensures signal integrity.
- Probe Cable Type: 75-ohm coaxial with FEP insulation
- Connector Type: Miniature coaxial ClickLoc
- Extension Cable Shield Resistance: 0.066 Ω/m
- Extension Cable Capacitance: 69.9 pF/m typical
- Field Wiring: Use shielded triad cable, max 305 meters to monitor
Packaging & Shipping
Your order arrives quickly and securely, ready for use.
- Condition: New and original, in factory packaging.
- Shipping: We ship globally via FedEx, UPS, and DHL.
- Packaging Includes: The 330903-00-02-70-12-05 probe unit.
Frequently Asked Questions (FAQ)
- What is the main improvement of the 3300 NSv over the 3300 RAM probe?
The 3300 NSv features significantly increased chemical resistance for use in process compressor applications. - Can I use this probe with my existing Bently Nevada extension cables?
Yes, the 3300 NSv probe is mechanically and electrically compatible with previous 3300 RAM probe extension cables. - What is the maximum temperature this probe can withstand?
The probe operates reliably in temperatures from -52°C to +177°C. - How do I determine the correct gap setting for the probe?
The recommended gap setting is 1.0 mm (40 mils) from the target surface.
