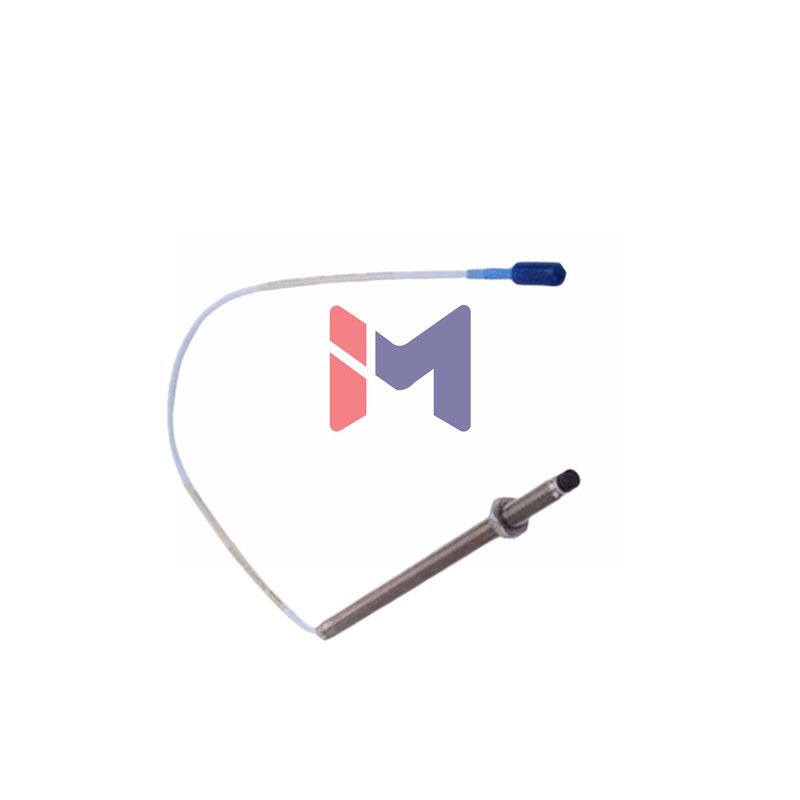

Bently Nevada 330903-00-02-70-12-00: Extended Reach Proximity Solution
The Bently Nevada 330903-00-02-70-12-00 offers an exceptional combination of compact design and extended reach with its 7.0-meter FluidLoc cable. This proximity probe delivers superior performance in space-constrained applications requiring longer cable runs without compromising measurement accuracy.
Product Identification & Specifications
- Brand: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Full Model Number: 330903-00-02-70-12-00
- Case Material: AISI 304 Stainless Steel
- Tip Material: Chemical-Resistant Polyphenylene Sulfide (PPS)
- Cable Technology: FluidLoc with FEP Insulation
Configuration Breakdown
- 330903 – Base Model: M8X1 Thread, Without Armor
- -00- – Unthreaded Length: 00 mm
- -02- – Compact Case Length: 20 mm
- -70 – Extended Cable: 7.0 meters (23.0 feet)
- -12 – Connection System: ClickLoc Connector, FluidLoc Cable
- -00 – Certifications: Standard Industrial Compliance
Performance Characteristics
- Electrical Resistance: 5.9 Ω ± 0.9 Ω at 7.0 meters length
- Capacitance Value: 69.9 pF/m typical cable capacitance
- Frequency Response: 0 to 10,000 Hz (±3 dB)
- Scale Factor: 7.87 V/mm (200 mV/mil) ±12.5%/-20%
- Linearity: Better than ±0.06 mm deviation
- Phase Shift: < 2° at 8 kHz operating frequency
- Temperature Stability: 0.08%/°C maximum drift
- Response Time: 28 μs for 10% to 90% step response
Physical Specifications
- Case Thread: M8x1 metric thread
- Maximum Thread Engagement: 12 mm
- Recommended Torque: Finger tight plus ¼ to ½ turn
- Maximum Torque: 5.1 N•m (45 in•lb)
- Cable Impedance: 75 Ω coaxial design
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Sealing System: Viton O-ring for environmental protection
- Weight: Approximately 280 grams with 7.0m cable
Measurement Performance
- Linear Range: 0.25 mm to 1.75 mm from target
- Recommended Gap: 1.0 mm (40 mils) from target surface
- Target Requirements: Minimum 8.9 mm diameter
- Optimal Target: 13 mm diameter or larger
- Field Wiring: Up to 305 meters with triad cable
- Output Signal: -1 to -13 Vdc proportional to gap
- Resolution: 0.25 mm increments over full range
Comparative Analysis
- Compared to 330903-00-03-05-11-05: Different case length and connector protection
- Compared to 330903-00-03-05-12-05: Shorter cable length and approval differences
Shipping & Logistics
- Global shipping via FedEx, UPS, and DHL
- Express delivery options available
- Real-time shipment tracking
- Customs documentation support
- Secure packaging for international transit
