Description

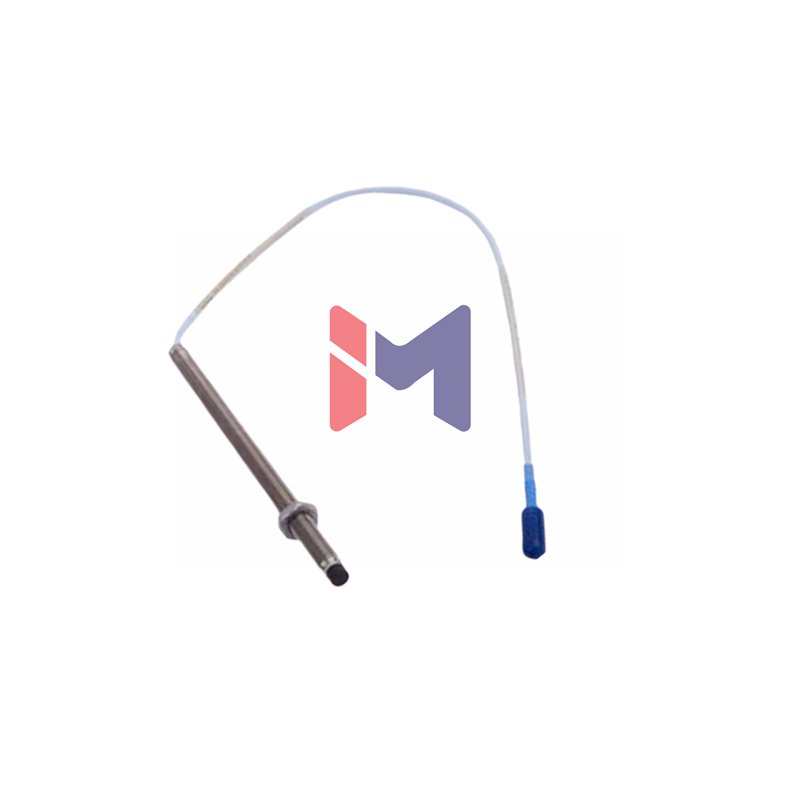

Bently Nevada 3300 NSv Proximity Probe: Advanced Vibration Monitoring
The Bently Nevada 3300 NSv Proximity Probe (Model 330903-00-02-70-11-00) represents the latest in vibration sensing technology. This probe offers superior performance in demanding industrial environments with its enhanced chemical resistance and precise measurement capabilities. The 20mm case length and 7.0-meter cable provide flexible installation options for various applications.
Product Identification
- Manufacturer: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Full Part Number: 330903-00-02-70-11-00
- Condition: New & Original in Factory Packing
- Warranty: 12 Months Factory Warranty
- Shipping: FedEx, UPS, DHL Available
Model Suffix Breakdown
- 330903 – Base Model (3300 NSv Probe, M8X1 thread, without armor)
- 00 – Unthreaded Length: 00 mm
- 02 – Overall Case Length: 20 mm
- 70 – Total Length: 7.0 meters (23.0 feet)
- 11 – Connector Type: Miniature coaxial ClickLoc with FluidLoc cable
- 00 – Agency Approval: Not required
Key Technical Specifications
- Measurement Range: 1.5 mm (60 mils) linear range
- Sensitivity: 7.87 V/mm (200 mV/mil) ±12.5%/-20%
- Frequency Response: 0 to 10 kHz (±3 dB)
- Linearity: ±0.06 mm (±2.3 mils) deviation from straight line
- DC Resistance: 5.9 ± 0.9 ohms (7.0 meter length)
- Temperature Range: -52°C to +177°C operational
- Cable Capacitance: 69.9 pF/m typical
- Minimum Target Size: 8.9 mm diameter
- Recommended Gap: 1.0 mm (40 mils)
Installation Requirements
- Mounting Torque: Finger tight to 0.56 N·m maximum
- Thread Engagement: 12 mm maximum for M8x1 thread
- Connector Torque: 5.1 N·m recommended (7.3 N·m max)
- Bend Radius: 25.4 mm minimum with or without armor
- Field Wiring: 305 meters maximum with shielded triad cable
- Cable Specification: 75Ω coaxial with FEP insulation
Ordering & Support
- Available for immediate shipment from stock
- Complete factory packaging with documentation
- Technical support available for installation guidance
- Worldwide shipping via FedEx, UPS, or DHL
Contact our sales team for pricing and delivery information: sales@plc-pioneer.com or +86 18150899927 (WhatsApp).
