Description

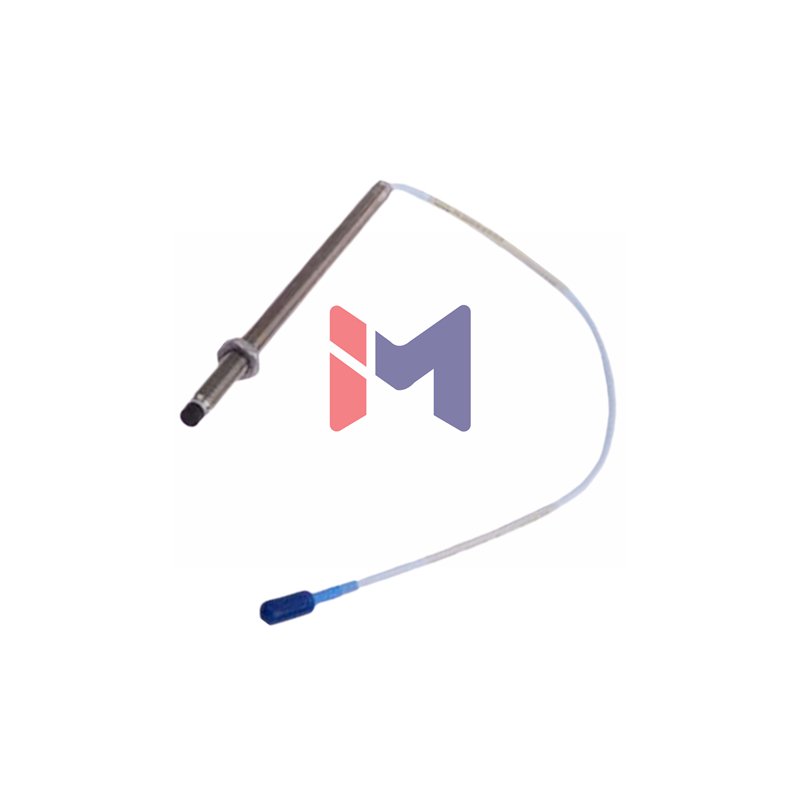

Discover the Bently Nevada 3300 NSv Proximity Probe
Experience exceptional precision with the Bently Nevada 3300 NSv Proximity Probe, designed for demanding industrial environments. This advanced vibration monitoring solution offers superior performance and reliability. The 330903-00-02-10-12-05 model features enhanced chemical resistance and comes factory fresh in original packaging.
Complete Product Identification
- Manufacturer: Bently Nevada
- Product Series: 3300 NSv Proximity Probes
- Full Model Number: 330903-00-02-10-12-05
Detailed Configuration Breakdown
- → Thread Type: M8X1 (Without Armor)
- → Unthreaded Length: 00 mm
- → Case Length: 20 mm
- → Cable Length: 1.0 meter (39 inches)
- → Connector: Miniature Coaxial ClickLoc
- → Cable Technology: FluidLoc
- → Agency Approval: Multiple Certifications
Technical Performance Data
- Measurement Range: 1.5 mm (60 mils) linear range
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linearity: ±0.06 mm deviation from straight line
- Frequency Response: 0-10 kHz (±3 dB)
- Temperature Range: -52°C to +177°C operational
- Probe Resistance: 4.2 Ω ± 0.5 at 20°C
- Cable Capacitance: 69.9 pF/m typical
- Minimum Target Size: 8.9 mm diameter
- Recommended Target: 13 mm diameter or larger
Installation Specifications
- Optimal gap setting: 1.0 mm from target surface
- Maximum thread engagement: 12 mm for M8x1
- Recommended torque: Finger tight plus 1/4 turn
- Absolute maximum torque: 0.56 N•m (5 in•lb)
- Minimum bend radius: 25.4 mm (1.0 inch)
- Maximum field wiring: 305 meters (1000 feet)
Expert FAQs
- Q: What makes the NSv probe better than previous models?
A: It offers improved chemical resistance and better side-view characteristics - Q: Can I use this probe with existing extension cables?
A: Yes, it maintains full compatibility with previous 3300 system cables - Q: What is the typical response time of this probe?
A: It provides instant response with 10 kHz frequency capability - Q: How does temperature affect probe performance?
A: Stable operation from -52°C to +177°C ensures reliable readings - Q: What maintenance does this probe require?
A: Virtually maintenance-free with periodic visual inspection recommended
