Description

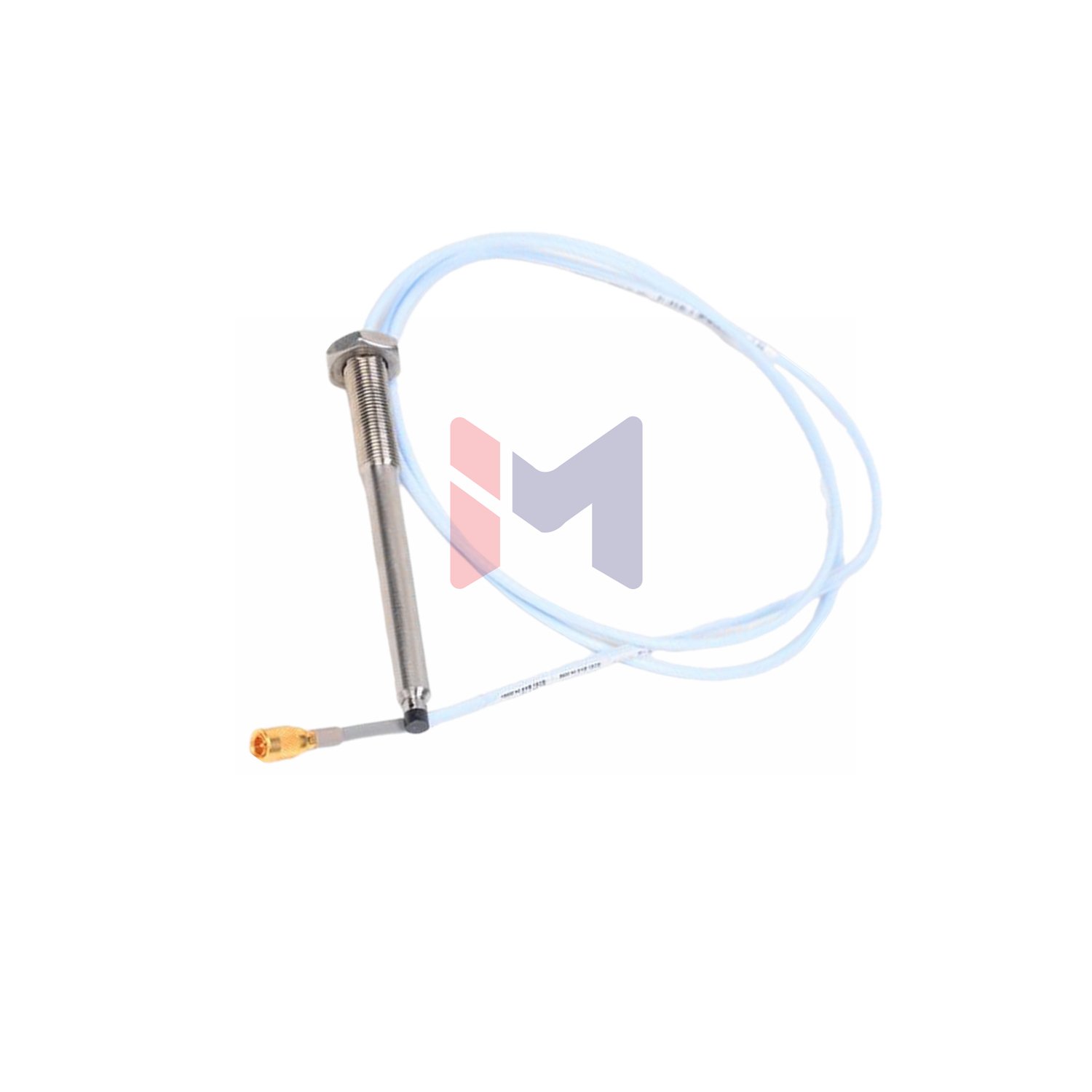

Bently Nevada 3300 NSv Proximity Probe – 330903-00-02-05-11-00
The Bently Nevada 3300 NSv Proximity Probe delivers high-performance vibration and position monitoring for critical machinery. It is ideal for demanding applications in compressors, turbines, and pumps. This 3300 NSv probe excels in harsh environments and provides reliable, accurate data.
Full Suffix Information
- Brand: Bently Nevada
- Model: 3300 NSv Proximity Probe
- Full Part Number: 330903-00-02-05-11-00
- -00- = 00 mm Unthreaded Length
- -02- = 20 mm Overall Case Length
- -05 = 0.5 meter (20″) Total Length
- -11 = Miniature Coaxial ClickLoc Connector with Protector, FluidLoc Cable
- -00 = Agency Approval Not Required
Technical Specifications
- Linear Range: 1.5 mm (60 mils), from 0.25 mm to 1.75 mm from target
- Recommended Gap Setting: 1.0 mm (40 mils)
- Incremental Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz (±3 dB)
- Deviation from Straight Line (Linearity): < ±0.06 mm (±2.3 mils)
- Probe DC Resistance: 4.0 Ω ± 0.5 Ω (for 0.5m length)
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Probe Tip Material: Polyphenylene Sulfide (PPS)
- Probe Case Material: AISI 304 Stainless Steel
- Minimum Target Size: 8.9 mm diameter (13 mm recommended)
Installation & Wiring
- Recommended Torque: Finger tight (Max: 0.56 N•m / 5 in•lb)
- Connector Torque: 5.1 N•m (45 in•lb) recommended
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Maximum Field Wiring Length: 305 meters (1000 feet)
Packaging & Delivery
- Condition: New & Original, in Factory Sealed Packaging
- Package Includes: One 3300 NSv Proximity Probe
- Shipping: Global delivery via FedEx, UPS, and DHL
FAQ
- Is this probe compatible with older Bently Nevada systems?
Yes, the 3300 NSv probe is fully compatible with previous 3300 RAM probe systems. - What is the advantage of the NSv probe?
It offers increased chemical resistance and better performance than older models. - What is the total length of this probe?
This model (330903-00-02-05-11-00) has a 0.5-meter cable.
