Description
Overview

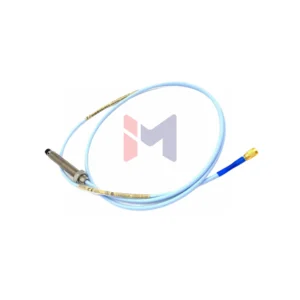

The Bently Nevada 3300XL 8mm Proximity Probe, model 330103-00-08-10-01-00, is a high-performance sensor designed for precise vibration and position monitoring in industrial machinery. Featuring a robust PPS (Polyphenylene Sulfide) tip and an AISI 303/304 stainless steel case, it ensures durability and reliability in demanding environments. With its Viton® O-ring seal and intrinsic safety certifications, this probe is ideal for hazardous areas and critical applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330103-00-08-10-01-00 |
| Probe Type | 3300XL 8mm Proximity Probe |
| Thread | M10x1, unthreaded length 00mm, overall case length 08mm |
| Cable Length | 1.0 meter (3.3 feet) |
| Connector | Miniature coaxial ClickLoc with protector |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Probe Case Material | AISI 303 or 304 Stainless Steel (SST) |
| DC Resistance | 7.59 ± 0.50 Ω at 1.0 meter |
| Linear Range | 0.25 to 2.3 mm (10 to 90 mils) |
| Recommended Gap Setting | -9 Vdc (1.27 mm or 50 mils) |
| Temperature Range | Standard: -52°C to +177°C (-62°F to +350°F) |
