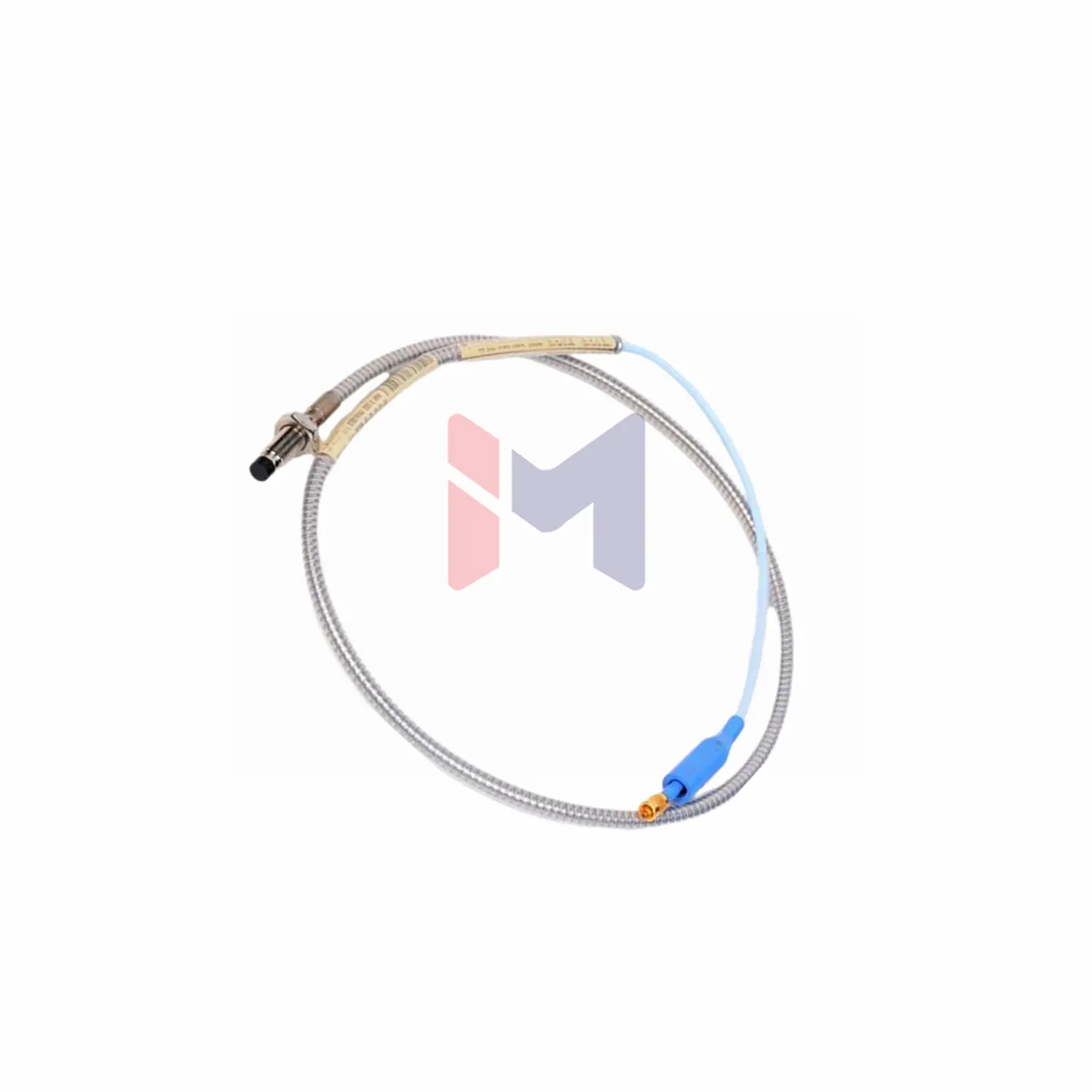

Bently Nevada – With Armor Proximity Probes 330104-05-11-90-11-CN

Description

Overview

The Bently Nevada 330104-05-11-90-11-CN represents the gold standard in industrial proximity sensing, combining precision engineering with rugged reliability. Designed and manufactured in the U.S.A., this 8mm vibration probe features a military-grade stainless steel construction with PPS tip material for exceptional durability in harsh operating environments. Its intelligent design includes a 5mm unthreaded section for optimal mounting flexibility and 11mm armored case length for superior mechanical protection.

Key Features

• FluidLoc™ cable with superior chemical resistance
• Viton® O-ring ensures IP67 protection when properly installed
• Country-specific certifications (CN option) for global compliance

Technical Specifications

• Part Number: 330104-05-11-90-11-CN
• Configuration:
  • 05: 5mm unthreaded length
  • 11: 11mm overall case length
  • 90: 9.0 meter cable (29.5 feet)
  • 11: ClickLoc connector with FluidLoc cable
  • CN: Country-specific approvals
• Electrical:
  • Resistance: 9.87Ω ±0.50 at 9m length
  • Operating Voltage: -17.5 to -26 VDC
• Mechanical:
  • Thread: M10×1 metric
  • Tip Material: PPS (Polyphenylene sulfide)
  • Seal: Viton® O-ring (20.5mm OD)

Environmental Ratings

• Temperature Range: -55°C to +232°C
• Vibration: Withstands 20g peak (10Hz-2kHz)
• Ingress Protection: IP67 when properly installed

System Performance

• Target Material: AISI 4140 steel (standard)
• Linearity: ±1% of full scale
• Frequency Response: 0-10kHz (-3dB)

Ordering Information

For specific country certification details and regional compliance information, please contact our sales team.

Contact: [email protected]
