Bently Nevada – With Armor 330104-14-19-10-11-00 Proximity Probes

Description

Industrial-Grade Vibration Monitoring

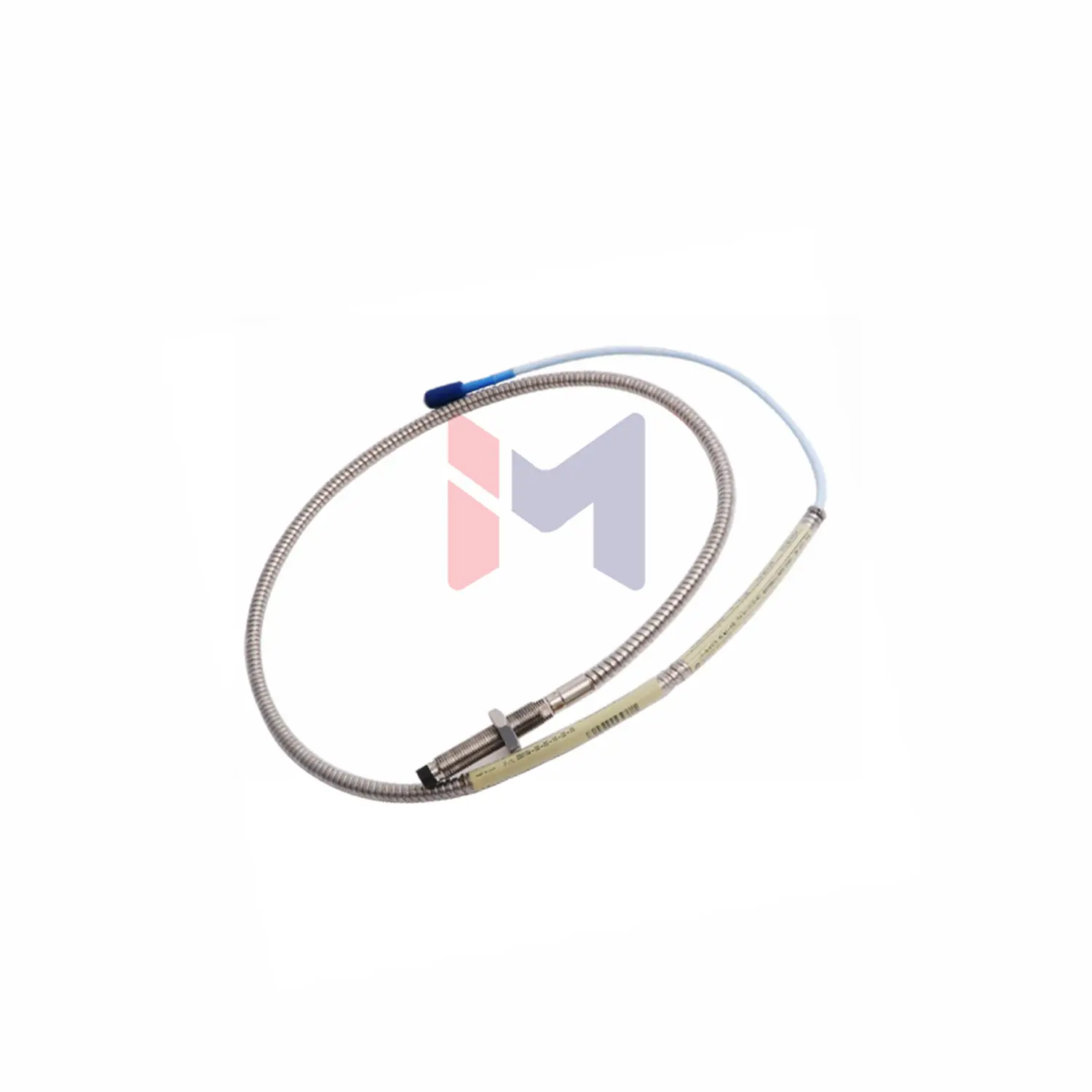

Engineered for precision machinery protection, the Bently Nevada 3300XL 8mm probe (330104-14-19-10-11-00) delivers reliable vibration data with its armored M10×1 threaded design. The extended 14mm unthreaded section and 19mm case length provide flexible installation options while maintaining measurement accuracy.

Key Features

• FluidLoc™ cable for harsh environment operation
• Viton® sealed for pressure differentials
• No agency certification required (00 option)

Technical Specifications

• Manufacturer: Bently Nevada (U.S.A.)
• Model: 3300XL 8mm Proximity Probe
• Part Number Breakdown (330104-14-19-10-11-00):
  • 330104: Base model
  • 14: 14mm unthreaded length
  • 19: 19mm overall case length
  • 10: 1.0m (3.3ft) cable
  • 11: FluidLoc cable with ClickLoc connector
  • 00: No agency approvals
• Environmental Ratings:
  • Standard operating range: +18°C to +27°C
  • Extended range: -55°C to +232°C (T1 rating)
  • Pressure rating: 50 bar (725 psi) differential
  • Vibration: 20g (10-2000Hz)
  • Shock: 50g (11ms half-sine)
• Measurement Performance:
  • Optimal gap: 1.27mm (50 mils)
  • Linear range: ±1.0mm from null
  • Frequency response: DC to 10kHz (-3dB)
  • Target material: AISI 4140 steel
  • Temperature coefficient: ±0.1%/°C
• Intrinsic Safety Ratings:
  • Class I, Zone 0: AEx/Ex ia IIC T1-T5 Ga
  • Class I, Zone 2: AEx/Ex nA IIC T1-T5 Gc
  • Division 2: Groups A-D (with barriers)

Ordering & Support

Contact [email protected] for technical specifications or volume pricing. Include complete part number 330104-14-19-10-11-00 in all inquiries.
