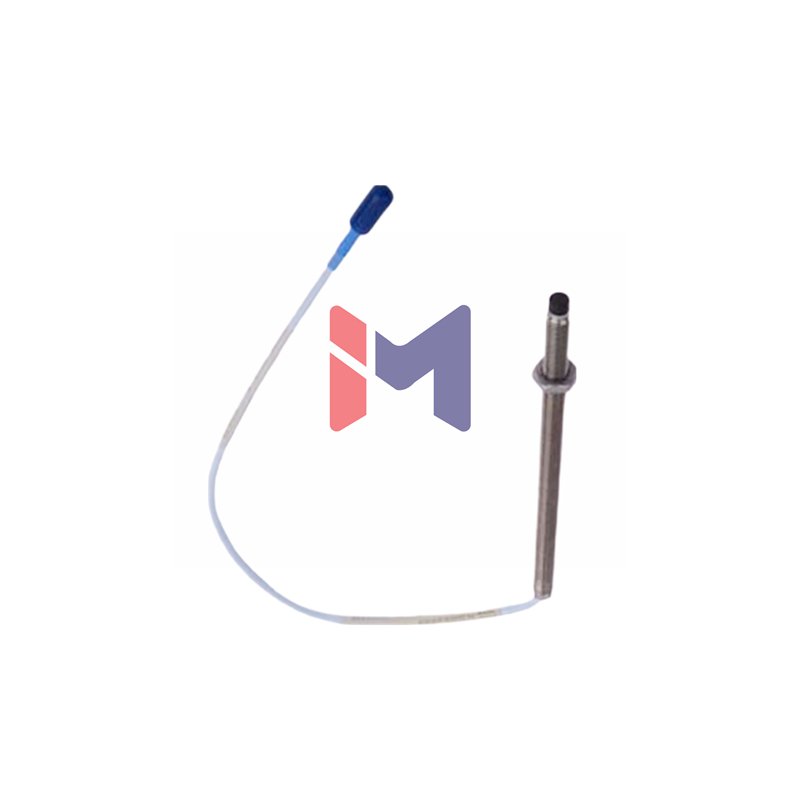

Bently Nevada 330905-05-10-10-02-00 3300 NSv Proximity Probe
The Bently Nevada 330905-05-10-10-02-00 sets new standards in vibration monitoring technology. This premium proximity probe delivers exceptional accuracy for industrial machinery protection. It offers superior performance in demanding operating conditions.
Complete Model Suffix Breakdown
- 330905 – 3300 NSv Probe, M10X1 thread, without armor
- -05 – 50 mm unthreaded length
- -10 – 100 mm overall case length
- -10 – 1.0 meter (39 in) total length
- -02 – Miniature coaxial ClickLoc connector, standard cable
- -00 – Agency approval not required
Technical Specifications
- Brand: Bently Nevada
- Model: 330905-05-10-10-02-00
- Series: 3300 NSv Proximity Probes
- Thread Type: M10X1
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap Setting: 1.0 mm (40 mils)
- Incremental Scale Factor: 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz: +0, -3 dB typical
- Probe DC Resistance: 4.2 ± 0.5 ohms (1.0 meter length)
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Storage Temperature: -52°C to +177°C (-62°F to +351°F)
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Probe Case Material: AISI 304 stainless steel
- Minimum Target Size: 8.9 mm (0.35 in) diameter
- Recommended Target Size: 13 mm (0.5 in) diameter
- Maximum Torque: 0.56 N•m (5 in•lb)
- Minimum Bend Radius: 25.4 mm (1.0 in)
Cable Specifications
- Cable Type: 75 Ω coaxial with FEP insulation
- Center Conductor Resistance: 0.220 Ω/m (0.067 Ω/ft)
- Shield Resistance: 0.066 Ω/m (0.020 Ω/ft)
- Cable Capacitance: 69.9 pF/m (21.3 pF/ft) typical
- Field Wiring: 0.2 to 1.5 mm² (16 to 24 AWG)
- Maximum Field Wiring Length: 305 meters (1,000 feet)
