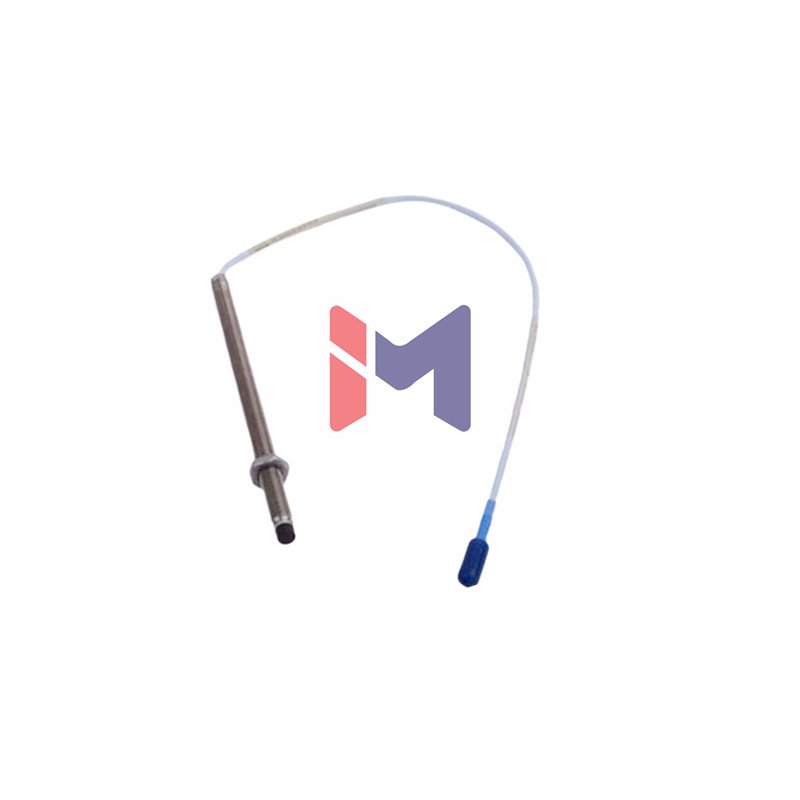

Introducing the Bently Nevada 330905-05-08-05-02-00 NSv Proximity Probe
Product Identification
- Manufacturer: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Full Part Number: 330905-05-08-05-02-00
- Configuration Breakdown:
- Base Number: 330905 (3300 NSv Probe, M10X1 thread)
- Unthreaded Length: -05- (50 mm)
- Case Length: -08- (80 mm)
- Cable Length: -05- (0.5 meter)
- Connector: -02- (Miniature coaxial ClickLoc)
- Agency Approval: -00- (Not required)
- Condition: New & Original in Factory Packaging
- Warranty: 12 Months Manufacturer Warranty
- Shipping: FedEx, UPS, DHL Available
Technical Specifications
- Electrical Characteristics:
- DC Resistance: 4.0 ± 0.5 Ω (0.5 m cable)
- Cable Capacitance: 69.9 pF/m typical
- Impedance: 75 Ω coaxial design
- Performance Metrics:
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linearity: ±0.06 mm deviation from best fit straight line
- Frequency Response: 0 to 10 kHz (±3 dB)
- Mechanical Properties:
- Thread Size: M10x1
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Maximum Torque: 0.56 N•m (5 in•lb)
- Minimum Bend Radius: 25.4 mm (1.0 in)
- Environmental Ratings:
- Operating Temperature: -52°C to +177°C
- Storage Temperature: -52°C to +177°C
- Sealing: Viton O-ring for differential pressure
Packaging Information
- Factory original packaging
- Complete with connector protector
- 0.5 meter integrated cable
- Shipping via FedEx, UPS, or DHL
Alternative Models
- 330905-05-08-05-01-05 – Different connector/approval configuration
- 330905-05-25-10-01-00 – Longer case and cable options
