Description

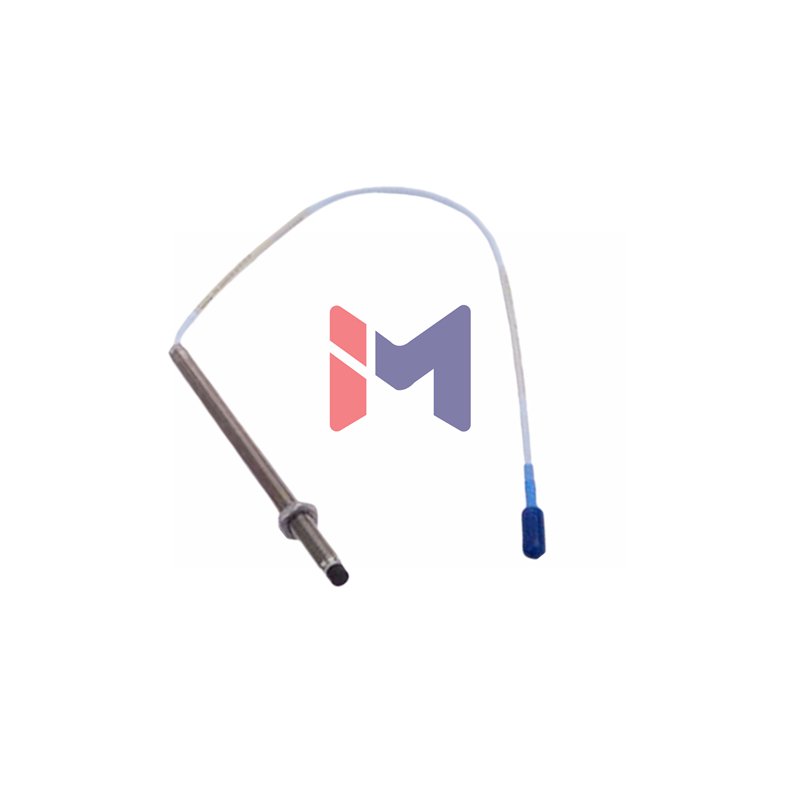

Bently Nevada 3300 NSv Proximity Probe
The Bently Nevada 3300 NSv Proximity Probe delivers high-performance vibration and position measurement. It is designed for industrial machinery like compressors and turbines. This probe is new and original. It comes in factory packaging with a 12-month warranty. The 3300 NSv offers superior chemical resistance and improved side-view characteristics.
Technical Specifications
- Brand: Bently Nevada
- Model: 330905-00-08-05-12-00
- Complete Suffix Details:
- 00: Unthreaded Length = 0 mm
- 08: Case Length = 80 mm
- 05: Cable Length = 0.5 m (20 in)
- 12: Miniature Coaxial ClickLoc Connector, FluidLoc Cable
- 00: Agency Approval Not Required
- Measurement Range: 1.5 mm (60 mils)
- Frequency Response: 0 to 10 kHz
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linearity: Better than ±0.06 mm (±2.3 mils)
- Temperature Range: -52°C to +177°C
- Environmental Resistance: Chemical-resistant PPS tip, 304 SST case
- EMI Shielding: Coaxial design with shield
Installation Guide
- Use M10x1 threaded mount
- Recommended torque: 7.5 N·m (66 in·lb)
- Maximum torque: 22.6 N·m (200 in·lb)
- Minimum bend radius: 25.4 mm (1 in)
- Set gap to 1.0 mm (40 mils)
Compatibility Note
The 3300 NSv probe is compatible with previous 3300 RAM probes and extension cables. It works with standard Bently Nevada monitors.
Diagnostics & FAQ
- Q: What cable lengths are available?
A: 0.5 m, 1 m, 5 m, and 7 m. - Q: Is the probe pressure-sealed?
A: Yes, with Viton O-ring. Not tested before shipment. - Q: Can it be used on small shafts?
A: Yes, but scale factor may change below 13 mm diameter.
