Description

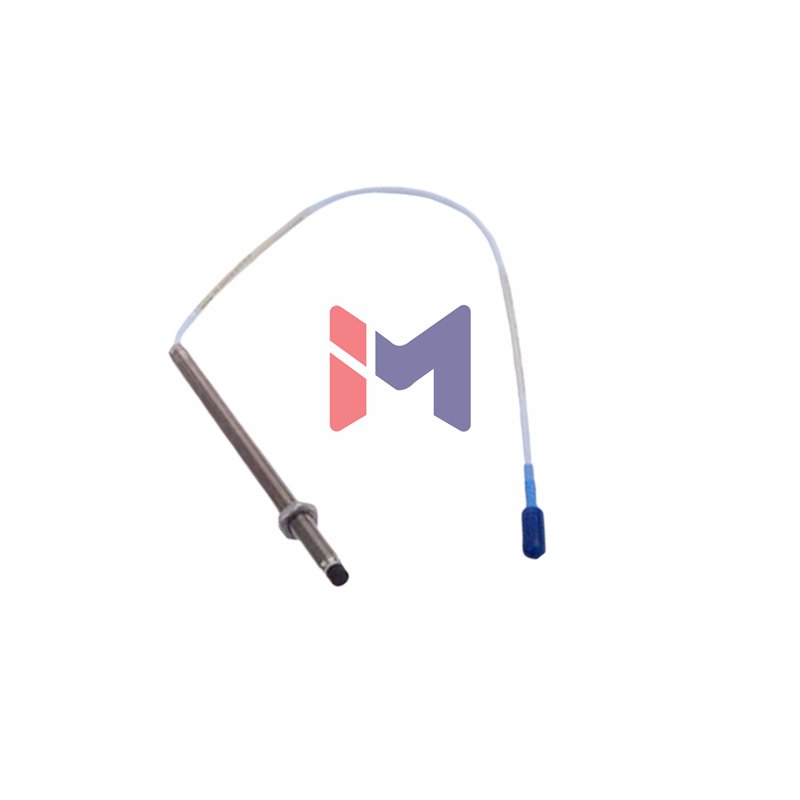

Bently Nevada 3300 NSv Proximity Probe
The Bently Nevada 330905-00-03-10-02-CN proximity probe represents the pinnacle of industrial vibration sensing technology. This advanced probe combines superior chemical resistance with enhanced measurement stability, making it ideal for critical applications in process compressors and other heavy machinery.
Model Number Breakdown
- ▸ Brand: Bently Nevada
- ▸ Core Model: 3300 NSv Probe
- ▸ Base Part Number: 330905
- ▸ -00-: Unthreaded Length = 00 mm
- ▸ -03-: Overall Case Length = 30 mm
- ▸ -10-: Cable Length = 1.0 meter
- ▸ -02-: Connector = Miniature Coaxial ClickLoc
- ▸ -CN: Approval = Country Specific
Comprehensive Technical Specifications
- Manufacturer: Bently Nevada
- Model: 3300 NSv
- Linear Measurement Range: 1.5 mm (60 mils)
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity (Scale Factor): 7.87 V/mm (200 mV/mil)
- Non-Linearity: < ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz (±3 dB)
- Electrical Resistance: 4.2 Ω ± 0.5 (1m cable)
- Temperature Range: -52°C to +177°C
- Minimum Target Diameter: 8.9 mm (0.35″)
- Case Material: AISI 304 Stainless Steel
- Tip Material: PPS (Polyphenylene Sulfide)
- Connector Type: ClickLoc Coaxial
- Maximum Torque: 0.56 N•m (5 in-lb)
