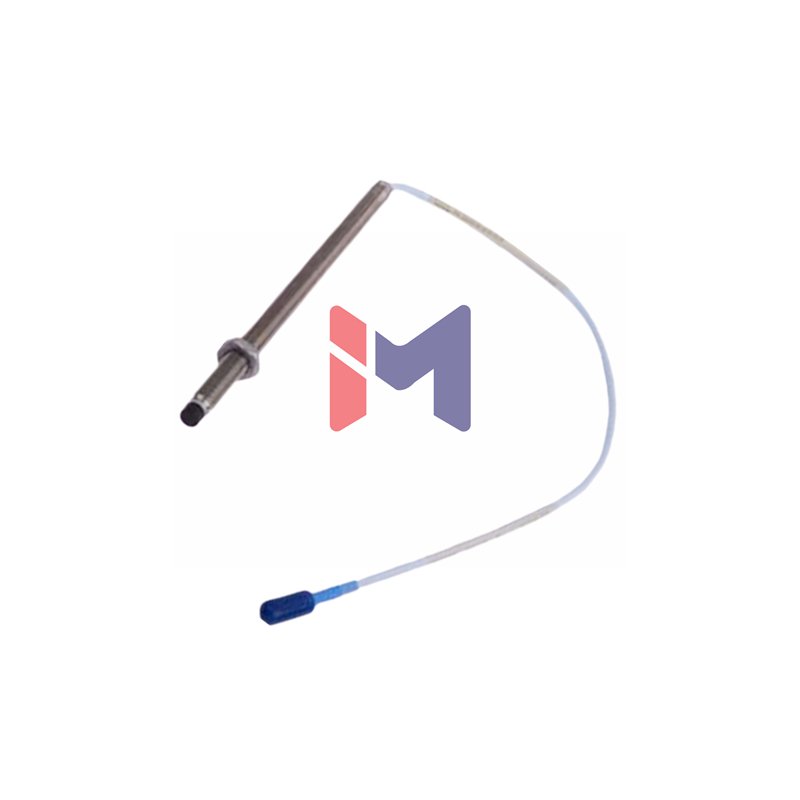

Bently Nevada 330904-05-14-05-02-05: Armored Precision for Harsh Environments
Meet the 330904-05-14-05-02-05 from Bently Nevada‘s renowned 3300 NSv series. This armored proximity probe delivers exceptional reliability in demanding industrial settings. Its stainless steel armor and advanced design provide superior protection and performance. Engineers trust this sensor for critical vibration monitoring applications worldwide.
Complete Product Configuration
- Base Model: 330904 (3300 NSv Probe with M8X1 Thread & Armor)
- Unthreaded Section: -05- (50 mm length)
- Case Dimensions: -14- (140 mm overall length)
- Cable Length: 05 (0.5 meter / 20 inches)
- Connection Type: 02 (Miniature coaxial ClickLoc connector)
- Certification: 05 (Multiple agency approvals)
Technical Performance Specifications
- Electrical Resistance: 4.0 ± 0.5 ohms (center to outer conductor)
- Measurement Range: 1.5 mm linear range (0.25 to 1.75 mm from target)
- Frequency Response: 0 to 10 kHz (±3 dB) with 305m field wiring
- Scale Factor: 7.87 V/mm (200 mV/mil) with ±12.5%/-20% tolerance
- Linear Accuracy: Better than ±0.06 mm deviation from straight line
- Target Requirements: Minimum 8.9 mm, recommended 13 mm diameter
- Cable Specifications: 75 ohm coaxial with FEP insulation material
- Bend Radius: Minimum 25.4 mm bending radius for cable protection
- Installation Torque: Maximum 0.56 N•m (5 in•lb) for safe mounting
- Thread Engagement: Maximum 12 mm thread engagement depth
Environmental Durability Features
- Case Material: AISI 304 stainless steel construction
- Tip Material: Polyphenylene sulfide (PPS) for chemical resistance
- Sealing System: Viton O-ring provides reliable pressure sealing
- Armor Protection: Added stainless steel armor for impact resistance
- Temperature Stability: Consistent performance across extreme temperatures
Shipping & Packaging Information
- Factory original packaging ensures product integrity
- Fast worldwide shipping via FedEx, UPS, and DHL carriers
- Complete unit includes probe, cable, and connector assembly
- Ready for immediate installation upon delivery
Contact our technical experts at sales@plc-pioneer.com or +86 18150899927 for application support.
