Description

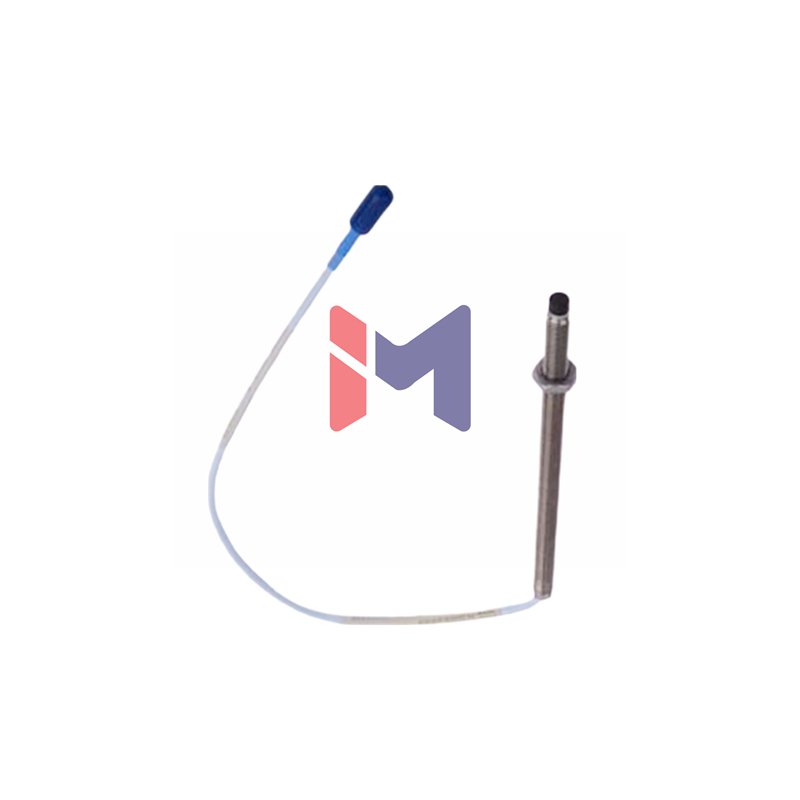

Premium Armored Solution: Bently Nevada 330904-02-20-05-01-00
Discover the rugged reliability of the Bently Nevada 3300 NSv proximity probe with full stainless steel armor. This model 330904-02-20-05-01-00 offers exceptional protection in harsh industrial environments. The armored casing ensures maximum durability while maintaining precise measurement capabilities. Need immediate assistance? Contact sales@plc-pioneer.com or +86 18150899927.
Model Configuration Analysis
Complete Part Number Breakdown:
- 330904 – 3300 NSv Probe, M8x1 thread, with armor
- -02- – Unthreaded Length: 20 mm
- -20- – Overall Case Length: 200 mm
- 05 – Total Length: 0.5 meter (20 inches)
- 01 – Connector: Miniature coaxial ClickLoc with standard cable
- 00 – Agency Approval: Not required
Critical Performance Specifications
- DC Probe Resistance: 4.0 ± 0.5 ohms for 0.5 meter length
- Linear Measurement Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm
- Voltage Output Range: Approximately -1 to -13 Vdc across linear range
- Scale Factor: 7.87 V/mm (200 mV/mil) with +12.5%/-20% tolerance
- Non-Linearity: Less than ±0.06 mm (±2.3 mils) deviation
- Frequency Response: 0 to 10 kHz (±3 dB) with 305m field wiring
- Temperature Range: -52°C to +177°C operational and storage
- Cable Capacitance: 69.9 pF/m typical for accurate signal transmission
Installation & Mounting Guide
- Recommended Gap: Set at 1.0 mm (40 mils) from target surface
- Mounting Torque: Finger tight to maximum 0.56 N•m (5 in•lb)
- Connector Torque: 5.1 N•m (45 in•lb) recommended for M8x1 cases
- Thread Engagement: Maximum 12 mm for proper installation
- Cable Bend Radius: Minimum 25.4 mm (1.0 inch) required
- Target Size: Minimum 13 mm diameter for accurate readings
Shipping & Package Contents
- Product Condition: New and original from Bently Nevada
- Packaging: Factory sealed with all protective materials
- Shipping Methods: FedEx, UPS, DHL with global coverage
- Delivery Time: Express options available for urgent requirements
- Package Includes: Probe unit with connector protector
