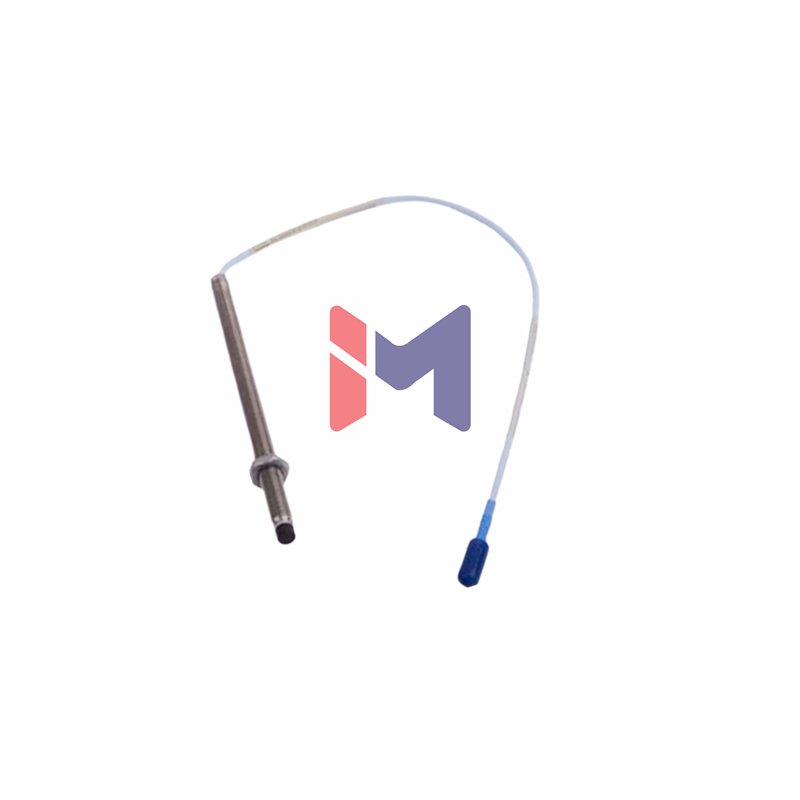

Product Introduction: Bently Nevada 330904-02-10-70-01-00 NSv Proximity Probe
Upgrade your machinery monitoring with the new Bently Nevada 3300 NSv Proximity Probe. This premium sensor offers superior performance for critical vibration and position measurement. The model 330904-02-10-70-01-00 delivers enhanced chemical resistance and reliable operation in demanding environments. It provides a direct, interchangeable upgrade for previous 3300 RAM probes. Ensure your systems run with precision and durability.
For detailed specifications, download the datasheet here: 3300 XL NSv Proximity Transducer System Datasheet
Complete Model Suffix Breakdown
- Base Model: 330904 – 3300 NSv Probe with Armor
- -02-: 20 mm Unthreaded Length
- -10-: 100 mm Overall Case Length
- -70-: 7.0 Meter Total Cable Length
- -01-: Miniature Coaxial ClickLoc Connector
- -00-: No Agency Approval
Detailed Technical Specifications
- Brand: Bently Nevada
- Model: 330904-02-10-70-01-00
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap Setting: 1.0 mm (40 mils)
- Incremental Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz
- Probe DC Resistance: 5.9 ± 0.9 ohms (for 7.0m length)
- Probe Tip Material: Polyphenylene Sulfide (PPS)
- Probe Case Material: AISI 304 Stainless Steel
- Connector Type: Miniature Coaxial ClickLoc
- Cable Type: 75 Ω Coaxial with FEP Insulation
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
Installation Guidelines
- Use a recommended gap setting of 1.0 mm (40 mils) from the target.
- Hand-tighten the probe; the maximum torque is 0.56 N•m (5 in•lb).
- Ensure the target is a minimum of 13 mm (0.5 in) in diameter for accurate measurement.
- Maintain a minimum bend radius of 25.4 mm (1.0 in) for the probe cable.
- For connector attachment, use a torque of 5.1 N•m (45 in•lb).
Packaging & Shipping
- Condition: New and Original, in factory-sealed packaging.
- Packaging List:
- One Bently Nevada 3300 NSv Proximity Probe.
- Connector protector.
- All necessary factory documentation.
- Shipping: We ship globally via FedEx, UPS, and DHL.
Frequently Asked Questions (FAQ)
- Is this probe compatible with my existing 3300 RAM system?
Yes, the 3300 NSv probe is mechanically and electrically compatible with the 3300 RAM system.
- What is the main improvement over the older 3300 RAM probe?
The 3300 NSv probe features significantly increased chemical resistance for tougher applications.
- What is the total length of this specific probe model?
This model, 330904-02-10-70-01-00, has a total cable length of 7.0 meters (23.0 feet).
