Description

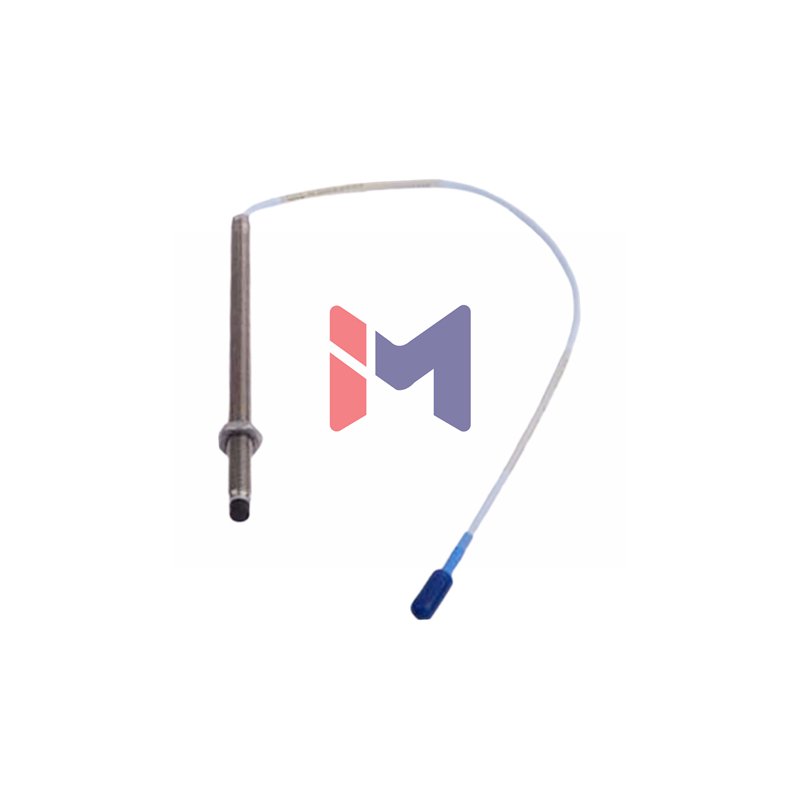

Advanced Bently Nevada 3300 NSv Proximity Probe 330904-00-15-05-11-05 with FluidLoc Technology
Experience superior machinery protection with the industrial-grade 3300 NSv proximity probe system. This advanced sensor features FluidLoc cable technology for enhanced environmental resistance. Download the complete technical specifications here: 3300 XL NSv Proximity Transducer System Datasheet.
Product Overview
- Brand: Bently Nevada
- Model: 3300 NSv Proximity Probe
- Complete Part Number: 330904-00-15-05-11-05
- Condition: Factory new and original in sealed packaging
- Advanced FluidLoc cable for superior environmental protection
- Enhanced chemical resistance for demanding process applications
- Fully compatible with existing 3300 RAM probe systems
Complete Configuration Breakdown
- Base Model: 330904 (3300 NSv Probe, M8X1 thread, armored)
- Unthreaded Length: -00- (00 mm configuration)
- Case Length: -15- (150 mm overall length)
- Cable Length: -05- (0.5 meter / 20 inches total)
- Connector Type: -11- (Miniature coaxial ClickLoc with protector, FluidLoc cable)
- Certification: -05- (Multiple agency approvals)
Technical Specifications
- Probe DC Resistance: 4.0 ± 0.5 ohms for 0.5 meter length
- Measurement Range: 1.5 mm linear range (0.25 to 1.75 mm from target)
- Optimal Gap Setting: 1.0 mm (40 mils) for standard operation
- Sensitivity: 7.87 V/mm (200 mV/mil) with interchangeability tolerance
- Frequency Response: 0 to 10 kHz with 305 meter field wiring capability
- Linearity: Less than ±0.06 mm deviation from straight line
- Temperature Range: -52°C to +177°C operation and storage
- Target Requirements: Minimum 8.9 mm, recommended 13 mm diameter
- Probe Material: PPS tip with 304 stainless steel case
- Cable Construction: 75 Ω coaxial with FEP insulation and FluidLoc protection
Installation Guidelines
- Install probe finger tight without excessive torque
- Maximum installation torque: 0.56 N•m (5 in•lb)
- Maintain minimum 25.4 mm bend radius for cable protection
- Maximum 12 mm thread engagement for M8x1 installation
- Use 0.2 to 1.5 mm² field wiring for optimal performance
- Maximum 305 meters field wiring between sensor and monitor
Packaging & Shipping
- Factory sealed original packaging with all components
- Global shipping via FedEx, UPS, and DHL carriers
- Fast processing and reliable delivery worldwide
Frequently Asked Questions
- What is FluidLoc cable technology?
- FluidLoc provides enhanced environmental protection against fluids and contaminants
- How does this model differ from standard 3300 NSv probes?
- This 330904-00-15-05-11-05 features connector protector and FluidLoc cable for harsh environments
- Is this probe suitable for process compressor applications?
- Yes, the 3300 NSv offers increased chemical resistance ideal for process compressors
