Description
Premium Industrial Vibration Monitoring Solution

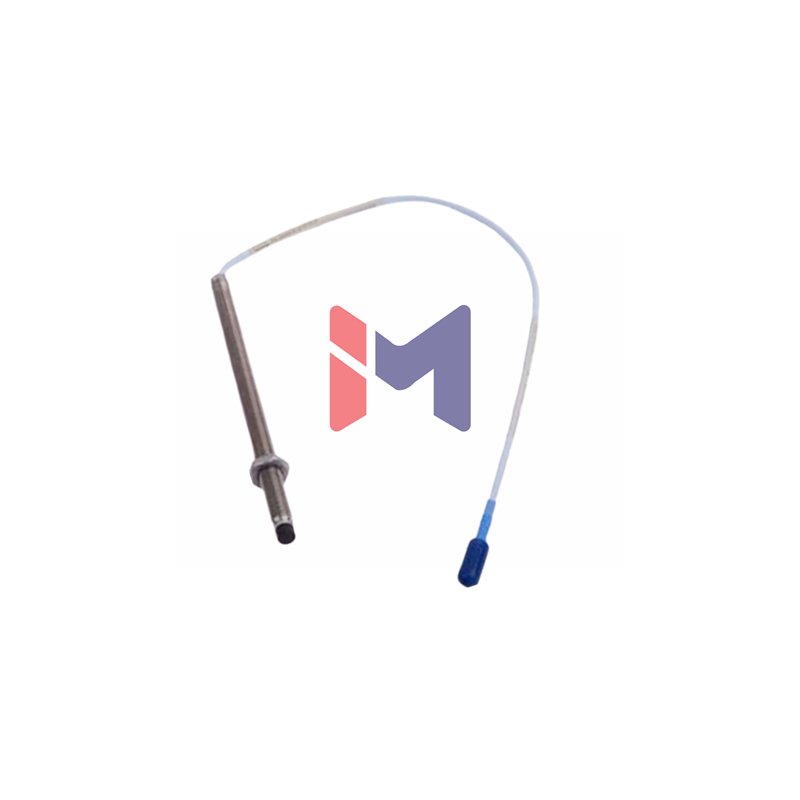

The Bently Nevada 3300 NSv proximity probe sets new standards in machinery protection. This specific configuration 330904-00-10-05-01-05 features extended 100mm casing with full armor protection. It delivers exceptional performance in demanding industrial environments where reliability matters most.
Complete Product Identification Breakdown
Understanding your probe’s complete specification:
- Base Model: 330904 – Armored NSv Probe with M8X1 Thread
- Variant 1: 00 – Zero Millimeter Unthreaded Section
- Variant 2: 10 – One Hundred Millimeter Overall Case Length
- Variant 3: 05 – Half Meter Total Probe Cable Length
- Variant 4: 01 – ClickLoc Connector with Protective Cover
- Variant 5: 05 – Multiple International Agency Approvals
Critical Performance Parameters
- Electrical Resistance: 4.0 ± 0.5 ohms DC at 20°C ambient temperature
- Measurement Span: 1.5 millimeter linear operating range
- Voltage Output: -1 to -13 VDC corresponding to gap changes
- System Sensitivity: 7.87 volts per millimeter scale factor
- Accuracy Specification: Better than ±0.06 mm linearity error
- Bandwidth Performance: 10 kHz frequency response capability
- Impedance Matching: 75 ohm characteristic coaxial cable
- Temperature Operating Range: -52°C to +177°C full specification
Installation & Mechanical Requirements
- Mounting Thread: M8 x 1.0 metric fine thread specification
- Maximum Engagement: 12 millimeter thread insertion depth
- Installation Torque: Finger tight plus quarter turn maximum
- Connector Torque: 5.1 Newton meters recommended value
- Cable Protection: 25.4 millimeter minimum bending radius
- Optimal Positioning: 1.0 millimeter gap from target surface
- Target Specification: Minimum 13 millimeter diameter recommended
- Material Construction: 304 stainless steel with PPS tip material
Ordering & Technical Support Information
For immediate pricing and delivery of 330904-00-10-05-01-05:
- Technical Sales: sales@plc-pioneer.com
- Phone/WhatsApp: +86 18150899927
