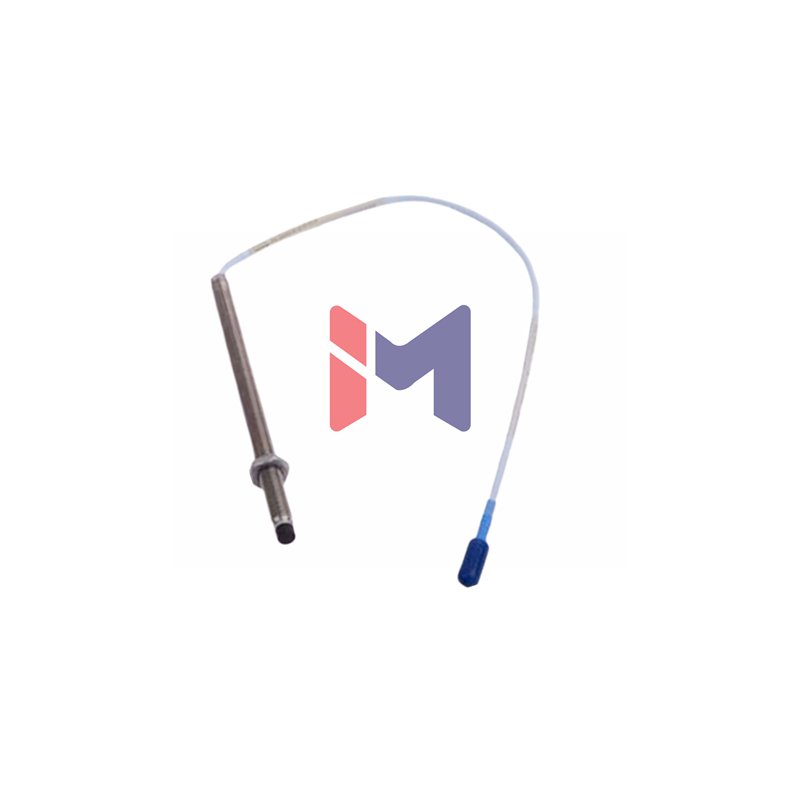

Bently Nevada 330903-02-16-05-02-00 NSv Proximity Probe

Core Electrical Specifications

• DC Resistance: 4.0 ± 0.5 Ω (0.5m length)
• Linear Range: 1.5 mm (60 mils)
• Scale Factor: 7.87 V/mm (200 mV/mil)
• Frequency Response: 0 to 10 kHz (±3 dB)
• Output Range: -1 to -13 Vdc
• Linearity Deviation: < ±0.06 mm (±2.3 mils)

Mechanical Specifications

• Case Material: AISI 304 Stainless Steel
• Tip Material: Polyphenylene Sulfide (PPS)
• Unthreaded Length: 20 mm
• Case Length: 160 mm
• Thread Engagement: Maximum 12 mm
• Recommended Torque: Finger tight (Max 0.56 N•m)
• Connector Torque: 5.1 N•m recommended (7.3 N•m max)

Environmental Specifications

• Operating Temperature: -52°C to +177°C
• Storage Temperature: -52°C to +177°C
• Minimum Bend Radius: 25.4 mm (1.0 in)
• Sealing: Viton O-ring for pressure differential
• Cable Type: 75 Ω coaxial with FEP insulation

Part Number Breakdown

• 330903 – Base part number for M8X1 thread probe
• -02 – 20 mm unthreaded length
• -16 – 160 mm overall case length
• -05 – 0.5 meter cable length
• -02 – Miniature coaxial ClickLoc connector
• -00 – No agency approval required

Shipping & Service Details

• Shipping Methods: FedEx, UPS, DHL Express
• Packaging: Factory original sealed packaging
• Condition: New & unused with full documentation
• Warranty: 12 months manufacturer warranty
• Lead Time: Typically ships within 24-48 hours
