Description

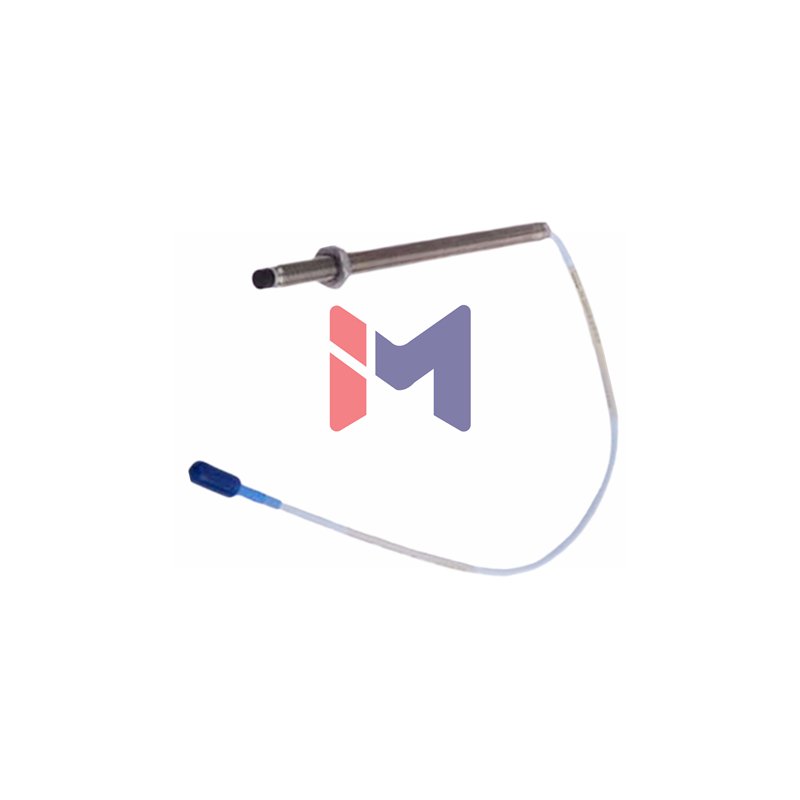

Bently Nevada 330903-00-05-70-12-00: Maximum Performance Probe
The Bently Nevada 3300 NSv proximity probe represents the ultimate in precision measurement technology. This premium configuration 330903-00-05-70-12-00 combines maximum case length with advanced FluidLoc protection. It delivers exceptional performance in the most challenging industrial environments.
Configuration Breakdown
- Base Model: 330903 (3300 NSv Probe, M8X1)
- Unthreaded Section: 00 (0 mm length)
- Case Dimension: 05 (50 mm total length)
- Cable Specification: 70 (7.0 meters / 23.0 feet)
- Connection System: 12 (ClickLoc with FluidLoc cable)
- Certification Status: 00 (No agency approvals required)
Technical Excellence
- Maximum Case Length: 50 mm for deep mounting applications
- Extended Reach: 7.0 meter integrated cable length
- Electrical Performance: 5.9 ± 0.9 ohms resistance
- Measurement Range: 1.5 mm linear operating range
- Sensitivity: 7.87 V/mm (200 mV/mil) output
- Precision: ±0.06 mm maximum linearity deviation
- Bandwidth: 10 kHz frequency response capability
Installation Specifications
- Optimal Sensing Distance: 1.0 mm from target surface
- Target Requirements: Minimum 8.9mm diameter surface
- Mounting Torque: 5.1 N•m maximum recommended value
- Connection Handling: 0.56 N•m connector torque limit
- Cable Management: 25.4 mm minimum bend radius
- System Integration: 305 meter maximum field wiring
- Thread Engagement: 12 mm maximum for M8x1 threads
Environmental Performance
- Temperature Range: -52°C to +177°C operational capability
- Sealing System: Viton O-ring for pressure differential sealing
- Material Construction: AISI 304 stainless steel case
- Tip Material: Chemical-resistant PPS construction
- Cable Insulation: FEP insulated for maximum durability
- Environmental Protection: FluidLoc cable for wet environments
Expert Technical Support
- What advantages does the FluidLoc cable provide?
It offers superior protection against moisture, oils, and chemical fluids in wet environments. - How does the 50mm case length benefit installations?
The extended length allows deeper mounting in thick machinery housings and structures. - Can this probe handle extreme temperature variations?
Yes, it maintains stable performance across a wide -52°C to +177°C temperature range. - What makes this model suitable for compressor applications?
Its chemical resistance and FluidLoc cable are ideal for process compressor environments. - How does the extended cable affect signal quality?
The probe maintains excellent signal integrity across the entire 7-meter cable length.
