Description

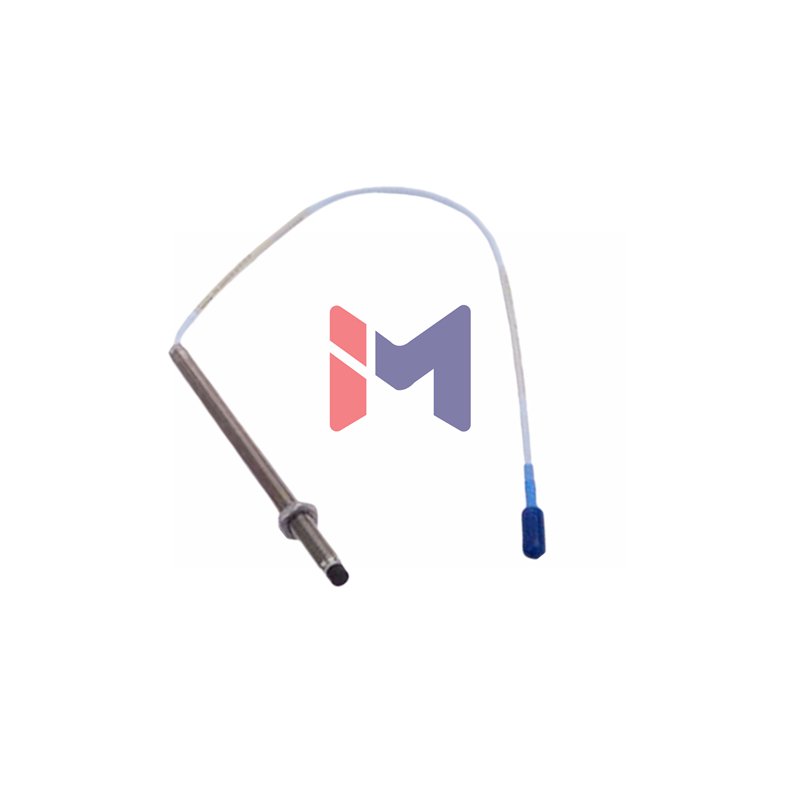

Bently Nevada 330903-00-05-70-02-05 NSv Proximity Probe
Experience superior machinery monitoring with the 3300 NSv Proximity Probe from Bently Nevada. This specific configuration 330903-00-05-70-02-05 features a 50mm case length and standard cable, offering reliable performance for critical industrial applications.
Product Identification
- Manufacturer: Bently Nevada
- Product Series: 3300 NSv Proximity Probes
- Condition: New & Original, Factory Sealed
- Warranty: 12 Months
Detailed Part Number Breakdown
- 330903 – Base Model: 3300 NSv Probe, M8X1 thread, no armor
- 00 – Unthreaded Length: 0 mm
- 05 – Overall Case Length: 50 mm
- 70 – Total Cable Length: 7.0 meters (23.0 feet)
- 02 – Connector: Miniature coaxial ClickLoc, standard cable
- 05 – Agency Approvals: Multiple Certifications
Core Technical Specifications
- Electrical Resistance: 5.9 Ω ± 0.9 Ω (7.0m length)
- Linear Measurement Range: 1.5 mm (60 mils)
- Sensitivity (Scale Factor): 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz (±3 dB)
- Linearity (DSL): Better than ±0.06 mm (±2.3 mils)
- Operating Temperature: -52°C to +177°C
- Cable Impedance: 75 Ω coaxial design
- Minimum Bend Radius: 25.4 mm (1.0 inch)
Installation Guidelines
- Recommended gap setting: 1.0 mm (40 mils) from target
- Maximum thread engagement: 12 mm for M8x1 thread
- Recommended torque: 5.1 N•m (45 in•lb)
- Minimum target diameter: 13 mm (0.5 inches) for optimal accuracy
- Maximum field wiring distance: 305 meters (1000 feet)
Shipping & Delivery Information
- All items shipped in original factory packaging
- Global shipping via FedEx, UPS, and DHL
- Express delivery options available
- Real-time tracking provided for all shipments
Technical Performance Data
- Probe Capacitance: Typically 69.9 pF/m (21.3 pF/ft)
- Extension Cable Resistance: Center conductor 0.220 Ω/m, Shield 0.066 Ω/m
- Output Voltage Range: Approximately -1 to -13 Vdc over linear range
- Scale Factor Tolerance: +12.5%/-20% including interchangeability
- Pressure Rating: Designed for differential pressure sealing (not tested)
Get Complete Technical Documentation
Download the full datasheet for detailed specifications and application guidelines for the 3300 XL NSv Proximity Transducer System. Download Datasheet PDF
