Description
Overview

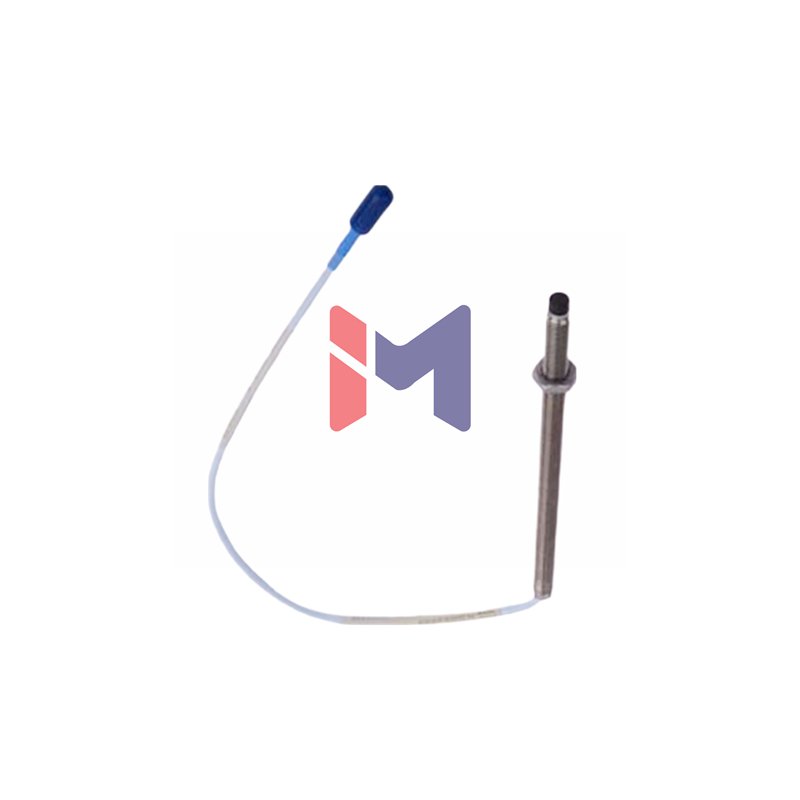

Bently Nevada 3300 NSv Proximity Probe combines extended reach with robust construction for demanding industrial applications. This premium vibration sensor features a 50mm case and 7.0-meter cable for maximum installation flexibility. The probe delivers exceptional performance in critical machinery monitoring systems.
Product Overview & Identification
- Brand: Bently Nevada
- Model Series: 3300 NSv Proximity Probes
- Complete Part Number: 330903-00-05-70-02-00
- Condition: New & Original Factory Packaging
Configuration Breakdown
- Base Model: 330903 (M8x1 thread, without armor)
- Option -00-: Unthreaded Length = 00 mm
- Option -05-: Overall Case Length = 50 mm
- Option 70: Total Cable Length = 7.0 meters (23.0 feet)
- Option 02: Standard Miniature Coaxial ClickLoc Connector
- Option 00: Agency Approval Not Required
Technical Specifications
- Electrical Characteristics:
- DC Resistance: 5.9 Ω ± 0.9 Ω at 20°C
- Cable Capacitance: 69.9 pF/m typical
- Center Conductor: 0.220 Ω/m resistance
- Shield Resistance: 0.066 Ω/m
- Impedance: 75 Ohm coaxial design
- Performance Metrics:
- Linear Range: 1.5 mm (60 mils)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Non-Linearity: < ±0.06 mm (±2.3 mils)
- Frequency Response: 0-10 kHz (±3 dB)
- Recommended Gap: 1.0 mm (40 mils)
- Mechanical Properties:
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Sealing: Viton O-ring for pressure sealing
- Minimum Bend Radius: 25.4 mm (1.0 in)
- Maximum Torque: 7.3 N•m (65 in•lb)
- Environmental Specifications:
- Operating Temperature: -52°C to +177°C
- Storage Temperature: -52°C to +177°C
- Cable Insulation: Fluoroethylene Propylene (FEP)
- Minimum Target Size: 13 mm diameter recommended
Product Comparison
- Compared to 330903-00-21-10-02-05: This model features a longer 70mm case and different approval status
- Compared to 330903-00-03-10-02-05: That variant has a shorter 30mm case and includes agency approvals
Installation & Application
- Optimal Gap Setting: Maintain 1.0 mm from target surface
- Recommended Torque: 5.1 N•m (45 in•lb) for case installation
- Thread Engagement: Maximum 12 mm for M8x1 threads
- Target Requirements: Minimum 13 mm diameter recommended
- Field Wiring: Maximum 305 meters with shielded triad cable
- Cable Management: Maintain 25.4 mm minimum bend radius
Global Shipping & Delivery
- Worldwide shipping via FedEx, UPS, and DHL express services
- All products are new and in original factory packaging
- International delivery typically within 3-5 business days
- Complete tracking information provided for all shipments
