Description

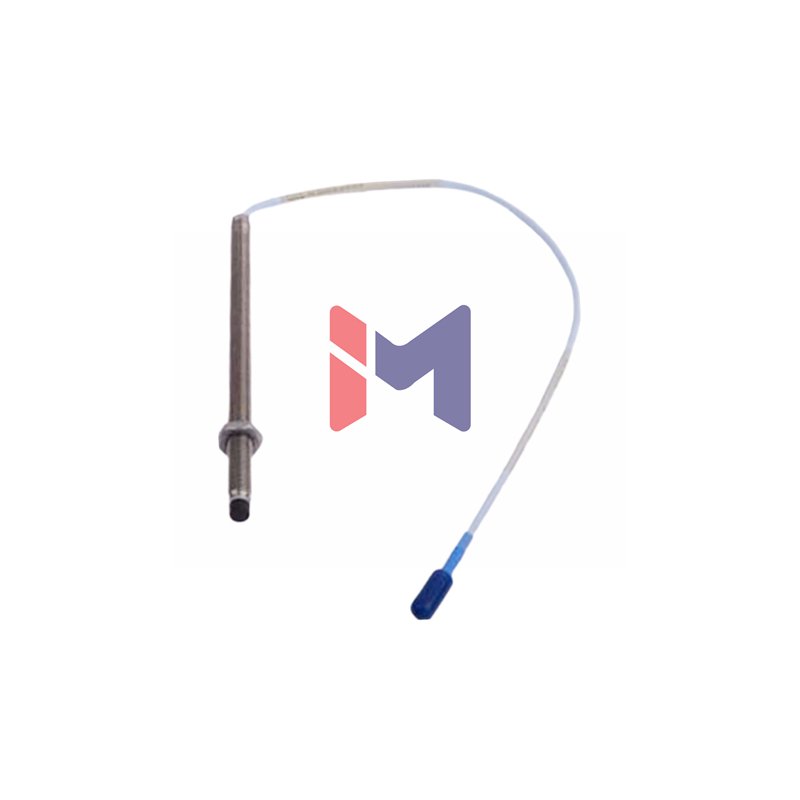

Bently Nevada 330903-00-05-50-12-05: Multi-Certified Proximity Probe
Experience premium performance with the Bently Nevada 330903-00-05-50-12-05 proximity probe. This advanced NSv series probe combines international certifications with FluidLoc cable technology. It ensures reliable operation in the most demanding industrial environments worldwide.
📋 Product Identification & Options
- Manufacturer: Bently Nevada
- Base Model: 330903 (3300 NSv Probe, M8X1)
- Unthreaded Length: 00 mm (-00-)
- Case Length: 50 mm (-05-)
- Cable Length: 5.0 meters (50)
- Connector Type: ClickLoc with FluidLoc cable (12)
- Certification: Multiple international approvals (05)
⚙️ Performance Specifications
- Part Number: 330903-00-05-50-12-05
- Electrical Resistance: 5.3 ± 0.7 ohms at 5.0 meters length
- Measurement Range: 1.5 mm (0.06 inches) linear range
- Scale Factor: 7.87 V/mm (200 mV/mil) with ±12.5% tolerance
- Linearity Deviation: Less than ±0.06 mm (±2.3 mils) DSL
- Frequency Response: 0 to 10,000 Hz (±3 dB typical)
- Target Requirements: Minimum 8.9 mm, recommended 13 mm
- Temperature Range: -52°C to +177°C operational
- Cable Impedance: 75-ohm coaxial with FEP insulation
- Optimal Gap Setting: 1.0 mm (40 mils) from target
- Case Material: AISI 304 stainless steel construction
- Tip Material: Chemical-resistant Polyphenylene sulfide
🔧 Installation & Mounting
- Recommended Torque: 5.1 N•m (45 in•lb) for M8x1 thread
- Maximum Torque: 7.3 N•m (65 in•lb) absolute limit
- Thread Engagement: Maximum 12 mm engagement depth
- Cable Bend Radius: Minimum 25.4 mm (1.0 inch)
- Field Wiring: Shielded triad cable, 16-24 AWG recommended
- Maximum Distance: 305 meters to monitor interface
📦 Package Contents
- Genuine Bently Nevada NSv proximity probe unit
- Miniature coaxial ClickLoc connector system
- FluidLoc protected cable assembly (5.0 meters)
- Original manufacturer packaging with documentation
- Compliance certificates for international approvals
❓ Technical Questions Answered
- What certifications does this model include? The -05 suffix indicates multiple international safety approvals for global use.
- How does the longer case length benefit installation? The 50mm case provides better mounting flexibility in deep installations.
- Can this probe measure smaller shafts accurately? For shafts under 13mm, reduce the gap to maintain measurement accuracy.
- What makes FluidLoc cable different from standard cable? It offers enhanced protection against fluids and chemicals in tough environments.
- How quickly can I receive this product? We ship within 24 hours using FedEx, UPS, or DHL express services worldwide.
