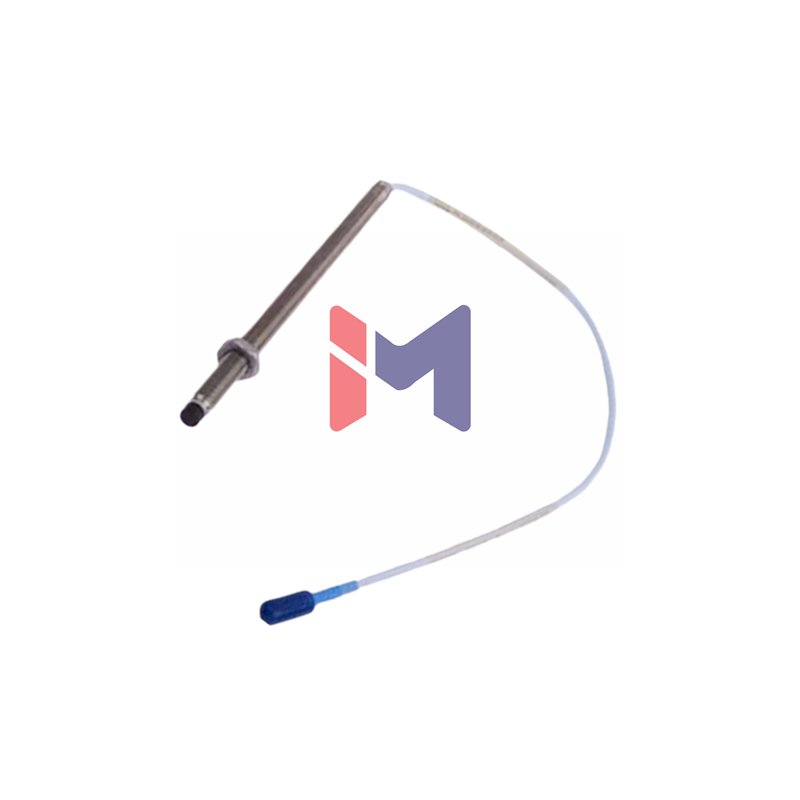

Bently Nevada 330903-00-05-05-02-05 Industrial Proximity Sensor
Experience precision monitoring with the Bently Nevada 3300 NSv proximity probe, designed for critical machinery protection in demanding industrial applications. This 330903-00-05-05-02-05 configuration combines exceptional performance with agency certifications for global use.
🔧 Product Configuration Details
- Complete Part Number: 330903-00-05-05-02-05
- Base Model: 330903 – 3300 NSv Probe, M8X1 thread
- Unthreaded Length: 00 mm (-00-)
- Case Length: 50 mm (-05-)
- Cable Length: 0.5 meter (05)
- Connector Type: Miniature coaxial ClickLoc (02)
- Certification: Multiple Agency Approvals (-05)
📊 Technical Performance Data
- Electrical Characteristics:
- Probe Resistance: 4.0 Ω ± 0.5 Ω
- Cable Resistance: 0.220 Ω/m (center), 0.066 Ω/m (shield)
- Capacitance: 69.9 pF/m typical
- Impedance: 75 Ω coaxial design
- Measurement Performance:
- Linear Range: 1.5 mm (0.25 to 1.75 mm from target)
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity: 7.87 V/mm (±12.5%)
- Linearity: ±0.06 mm maximum deviation
- Frequency Response: 0-10 kHz (±3 dB)
- Mechanical Specifications:
- Thread Type: M8x1
- Max Thread Engagement: 12 mm
- Torque: Finger tight (max 0.56 N•m)
- Connector Torque: 5.1 N•m recommended
- Bend Radius: 25.4 mm minimum
🌡️ Environmental Specifications
- Temperature Range:
- Operation: -52°C to +177°C
- Storage: -52°C to +177°C
- Materials Construction:
- Probe Tip: Polyphenylene sulfide (PPS)
- Case: AISI 304 stainless steel
- Sealing: Viton O-ring
- Cable: FEP insulated, 75 Ω coaxial
- Target Requirements:
- Minimum Target: 8.9 mm diameter
- Recommended: 13 mm diameter or larger
🚚 Ordering & Delivery
- Condition: Factory new, original packaging
- Availability: In stock, ready for immediate shipment
- Shipping Options: FedEx, UPS, DHL express services
- Packaging: Industrial protective packaging
