Description

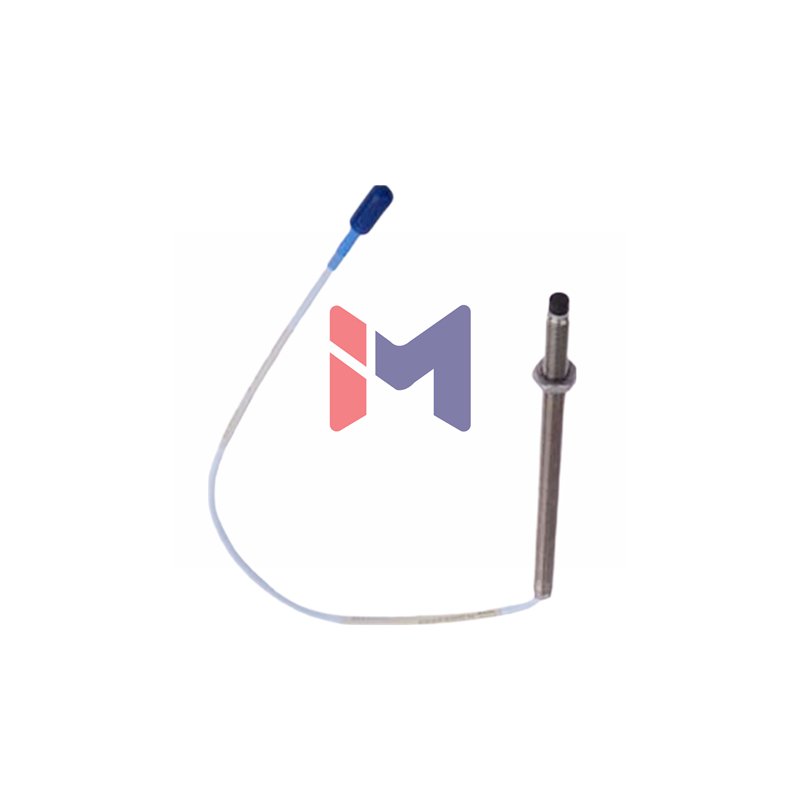

Bently Nevada 330903-00-04-70-11-00 NSv Proximity Probe: Superior Sensing for Demanding Environments
The 3300 NSv proximity probe model 330903-00-04-70-11-00 offers advanced industrial monitoring with enhanced features. This version includes a 40 mm overall case length and a specialized FluidLoc cable with connector protector. Bently Nevada designed this probe for exceptional performance in harsh conditions like chemical plants and compressors. Its robust construction ensures long-term reliability and accurate measurements.
Complete Model Suffix Breakdown
- Base Model: 330903
- 3300 NSv Probe with M8X1 thread, no armor
- Unthreaded Length: -00-
- 00 millimeters
- Overall Case Length: -04-
- 40 millimeters
- Total Cable Length: 70
- 7.0 meters (23.0 feet)
- Connector & Cable Type: 11
- Miniature coaxial ClickLoc connector with protector
- FluidLoc cable for improved fluid resistance
- Agency Approval: 00
- Not required for this configuration
Detailed Technical Specifications
- Brand & Model: Bently Nevada 330903-00-04-70-11-00
- Linear Measurement Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm from target
- Frequency Response Bandwidth: 0 to 10,000 Hz (±3 dB typical)
- Incremental Scale Factor (Sensitivity): 7.87 V/mm (±12.5%/-20%)
- Linearity Deviation: Less than ±0.06 mm across full range
- Electrical Resistance: 5.9 ohms ±0.9 for the 7.0 meter probe length
- Operating Temperature Range: -52°C to +177°C (-62°F to +351°F)
- Probe Tip Material: Polyphenylene sulfide (PPS) for chemical resistance
- Case Material: AISI 304 stainless steel for durability
- Cable Impedance: 75 ohm coaxial with FEP insulation
- Minimum Target Size: 8.9 mm diameter, 13 mm recommended
- Recommended Gap Setting: 1.0 mm (40 mils) for optimal performance
Packaging and Shipping Details
- Each 330903-00-04-70-11-00 probe comes new in original factory packaging
- The package includes the complete probe assembly with all specified components
- We ship worldwide using reliable carriers including FedEx, UPS, and DHL
- Orders typically process within 24 hours for fast delivery to your location
For technical specifications or ordering information, contact sales@plc-pioneer.com or +86 18150899927 via WhatsApp.
