Description

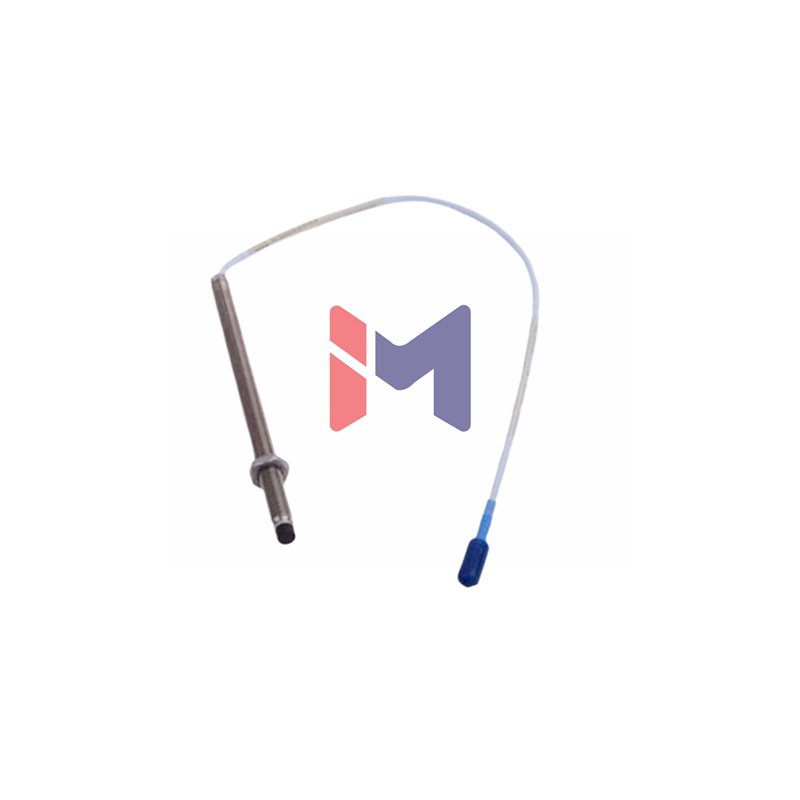

Bently Nevada 330903-00-04-70-02-05 NSv Proximity Probe
Discover the precision-engineered 330903-00-04-70-02-05 proximity probe from Bently Nevada. This advanced sensor delivers exceptional performance for industrial machinery monitoring with its compact 40mm case and global agency approvals. The probe features superior chemical resistance and upgraded electrical characteristics for reliable operation in demanding environments.
Model Configuration Details
- 330903 – 3300 NSv Probe, M8x1 thread, no armor
- -00- – Unthreaded length: 00 mm
- -04- – Overall case length: 40 mm
- 70 – Total cable length: 7.0 meters
- 02 – Connector: Miniature coaxial ClickLoc
- 05 – Agency approvals: Multiple certifications
Technical Specifications & Performance Data
- Measurement Range: 1.5 mm linear range (0.25 to 1.75 mm from target)
- Sensitivity: 7.87 V/mm ±12.5%/-20% incremental scale factor
- Linearity: ±0.06 mm maximum deviation from straight line
- Frequency Response: 0 to 10 kHz (±3 dB) with 305m field wiring
- Electrical Resistance: 5.9 ± 0.9 ohms DC probe resistance
- Cable Capacitance: 69.9 pF/m typical extension cable value
- Temperature Range: -52°C to +177°C operating and storage
- Target Requirements: Minimum 8.9mm, recommended 13mm diameter
- Material Construction: PPS probe tip with 304 stainless steel case
- Pressure Sealing: Viton O-ring for differential pressure protection
Contact Our Experts
- Email: sales@plc-pioneer.com
- WhatsApp: +86 18150899927
- Technical support and application assistance available
- Competitive pricing and volume discounts offered
