Description

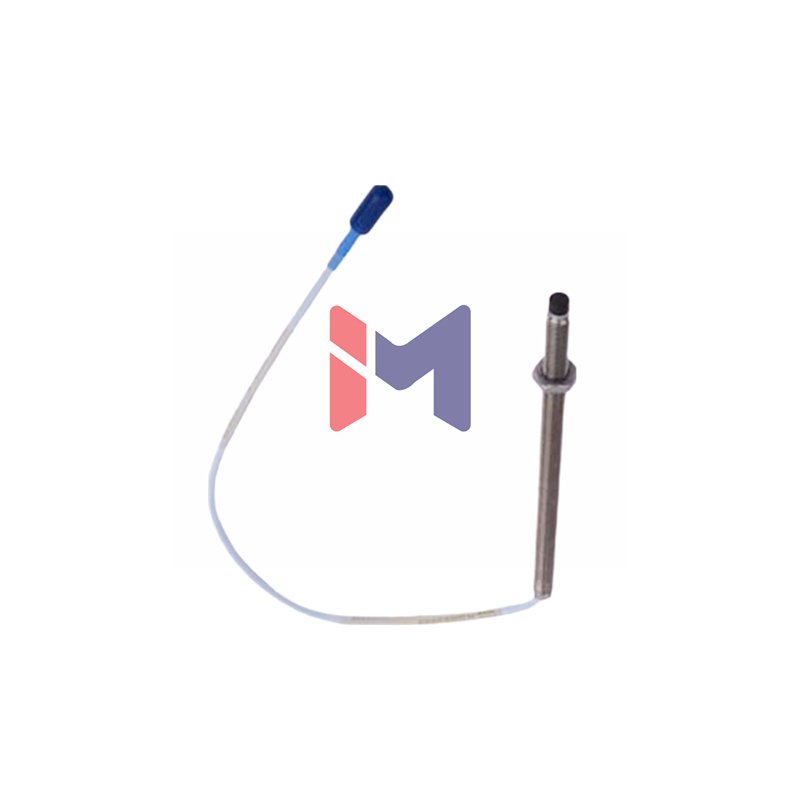

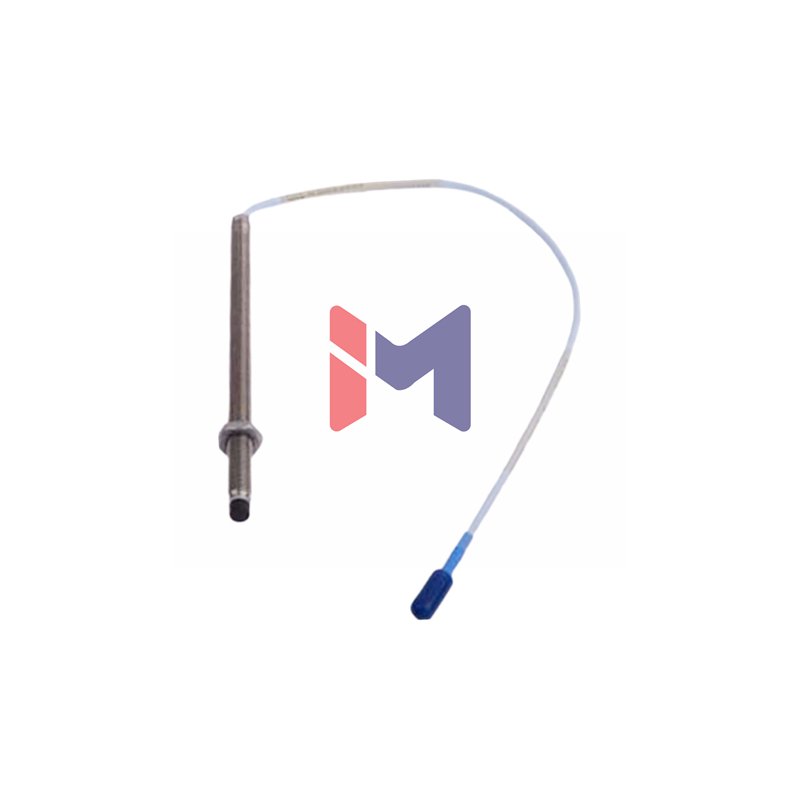

Bently Nevada 3300 NSv Proximity Probe
Experience high-precision monitoring with the 3300 NSv Proximity Probe, designed for demanding industrial environments. This 330903-00-03-70-11-05 model delivers exceptional performance and reliability. Download the complete datasheet here: 3300 XL NSv Proximity Transducer System Datasheet.
Complete Model Suffix Breakdown
- Base Model: 330903 – 3300 NSv Probe, M8X1 thread, without armor
- Unthreaded Length Option: -00- 00 mm
- Overall Case Length Option: -03- 30 mm
- Total Length Option: 70 – 7.0 meters (23.0 feet)
- Connector and Cable Option: 11 – Miniature coaxial ClickLoc connector with protector and FluidLoc cable
- Agency Approval Option: 05 – Multiple Approvals
Detailed Technical Parameters
- Linear Measurement Range: 1.5 mm (60 mils) from 0.25 mm to 1.75 mm from target
- Recommended Gap Setting: 1.0 mm (40 mils) for optimal performance
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil) with ±12.5%/-20% tolerance
- Linearity Deviation: Less than ±0.06 mm (±2.3 mils) from best fit straight line
- Frequency Response: 0 to 10 kHz with +0, -3 dB typical performance
- Electrical Resistance: Probe DC resistance 5.9 ± 0.9 ohms at 7.0 meters length
- Cable Specifications: 75 Ω coaxial with FEP insulation
- Temperature Operating Range: -52°C to +177°C (-62°F to +351°F)
- Extension Cable Parameters: Center conductor 0.220 Ω/m, shield 0.066 Ω/m
- Field Wiring Capacity: Supports up to 305 meters (1000 feet) of triad cable
Installation and Mounting Specifications
- Apply finger tight torque during installation; maximum 0.56 N•m (5 in•lb)
- Maintain minimum cable bend radius of 25.4 mm (1.0 inch) at all times
- For M8x1 thread cases, use maximum 12 mm length of thread engagement
- Recommended connector torque: 5.1 N•m (45 in•lb) for secure connection
- Use flat targets with minimum 8.9 mm diameter, recommended 13 mm
Shipping and Package Details
- New and original unit delivered in factory sealed packaging
- Comprehensive 12-month manufacturer warranty included
- Express shipping available via FedEx, UPS, or DHL carriers
For technical specifications or pricing, contact sales@plc-pioneer.com or message us on WhatsApp at +86 18150899927.
