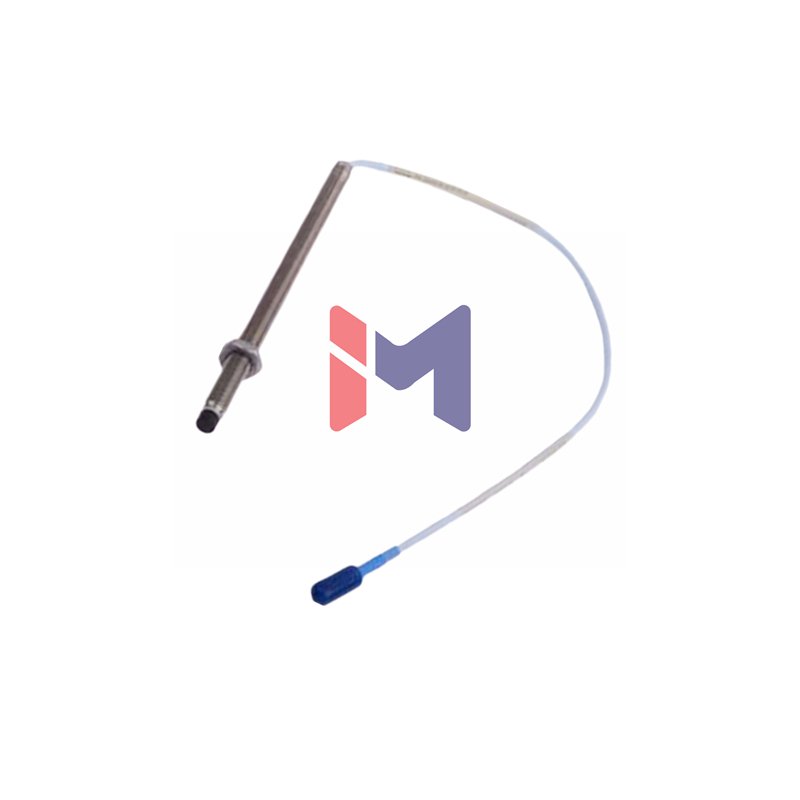

Introducing the Bently Nevada 3300 NSv Proximity Probe
Discover the advanced 3300 NSv proximity probe from Bently Nevada, a leader in condition monitoring. This new probe offers superior performance for critical machinery. It replaces the older 3300 RAM model with enhanced chemical resistance. You can use it confidently in demanding process compressor applications. The 330903-00-02-70-01-05 provides excellent side-view characteristics for accurate measurements. We ship this original, new unit in its factory packaging via FedEx, UPS, or DHL.
Download the complete datasheet here: 3300 XL NSv Proximity Transducer System Datasheet
Complete Model Suffix Breakdown
The full part number 330903-00-02-70-01-05 specifies every feature of your probe.
- 330903: Base Model – 3300 NSv Probe, M8X1 thread, without armor
- -00-: Unthreaded Length – 00 mm
- -02-: Overall Case Length – 20 mm
- 70: Total Length – 7.0 meters (23.0 feet)
- 01: Connector Type – Miniature coaxial ClickLoc connector with protector
- 05: Agency Approvals – Multiple Approvals
Key Technical Specifications & Performance
The 3300 NSv probe delivers reliable and precise data for protecting your equipment.
- Brand: Bently Nevada
- Model: 330903-00-02-70-01-05
- Linear Range: 1.5 mm (60 mils), from 0.25 mm to 1.75 mm from the target.
- Recommended Gap Setting: 1.0 mm (40 mils) for optimal performance.
- Incremental Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil) with a tolerance of +12.5%/-20%.
- Frequency Response: 0 to 10 kHz, ensuring accurate measurement of high-speed vibrations.
- Deviation from Straight Line (Linearity): Less than ±0.06 mm (±2.3 mils) for high accuracy.
- Probe DC Resistance: 5.9 ± 0.9 ohms for a 7.0-meter cable.
- Operating Temperature Range: A wide range from -52°C to +177°C (-62°F to +351°F).
- Probe Tip Material: Robust Polyphenylene sulfide (PPS) for chemical resistance.
- Probe Case Material: Durable AISI 304 stainless steel.
Packaging List
Your order includes everything you need to get started.
- One (1) Bently Nevada 3300 NSv Proximity Probe, model 330903-00-02-70-01-05.
- One (1) Miniature coaxial ClickLoc connector with a connector protector.
Frequently Asked Questions (FAQ)
- What is the main advantage of the 3300 NSv over the 3300 RAM probe?
The 3300 NSv probe offers significantly increased chemical resistance. This makes it suitable for harsh environments like process compressors. - Can I use this new NSv probe with my existing Bently Nevada system?
Yes, the 3300 NSv probe and cable are fully interchangeable with the previous 3300 RAM probe and extension cable. - What is the ideal gap between the probe tip and the target shaft?
We recommend setting the gap at 1.0 mm (40 mils). This position is within the probe’s linear range for accurate voltage output. - What is the total length of the probe and cable?
This specific model, 330903-00-02-70-01-05, has a total length of 7.0 meters (23.0 feet).
