Description

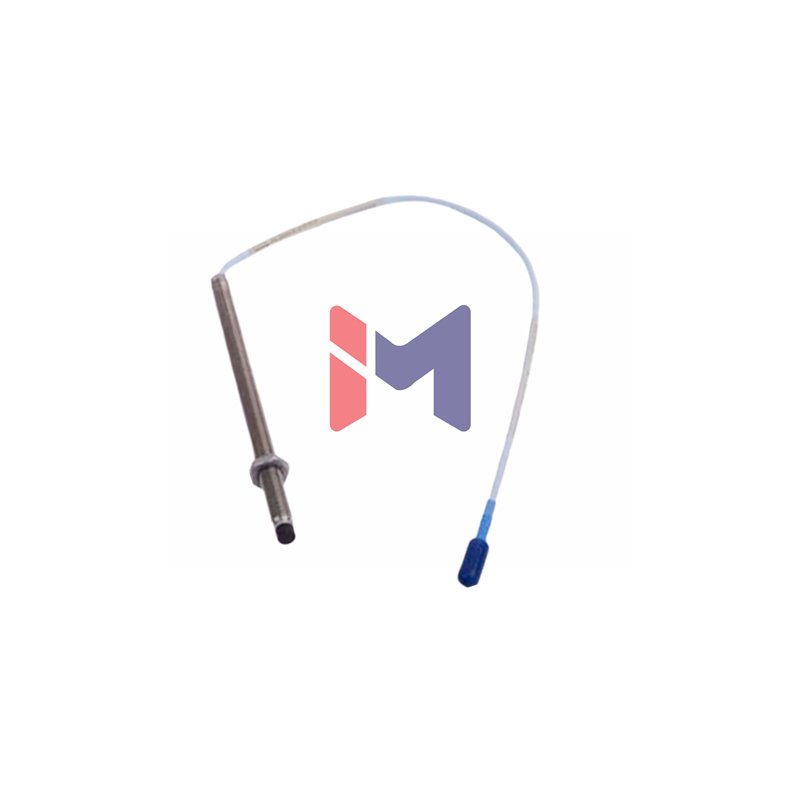

Bently Nevada 3300 NSv Proximity Probe: Precision Vibration Measurement
The Bently Nevada 3300 NSv Proximity Probe represents the pinnacle of vibration monitoring technology. This advanced sensor offers superior performance in demanding industrial environments with enhanced chemical resistance and improved side-view characteristics compared to previous models.
Complete Suffix Information
- Base Model: 330905 (M10X1 thread, without armor)
- Unthreaded Length: -05- (50 mm)
- Overall Case Length: -25- (250 mm)
- Total Length: -05- (0.5 meter/20 in)
- Connector & Cable: -12- (Miniature coaxial ClickLoc connector, FluidLoc cable)
- Agency Approval: -05- (Multiple Approvals)
Key Technical Specifications
- Brand: Bently Nevada
- Model: 330905-05-25-05-12-05
- Measurement Range: 1.5 mm (60 mils) linear range
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
- Sensitivity: 7.87 V/mm (200 mV/mil) with ±12.5%/-20% tolerance
- Linearity: Less than ±0.06 mm (±2.3 mils) deviation from best fit straight line
- Temperature Range: -52°C to +177°C (-62°F to +351°F)
- Environmental Resistance: Enhanced chemical resistance for process applications
- Interference Immunity: Excellent side-view characteristics for accurate readings
Frequently Asked Questions
- Q: Is the 3300 NSv compatible with previous Bently Nevada systems?
A: Yes, it’s fully compatible with 3300 RAM proximity probe systems - Q: What makes the NSv superior to previous models?
A: It offers increased chemical resistance and better side-view characteristics - Q: What is the maximum field wiring distance?
A: Up to 305 meters (1,000 feet) between the probe and monitor - Q: What cable type is recommended?
A: Three-conductor shielded triad cable with 0.2 to 1.5 mm² cross-section
