Description

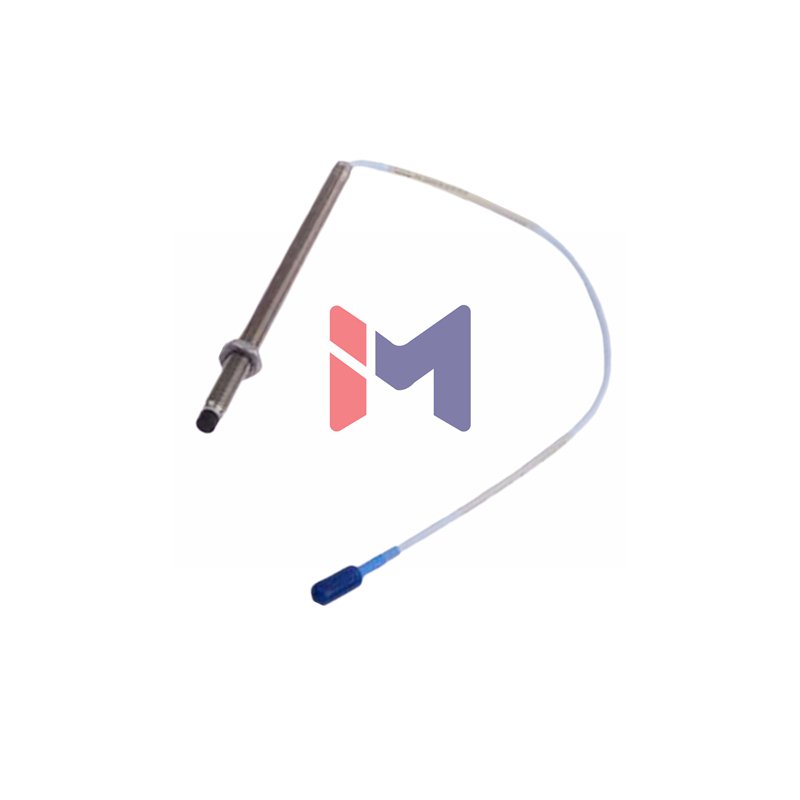

Product Introduction: Bently Nevada 3300 NSv Proximity Probe
This brand-new 330905-00-25-05-12-05 probe is original and comes in factory packaging. It is designed for precise vibration and position measurement in industrial machinery. The 3300 NSv probe offers superior chemical resistance and performance. It is perfect for critical applications like compressors and turbines.
Full Model Suffix: 330905-00-25-05-12-05
- 330905: 3300 NSv Probe, M10X1 thread, no armor
- -00-: Unthreaded length: 00 mm
- -25-: Overall case length: 250 mm
- -05: Total cable length: 0.5 meter (20 in)
- -12: Connector: Miniature coaxial ClickLoc with FluidLoc cable
- -05: Agency Approvals: Multiple Approvals
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 NSv Proximity Probe
- Full P/N: 330905-00-25-05-12-05
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity (Scale Factor): 7.87 V/mm (200 mV/mil)
- Linearity (Deviation from DSL): Less than ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz
- DC Probe Resistance: 4.0 ± 0.5 ohms (for 0.5m cable)
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Case Material: AISI 304 Stainless Steel
- Environmental Sealing: Viton O-ring
- Agency Approvals: Multiple international approvals
Installation & Compatibility
- Recommended Torque: Finger tight
- Maximum Torque: 0.56 N•m (5 in•lb)
- Minimum Bend Radius: 25.4 mm (1.0 in)
- Fully compatible with older 3300 RAM probe systems
- Field Wiring: Use shielded triad cable, max length 305 m (1000 ft)
Packaging, Warranty & Shipping
- Condition: New & Original, in factory-sealed packaging
- Warranty: 12 months
- Shipping: We ship worldwide via FedEx, UPS, and DHL
Ready to Order?
Ensure your machinery’s protection with the genuine Bently Nevada 330905-00-25-05-12-05 probe. In stock now.
