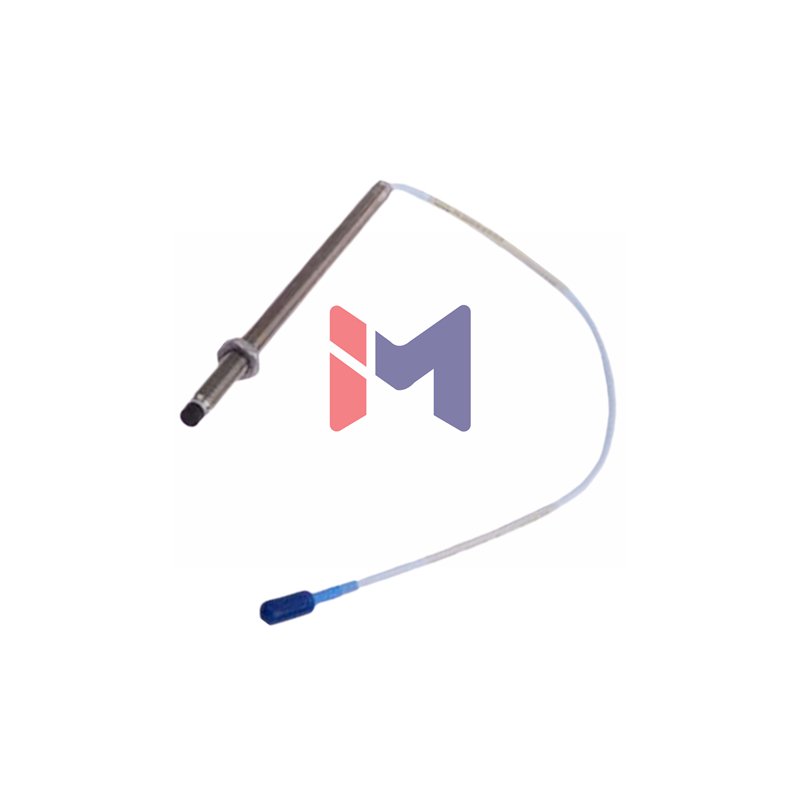

Bently Nevada 330903-00-04-10-11-05 NSv Proximity Probe: Premium Performance and Reliability
The Bently Nevada 3300 NSv Proximity Probe offers superior accuracy and durability for industrial monitoring. This advanced sensor works perfectly in demanding environments like process compressors. It provides reliable data for predictive maintenance and machine health analysis.
Complete Suffix Information Breakdown
- Brand: Bently Nevada
- Model: 3300 NSv Proximity Probe
- Full Part Number: 330903-00-04-10-11-05
- -00-: 00 mm Unthreaded Length
- -04-: 40 mm Overall Case Length
- -10-: 1.0 meter (39 in) Total Cable Length
- -11-: Miniature Coaxial ClickLoc Connector with Protector and FluidLoc Cable
- -05: Multiple Agency Approvals
Detailed Technical Specifications
- Brand: Bently Nevada
- Model: 330903-00-04-10-11-05
- Linear Range: 1.5 mm (60 mils), from 0.25 to 1.75 mm from the target
- Recommended Gap Setting: 1.0 mm (40 mils)
- Incremental Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil)
- Deviation from Straight Line (Linearity): Less than ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz, with up to 305 meters (1000 feet) of field wiring
- Probe DC Resistance: 4.2 Ω ± 0.5 Ω for the 1.0m model
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Minimum Target Size: 8.9 mm (0.35 in) diameter
- Recommended Target Size: 13 mm (0.5 in) diameter or larger
- Probe Case Material: AISI 304 Stainless Steel
- Probe Tip Material: Chemical-Resistant Polyphenylene Sulfide (PPS)
- Connector Torque (Recommended): 5.1 N•m (45 in•lb)
- Maximum Cable Bend Radius: 25.4 mm (1.0 in)
Packaging & Delivery
- Packaging List:
- One Bently Nevada 330903-00-04-10-11-05 Probe
- Miniature Coaxial ClickLoc Connector with Protector
- Shipping: We ship globally via express carriers like FedEx, UPS, and DHL.
Frequently Asked Questions (FAQ)
- Is the 3300 NSv probe compatible with older systems?
- Yes, the 3300 NSv probe is electrically and mechanically compatible with the older 3300 RAM system.
- What is the advantage of the FluidLoc cable?
- It provides increased resistance to moisture and chemicals, protecting the signal.
- Can I use this on a small shaft?
- For shafts smaller than 13 mm, the scale factor may change. Reduce the gap to help minimize this effect.
