Description

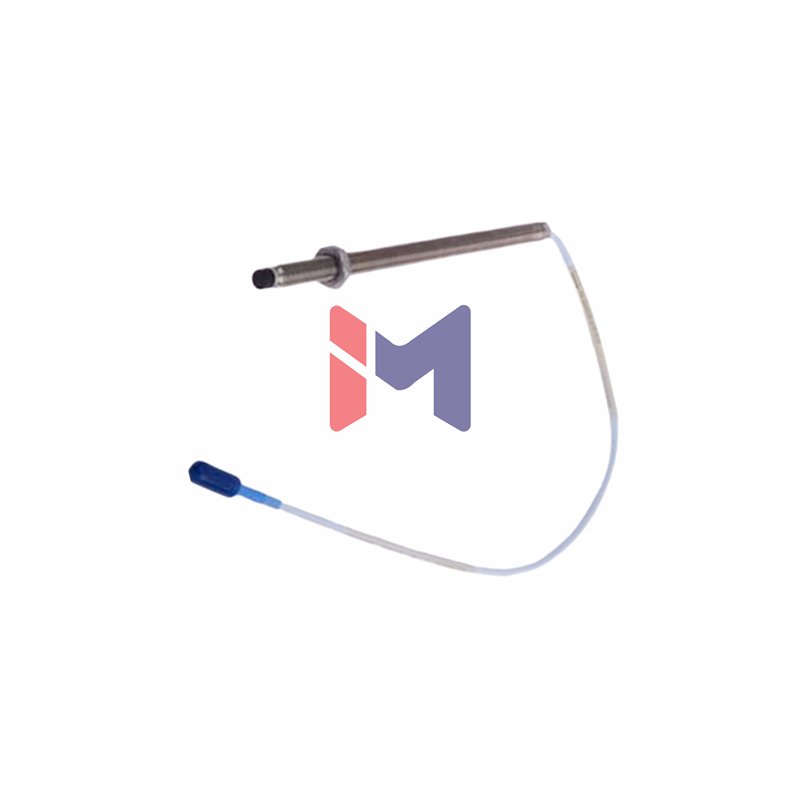

Introducing the Bently Nevada 3300 NSv Proximity Probe
The new and original 3300 NSv proximity probe from Bently Nevada offers superior performance for industrial machinery monitoring. This model 330903-00-02-70-02-05 provides reliable vibration and position measurement with enhanced chemical resistance. Its design ensures full compatibility with previous 3300 RAM probe systems. You can easily integrate it into your existing setup for critical asset protection.
Complete Model Suffix Breakdown
- Model: 330903 – 3300 NSv Probe, M8X1 thread, without armor
- Unthreaded Length: -00- = 00 mm
- Overall Case Length: -02- = 20 mm
- Total Cable Length: 70 = 7.0 meters (23.0 feet)
- Connector & Cable: 02 = Miniature coaxial ClickLoc connector, standard cable
- Agency Approval: 05 = Multiple Approvals
Key Technical Specifications
- Brand: Bently Nevada
- Model: 3300 NSv Probe, Part Number 330903-00-02-70-02-05
- Linear Range: 1.5 mm (60 mils), from 0.25 mm to 1.75 mm from the target
- Recommended Gap Setting: 1.0 mm (40 mils) for optimal performance
- Sensitivity (Scale Factor): 7.87 V/mm (200 mV/mil) with +12.5%/-20% tolerance
- Linearity: Better than ±0.06 mm (±2.3 mils) over the linear range
- Frequency Response: 0 to 10 kHz with up to 305 meters of field wiring
- Probe DC Resistance: 5.9 ± 0.9 ohms for 7.0-meter cable
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Probe Tip Material: Chemical resistant Polyphenylene Sulfide (PPS)
- Probe Case Material: Durable AISI 304 Stainless Steel
Installation & Mechanical Details
- Thread Size: M8 X 1
- Maximum Thread Engagement: 12 mm for secure mounting
- Recommended Torque: Finger tight, maximum 0.56 N•m (5 in•lb)
- Connector Torque: Recommended 5.1 N•m (45 in•lb), maximum 7.3 N•m (65 in•lb)
- Minimum Bend Radius: 25.4 mm (1.0 inch) to protect cable
- Target Size: Minimum 8.9 mm diameter; recommended 13 mm diameter
Cabling and Wiring Information
- Probe Cable: 75-ohm coaxial with FEP insulation
- Extension Cable Resistance: Center conductor: 0.220 Ω/m; Shield: 0.066 Ω/m
- Extension Cable Capacitance: 69.9 pF/m, typical
- Field Wiring: Use three-conductor shielded triad cable, 0.2 to 1.5 mm²
- Maximum Field Wiring Length: 305 meters between sensor and monitor
Packaging & Shipping
- Condition: New and original in factory packaging
- Packaging List: Includes the 3300 NSv probe with integrated cable and connector
- Shipping: Global delivery via FedEx, UPS, and DHL
- Factory Warranty: 12-month manufacturer warranty included
Frequently Asked Questions (FAQ)
What is the main advantage of the 3300 NSv probe?
The 3300 NSv probe offers increased chemical resistance for demanding process applications.
Is this probe compatible with existing Bently Nevada 3300 systems?
Yes, the 3300 NSv probe is fully compatible with previous 3300 RAM probe systems.
What is the recommended gap for setting up this probe?
The recommended gap setting is 1.0 mm (40 mils) from the target surface.
What is the minimum target size required?
Minimum target diameter is 8.9 mm, but we recommend at least 13 mm for best accuracy.
Download the Datasheet
For detailed technical drawings and system configuration information:
Download 3300 XL NSv Proximity Transducer System Datasheet (PDF)
