Description

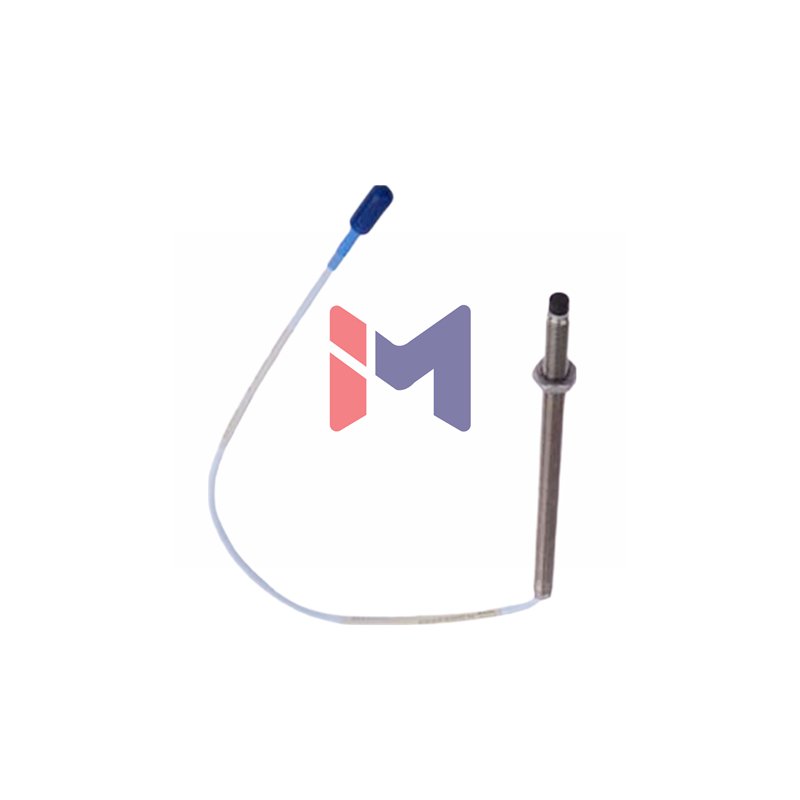

Bently Nevada 3300 NSv Proximity Probe
The 330905-00-18-05-02-00 is a professional vibration sensor. It is perfect for industrial machinery monitoring. This M10x1 thread probe has a 180mm case length. It comes with a 0.5 meter cable. The probe is new and original. It includes a 12-month factory warranty.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 NSv Proximity Probe
- Full Part Number: 330905-00-18-05-02-00
- Measurement Range: 1.5 mm (60 mils)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10,000 Hz
- Linearity: ±0.06 mm (±2.3 mils)
- Temperature Range: -52°C to +177°C
- Probe Resistance: 4.0 ± 0.5 ohms
- Cable Type: 75Ω coaxial with FEP insulation
- Minimum Target: 8.9 mm diameter
Part Number Details
- 330905: 3300 NSv Probe, M10X1 thread
- 00: Unthreaded Length (00 mm)
- 18: Case Length (180 mm)
- 05: Cable Length (0.5 meter)
- 02: ClickLoc connector, standard cable
- 00: No agency approvals required
Installation Guide
- Set gap to 1.0 mm (40 mils)
- Hand tighten only
- Max torque: 0.56 N•m (5 in•lb)
- Min bend radius: 25.4 mm (1.0 in)
Expert FAQs
- What is the cable length option 05?
It means 0.5 meter cable length. - Does this model have agency approvals?
No, option 00 means no approvals required. - What is the difference between 02 and 01 connector?
02 has standard cable instead of protected cable. - Can I use this in high pressure applications?
It has Viton O-ring seal but not pressure tested. - What does 18 mean in case length?
It indicates 180mm overall case length.
