Description

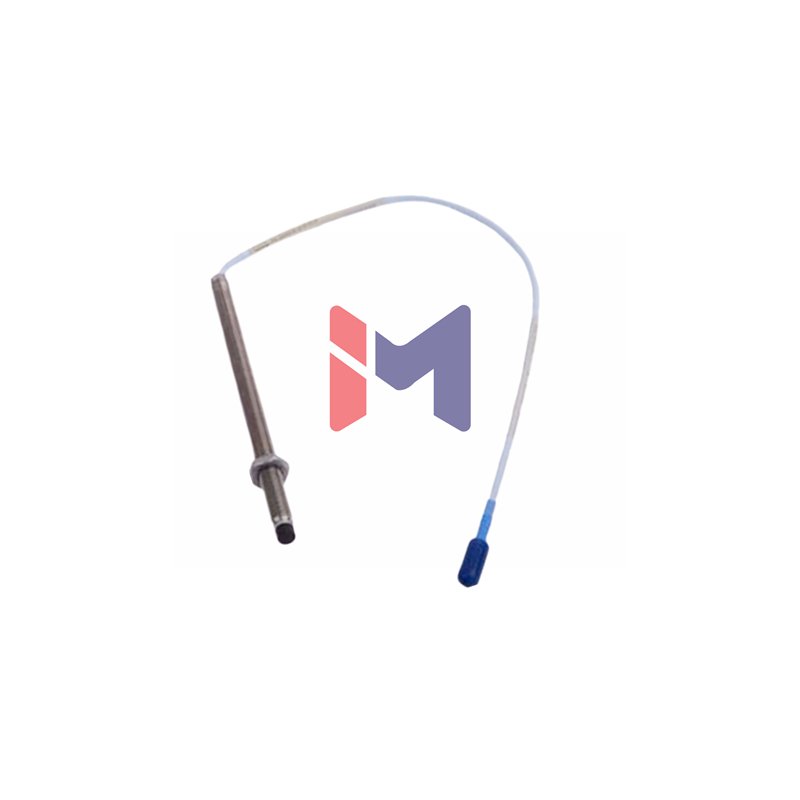

Bently Nevada 330903-00-05-50-01-05 Proximity Probe
Experience precision monitoring with the 3300 NSv proximity probe from Bently Nevada. This factory-fresh 330903-00-05-50-01-05 model delivers exceptional accuracy for industrial machinery protection applications.
Product Identification & Configuration
- Manufacturer: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Full Part Number: 330903-00-05-50-01-05
Configuration Details
- Base Model: 330903 (3300 NSv Probe, M8X1 thread)
- Unthreaded Length: 00 mm
- Case Length: 50 mm
- Cable Length: 5.0 meters (16.4 feet)
- Connector Type: Miniature coaxial ClickLoc with protector
- Cable Type: Standard coaxial cable
- Certification: Multiple agency approvals
Performance Specifications
- Measurement Range: 1.5 mm (60 mils) linear range
- Optimal Gap Setting: 1.0 mm (40 mils)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linearity: ±0.06 mm (±2.3 mils) maximum deviation
- Frequency Response: 0 to 10 kHz (±3 dB)
- Electrical Resistance: 5.3 ± 0.7 ohms at 5.0 meters
- Temperature Range: -52°C to +177°C operating
- Cable Capacitance: 69.9 pF/m typical
- Minimum Target: 13 mm diameter recommended
Construction & Materials
- Probe Tip: Chemical-resistant PPS polymer
- Probe Case: 304 stainless steel construction
- Sealing: Viton O-ring for pressure differentials
- Cable Insulation: FEP material for durability
- Connector: ClickLoc with protective cover
