Description

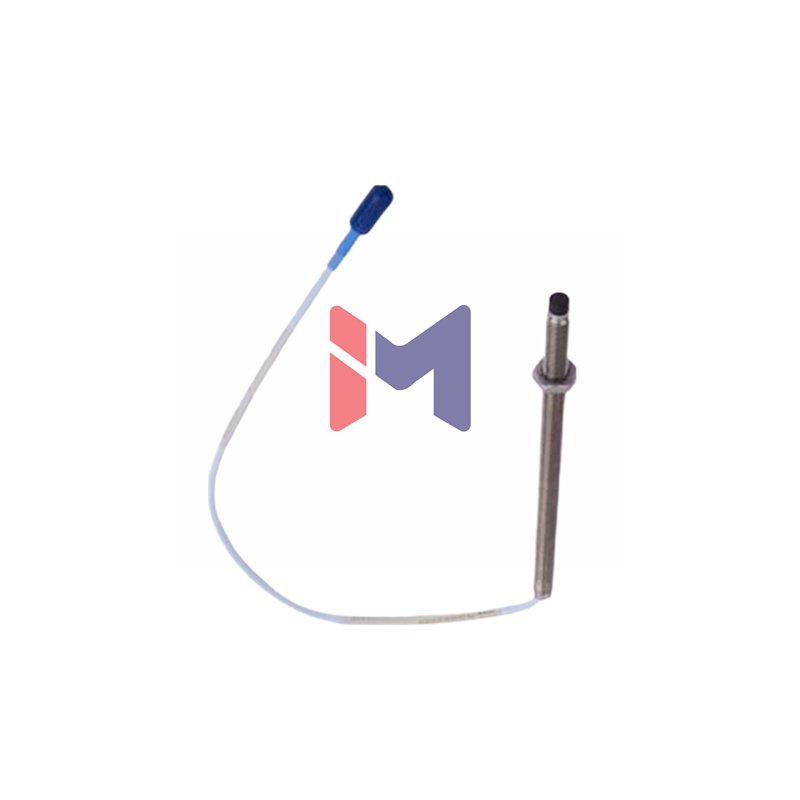

Bently Nevada 3300 NSv Proximity Probe – 330903-00-03-05-02-05
Discover the advanced 330903-00-03-05-02-05 from the innovative 3300 NSv series by Bently Nevada. This next-generation M8X1 proximity probe offers superior chemical resistance and enhanced performance for critical industrial applications. Engineered for precision monitoring in demanding environments.
Product Configuration Breakdown
- Base Model: 330903 (3300 NSv Probe, M8X1 thread)
- Unthreaded Length: 00 = 00 mm
- Case Length: 03 = 30 mm
- Cable Length: 05 = 0.5 meter (20 inches)
- Connection System: 02 = Miniature coaxial ClickLoc
- Certification: 05 = Multiple Agency Approvals
Premium Technical Specifications
- Electrical Resistance: 4.0 ± 0.5 Ω for 0.5-meter cable length
- Extension Cable Resistance: Center conductor: 0.220 Ω/m
- Cable Capacitance: 69.9 pF/m typical performance rating
- Linear Measurement Range: 1.5 mm (60 mils) from 0.25 mm
- Optimal Gap Setting: 1.0 mm (40 mils) for best performance
- Scale Factor: 7.87 V/mm (200 mV/mil) with +12.5%/-20% tolerance
- Deviation from Linearity: Less than ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz: +0, -3 dB typical
- Minimum Target Size: 8.9 mm diameter for accurate readings
- Recommended Target: 13 mm diameter for optimal performance
- Operating Temperature: -52°C to +177°C extreme range
- Storage Temperature: -52°C to +177°C safe storage limits
- Maximum Torque: 0.56 N•m (5 in•lb) installation limit
- Bend Radius: 25.4 mm (1.0 in) minimum requirement
- Thread Engagement: 12 mm maximum for M8x1 cases
Package Contents
- One Bently Nevada 3300 NSv Proximity Probe
- Factory original packaging with documentation
Warranty & Shipping Information
- Manufacturer Warranty: 12 months comprehensive coverage
- Global Shipping: FedEx, UPS, and DHL express options
- Delivery: Worldwide express shipping available
