Description

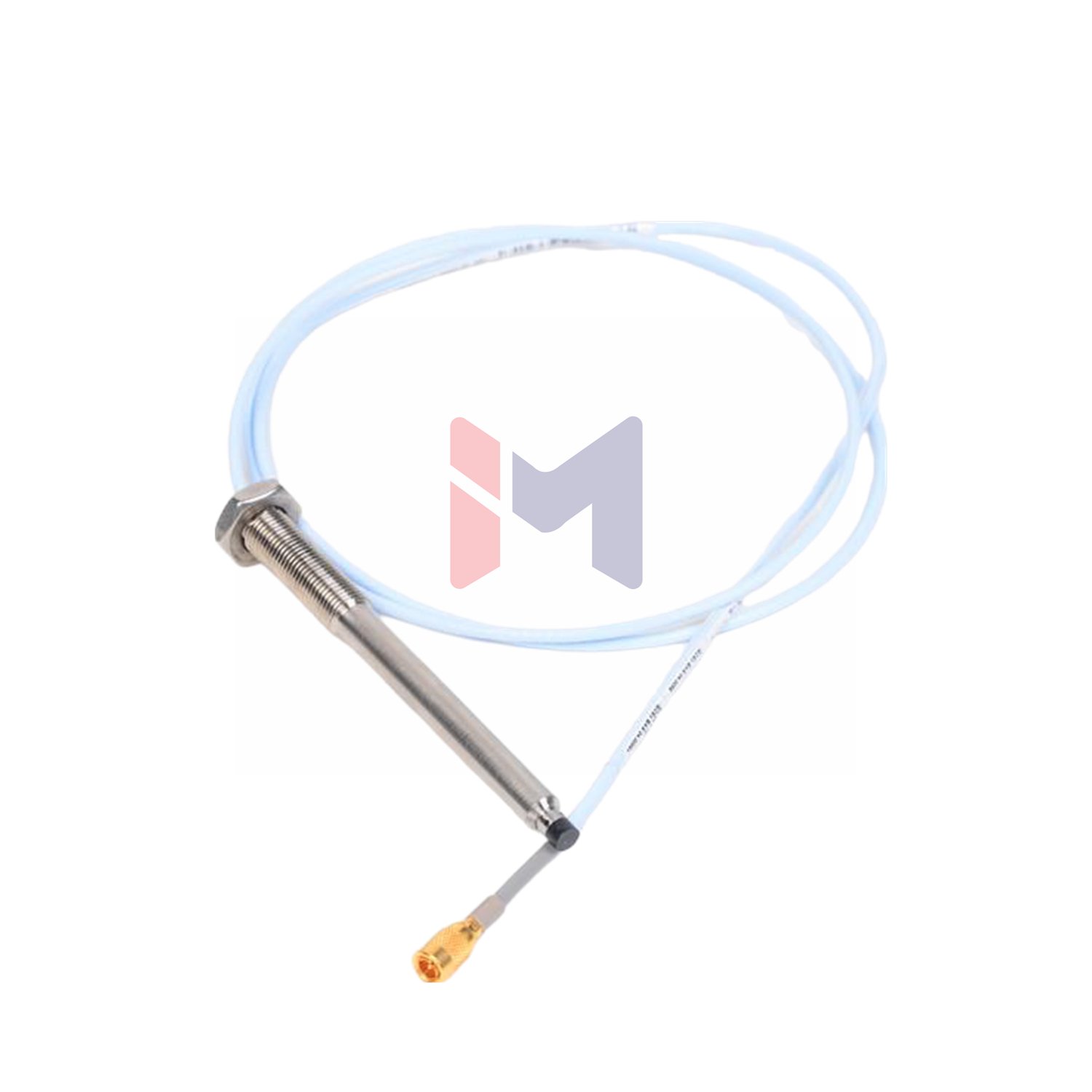

Bently Nevada 3300 NSv Proximity Probe
This 330905-00-08-05-02-00 is a high-performance M10X1 vibration probe. It offers excellent chemical resistance for process applications. The 330905-00-08-05-02-00 ensures reliable machinery monitoring in harsh industrial environments.
Technical Specifications
- Part Number: 330905-00-08-05-02-00
- Manufacturer: Bently Nevada
- Model: 3300 NSv Proximity Probe
- Thread Size: M10X1
- Case Length: 80 mm
- Cable Length: 0.5 meter (20 inches)
- DC Resistance: 4.0 Ω ± 0.5
- Linear Range: 1.5 mm (60 mils)
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity: 7.87 V/mm (+12.5%/-20%)
- Non-linearity: < ±0.06 mm
- Frequency Response: 0-10 kHz (±3 dB)
- Min Target Size: 8.9 mm diameter
- Operating Temperature: -52°C to +177°C
- Max Torque: 0.56 N•m (5 in•lb)
- Bend Radius: 25.4 mm (1.0 in)
- Case Material: AISI 304 Stainless Steel
- Tip Material: PPS Plastic
Part Number Breakdown
- ▸ 330905: NSv Probe Base Number
- ▸ 00: 00 mm Unthreaded Length
- ▸ 08: 80 mm Case Length
- ▸ 05: 0.5 Meter Cable Length
- ▸ 02: ClickLoc Connector
- ▸ 00: No Agency Approval
Performance Benefits
- Better chemical resistance than 3300 RAM
- Improved side-view characteristics
- Wide temperature operation range
- Excellent frequency response
- Reliable pressure sealing with Viton O-ring
Shipping Information
- FedEx International Priority available
- UPS Worldwide Express service
- DHL Express Worldwide delivery
- Global shipping options
Technical Documentation
Download the complete installation and specification guide for detailed technical information: 3300 NSv Proximity Probe Datasheet
