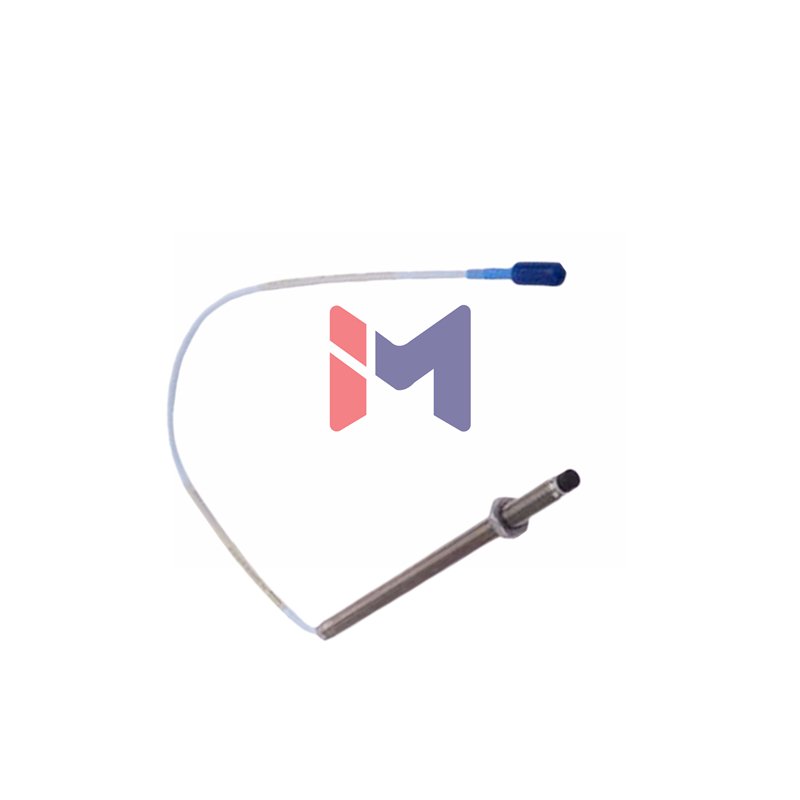

Product Overview: Bently Nevada 330904-00-06-05-01-00
The 3300 NSv proximity probe represents the latest in vibration monitoring technology from Bently Nevada. This specific model 330904-00-06-05-01-00 comes with protective stainless steel armor. It ensures reliable operation in harsh industrial environments where cable damage is a concern.
Model Configuration Details
Complete Part Number: 330904-00-06-05-01-00
- Base Model: 330904 (3300 NSv Probe, M8X1 thread, with armor)
- Option 1: 00 (Unthreaded Length: 00 mm)
- Option 2: 06 (Overall Case Length: 60 mm)
- Option 3: 05 (Total Cable Length: 0.5 meter/20 inches)
- Option 4: 01 (Connector: Miniature coaxial ClickLoc with protector)
- Option 5: 00 (Agency Approval: Not required)
Technical Specifications & Performance Data
- Manufacturer: Bently Nevada
- Product Line: 3300 XL NSv Proximity Transducer System
- DC Resistance: 4.0 ± 0.5 ohms (for 0.5 meter length)
- Linear Measurement Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm
- Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil) ±12.5%/-20%
- Non-Linearity: Less than ±0.06 mm (±2.3 mils) deviation
- Frequency Response: 0 to 10 kHz (±3 dB) with 305m field wiring
- Electrical Output: -1 to -13 Vdc proportional to gap distance
- Temperature Range: -52°C to +177°C operational and storage
- Cable Impedance: 75 ohm coaxial with FEP insulation
- Minimum Target Size: 8.9 mm diameter (13 mm recommended)
Mechanical & Installation Specifications
- Thread Size: M8 x 1.0 metric thread
- Case Material: AISI 304 stainless steel construction
- Tip Material: Polyphenylene sulfide (PPS) for durability
- Maximum Thread Engagement: 12 mm recommended
- Installation Torque: Finger tight plus 1/4 turn (max 0.56 N•m)
- Connector Torque: 5.1 N•m recommended (7.3 N•m maximum)
- Cable Bend Radius: Minimum 25.4 mm (1.0 inch)
- Optimal Gap Setting: 1.0 mm (40 mils) from target surface
System Integration & Wiring Guidelines
- Extension Cable Resistance: Center conductor 0.220 Ω/m, Shield 0.066 Ω/m
- Cable Capacitance: 69.9 pF per meter typical value
- Field Wiring Specification: 0.2 to 1.5 mm² three-conductor shielded triad
- Maximum Wiring Distance: 305 meters to monitor with signal rolloff consideration
- Connection Interface: Compatible with 3300 XL NSv Proximitor Sensors
