Description

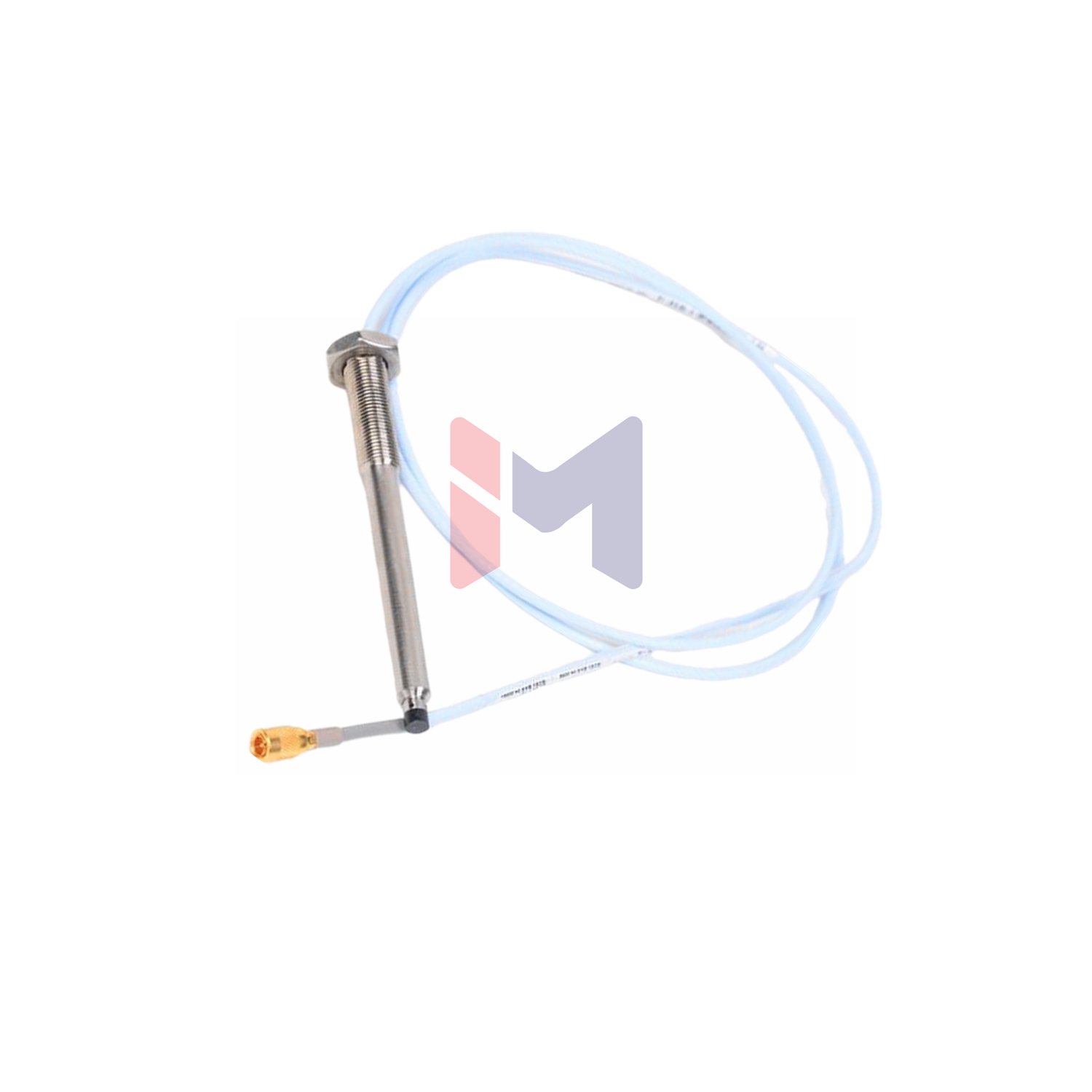

Advanced Chemical-Resistant Probe: Bently Nevada 330905-00-13-05-02-05
Next-generation NSv series probe with enhanced durability for harsh industrial environments.
Part Number Blueprint
[330905] NSv Probe Series │ ├── [00] 0mm unthreaded ├── [13] 130mm case ├── [05] 0.5m cable ├── [02] ClickLoc connector └── [05] Multiple approvals
Technical Specifications
- Resistance: 4.0Ω ±0.50
- Linear Range: 1.5mm (60 mils)
- Frequency: 0-10kHz (±3dB)
- Torque: 11.3N·m recommended
- Temp Range: -52°C to +177°C
Installation Guide
- Set gap at 1.0mm (40 mils)
- Max 305m cable run
- 25.4mm minimum bend radius
- Finger-tight installation
Durability Features
- Viton® O-ring seal
- PPS plastic tip
- 304 stainless steel case
- FEP insulated cable
Support & Shipping
12-month factory warranty. Ships via FedEx/UPS/DHL worldwide.
FAQ
Q: NSv vs RAM probes?
A: Better chemical resistance and side-view characteristics.
Q: Minimum target size?
A: 8.9mm diameter (13mm recommended).
Q: Cable options?
A: 0.5m, 1m, 5m or 7m lengths available.
Q: Pressure rating?
A: Seals differential pressure (contact for testing).
Q: Interchangeability?
A: Compatible with 3300 RAM probe systems.
Documentation
Download complete technical specifications:
3300 XL System Datasheet
