Description

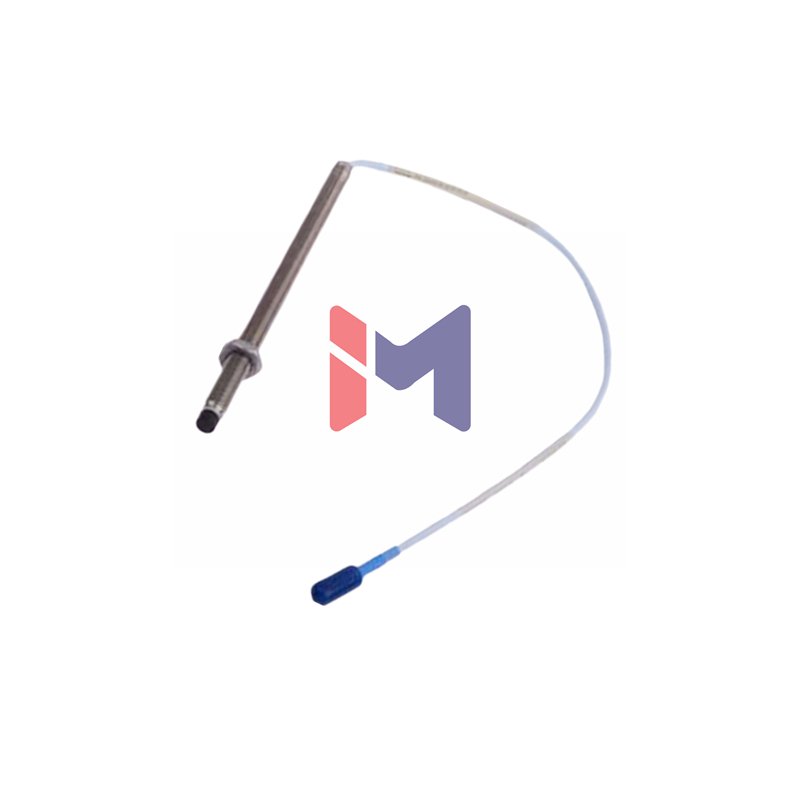

Bently Nevada 330905-05-25-10-01-00: High-Performance NSv Proximity Probe
Experience superior accuracy and durability with the Bently Nevada 330905-05-25-10-01-00 proximity probe. This advanced sensor offers excellent chemical resistance and stable performance across demanding industrial environments. Its design ensures reliable operation in process compressor applications and other high-precision machinery monitoring roles.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 NSv Proximity Probe
- Full Part Number: 330905-05-25-10-01-00
- Complete Suffix Tree:
- -05: 50 mm Unthreaded Length
- -25: 250 mm Overall Case Length
- -10: 1.0 meter (39 in) Total Cable Length
- -01: Miniature Coaxial ClickLoc Connector with Protector
- -00: Agency Approvals Not Required
- Linear Range: 1.5 mm (60 mils), from 0.25 to 1.75 mm from the target
- Recommended Gap Setting: 1.0 mm (40 mils)
- Incremental Scale Factor (Sensitivity): 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz, ideal for dynamic motion measurement
- Deviation from Straight Line (Linearity): Less than ±0.06 mm (±2.3 mils)
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Probe Tip Material: Chemical-resistant Polyphenylene Sulfide (PPS)
- Case Material: Durable AISI 304 Stainless Steel
- Minimum Target Size: 8.9 mm diameter (13 mm recommended)
