Description

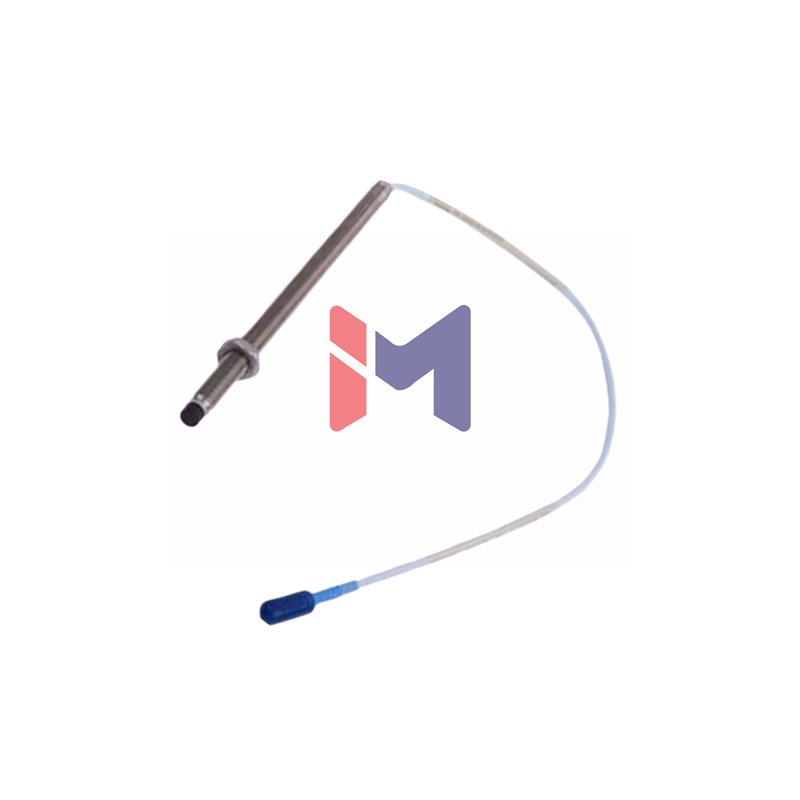

Bently Nevada 3300 NSv Certified Proximity Probe with Extended Reach
The Bently Nevada 3300 NSv Proximity Probe (Part Number: 330905-05-25-05-02-05) combines extended 250mm case length with multiple agency certifications for global industrial applications. This M10x1 threaded vibration sensor features standard cable with miniature ClickLoc connector and carries full international compliance approvals. The extended case design provides exceptional flexibility for challenging installation scenarios.
Product Identification & Certification
- Brand: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Base Model: 330905
- Full Part Number: 330905-05-25-05-02-05
- Certification Status: Multiple agency approvals included
Configuration Specifications
- Thread Type: M10x1 without armor plating
- Unthreaded Length: 50mm (-05-)
- Case Dimensions: 250mm extended length (-25-)
- Cable Length: 0.5 meter (20 inches) (-05-)
- Connection System: Miniature coaxial ClickLoc with standard cable (-02-)
- Compliance: Multiple international approvals (-05-)
Performance Specifications
- Measurement Range: 1.5mm (60 mils) full linear range
- Sensitivity: 7.87 V/mm (200 mV/mil) with +12.5%/-20% tolerance
- Linearity: Better than ±0.06mm (±2.3 mils) deviation from ideal
- Frequency Response: 0 to 10 kHz (±3dB) with 305m field wiring
- Temperature Range: -52°C to +177°C (-62°F to +351°F)
- Electrical Resistance: 4.0±0.5Ω for 0.5m cable configuration
- Target Requirements: Minimum 8.9mm, recommended 13mm diameter
- Response Time: <1 millisecond for rapid vibration detection
- Signal Stability: <±1% variation in typical operating conditions
Electrical Characteristics
- Cable Resistance Specifications:
- Center conductor: 0.220 Ω/meter
- Shield resistance: 0.066 Ω/meter
- Capacitance Values: 69.9 pF/meter typical
- Field Wiring Requirements: 0.2-1.5mm² (16-24 AWG) shielded triad cable
- Maximum System Distance: 305 meters (1000 feet) to monitoring equipment
- Insulation Resistance: >100 MΩ at 500 VDC
