Description

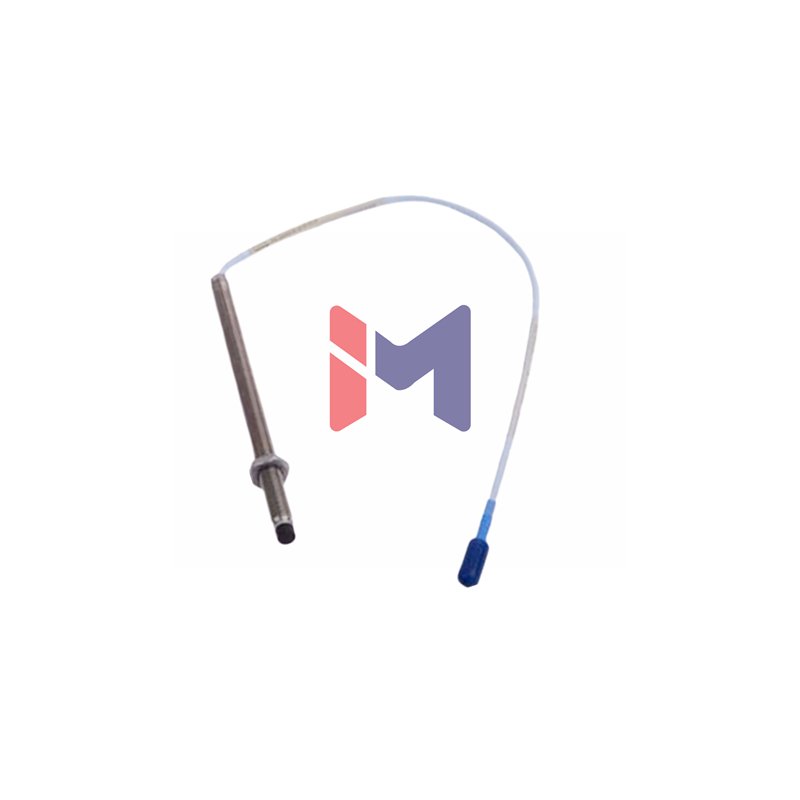

Bently Nevada 3300 NSv Proximity Probe with Connector Protector
The Bently Nevada 3300 NSv Proximity Probe (Part Number: 330905-05-25-05-01-05) offers extended 250mm case length with protective connector cover. This industrial vibration sensor includes multiple international approvals and standard cable with ClickLoc connector. The connector protector prevents damage during installation and maintenance.
Product Details
- Brand: Bently Nevada
- Model Series: 3300 NSv Proximity Probes
- Part Number: 330905-05-25-05-01-05
- Condition: New original factory packaging
- Warranty: 12 months warranty
Configuration Options
- Thread Type: M10x1 without armor
- Unthreaded Length: 50mm
- Case Length: 250mm extended
- Cable Length: 0.5 meter (20 inches)
- Connector Type: ClickLoc with protector
- Cable Type: Standard coaxial
- Approvals: Multiple international certifications
Technical Specifications
- Measurement Range: 1.5mm (60 mils)
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linearity: ±0.06mm (±2.3 mils)
- Frequency Response: 0-10 kHz (±3dB)
- Temperature Range: -52°C to +177°C
- Probe Resistance: 4.0±0.5Ω
- Target Size: Min 8.9mm, recommended 13mm
- Cable Resistance: 0.220 Ω/m (center)
- Cable Capacitance: 69.9 pF/m typical
Physical Properties
- Case Material: 304 stainless steel
- Tip Material: PPS (chemical resistant)
- Sealing: Viton O-ring
- Minimum Bend Radius: 25.4mm (1 inch)
- Max Torque: 0.56 N·m (5 in·lb)
Installation Guide
- Use finger tight plus 1/4 turn
- Maximum 15mm thread engagement
- Set gap to 1.0mm (40 mils)
- Keep probe perpendicular to target
- Use proper cable strain relief
Shipping Information
- Shipping Methods: FedEx, UPS, DHL
- Packaging: Factory sealed box
- Lead Time: Usually ships same day
