Description

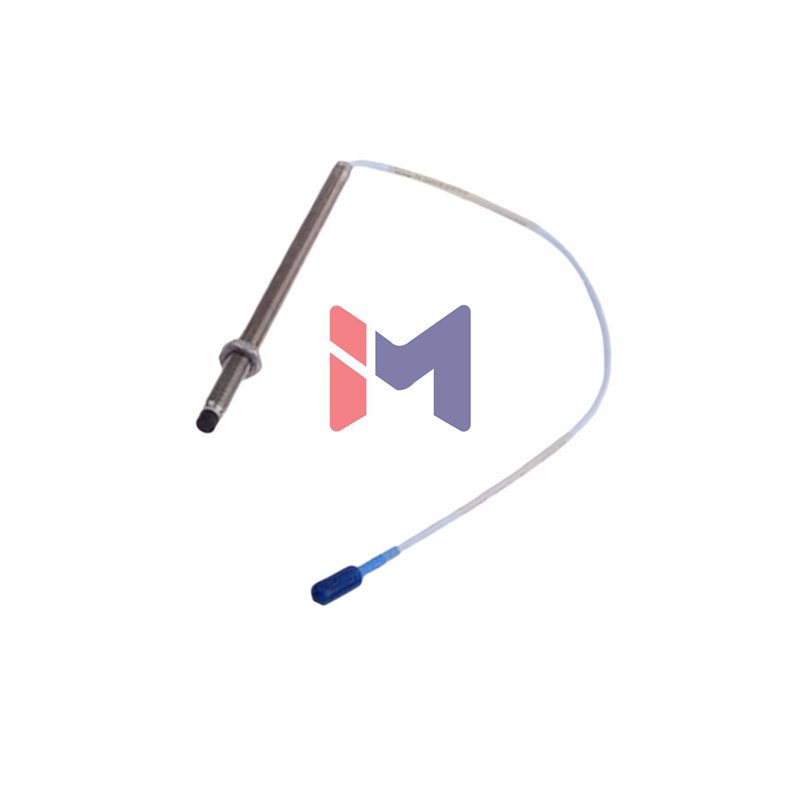

Bently Nevada 3300 NSv Proximity Probe: Premium Vibration Measurement
The new Bently Nevada 330905-05-13-10-01-00 proximity probe delivers exceptional reliability for industrial machinery monitoring. This 3300 NSv series probe offers superior chemical resistance and performance for critical applications like process compressors.
Complete Product Identification
- Brand: Bently Nevada
- Base Model: 330905
- Full Suffix: 330905-05-13-10-01-00
- Thread Specification: M10X1 thread without armor
- Unthreaded Length: 50 mm (-05-)
- Case Length: 130 mm (-13-)
- Cable Length: 1.0 meter/39 inches (-10-)
- Connector Type: Miniature coaxial ClickLoc with protector (-01-)
- Agency Approval: Not required (-00-)
Key Technical Specifications
- Linear Measurement Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm from target
- Recommended Gap Setting: 1.0 mm (40 mils)
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil) +12.5%/-20%
- Linearity (DSL): Better than ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
- Temperature Range: -52°C to +177°C (-62°F to +351°F)
- Probe Resistance: 4.2 ± 0.5 ohms for 1.0 meter length
- Minimum Target Size: 8.9 mm (0.35 in) diameter
- Case Material: AISI 304 stainless steel
- Tip Material: Polyphenylene sulfide (PPS)
