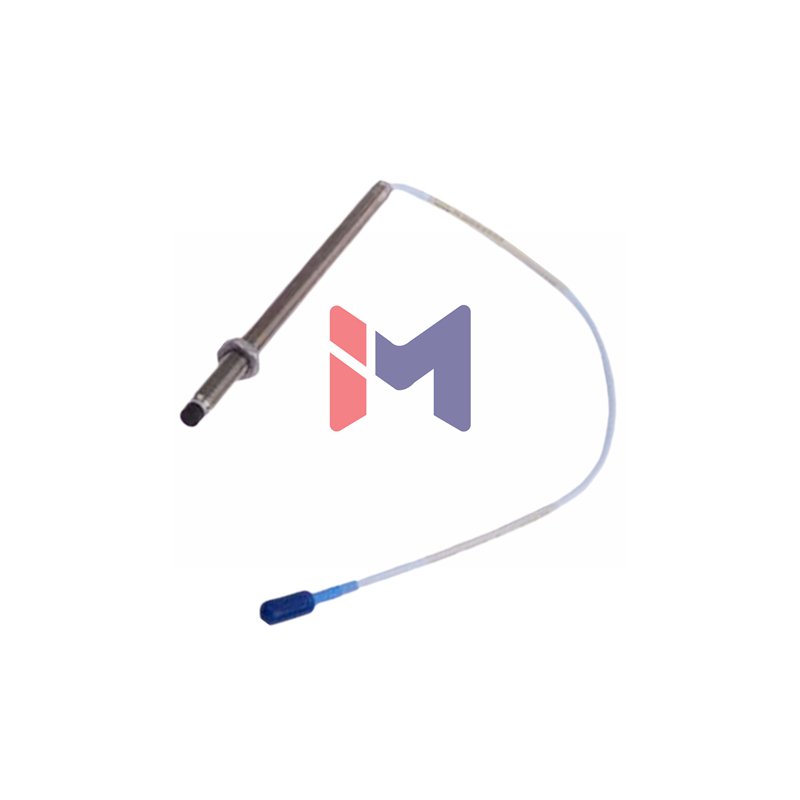

Bently Nevada 3300 NSv Proximity Probe – High Performance Vibration Sensing
Discover the advanced 3300 NSv proximity probe from Bently Nevada, designed for precision vibration measurement in demanding industrial environments. This M10X1 threaded probe features enhanced chemical resistance and superior performance characteristics.
Product Identification & Configuration
- Full Part Number: 330905-05-13-05-02-00
- Base Model: 330905 – 3300 NSv Probe, M10X1 thread
- Configuration Breakdown:
- Unthreaded Length: 50 mm (option -05)
- Overall Case Length: 130 mm (option -13)
- Total Cable Length: 0.5 meter/20 inches (option 05)
- Connector: Miniature coaxial ClickLoc (option 02)
- Agency Approval: Not required (option -00)
Technical Specifications & Performance Data
- Electrical Characteristics:
- DC Probe Resistance: 4.0 ± 0.5 ohms (0.5m cable)
- Cable Resistance: 0.220 Ω/m center conductor, 0.066 Ω/m shield
- Cable Capacitance: 69.9 pF/m typical
- Impedance: 75 Ω coaxial design
- Measurement Performance:
- Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm
- Sensitivity: 7.87 V/mm (200 mV/mil) ±12.5%/-20%
- Linearity: Better than ±0.06 mm (±2.3 mils) deviation
- Frequency Response: 0 to 10 kHz (+0, -3 dB typical)
- Environmental Specifications:
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Storage Temperature: -52°C to +177°C (-62°F to +351°F)
- Minimum Bend Radius: 25.4 mm (1.0 inch)
