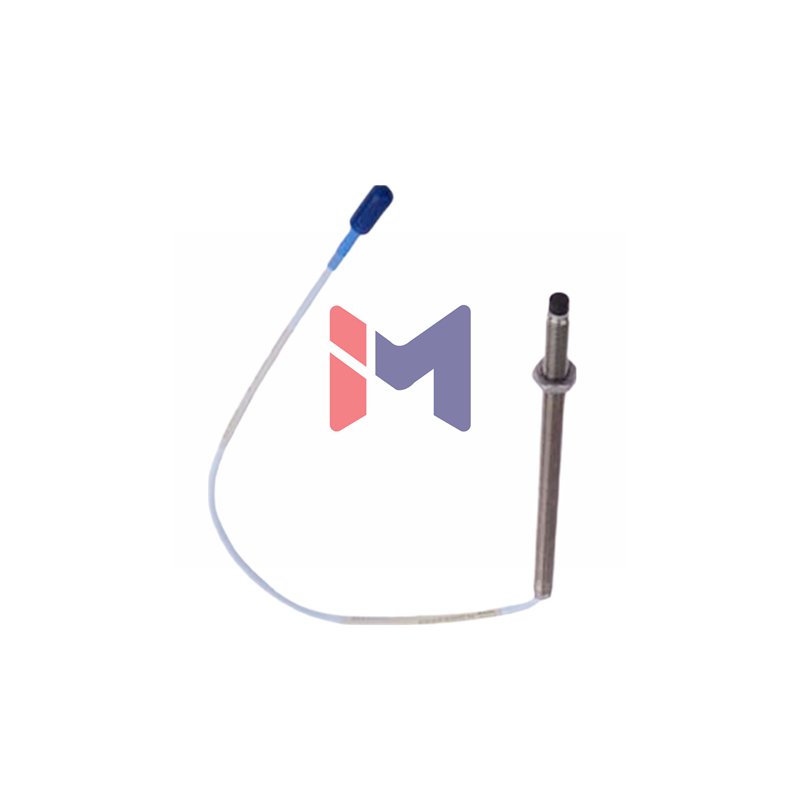

Bently Nevada 330905-05-13-05-01-00 Long Case Proximity Probe
Meet the 330905-05-13-05-01-00 from Bently Nevada. This long case vibration probe gives you extra reach for hard-to-access spots. It works with all 3300 monitoring systems. The probe comes new in original box with full warranty.
Product Details
- Brand: Bently Nevada
- Model: 3300 NSv Proximity Probes
- Full Part Number: 330905-05-13-05-01-00
- Configuration:
- Base Number: 330905 (M10X1 thread)
- Unthreaded Part: -05- (50 mm)
- Case Length: -13- (130 mm)
- Cable Length: -05- (0.5 meter)
- Connector: -01- (ClickLoc with protector)
- Approvals: -00- (Not required)
- Condition: New in factory box
- Warranty: 12 months
- Shipping: FedEx, UPS, DHL
Technical Specifications
- Measurement Range: 1.5 mm
- Best Gap: 1.0 mm (40 mils)
- Sensitivity: 7.87 V/mm (±20%)
- Linearity: ±0.06 mm
- Frequency Range: 0-10 kHz
- Minimum Target: 8.9 mm diameter
- Resistance: 4.0 ± 0.5 Ω
- Temperature Range: -52°C to +177°C
- Case Material: 304 stainless steel
- Tip Material: PPS plastic
- Cable Type: 75 Ω coaxial
- Max Torque: 0.56 N•m
What’s In The Box
- One vibration probe
- Pre-attached 0.5 meter cable
- Connector protector
- Factory packaging
Installation Notes
- Set gap to 1.0 mm from target
- Use finger tight or 0.56 N•m torque
- Keep cable bends over 25.4 mm
- Use triad cable for long runs
- Allow 15 mm thread engagement
Common Questions
- Why choose this long case model?
The 130mm length helps when you need extra reach past covers or walls. - Does it work with my existing system?
Yes, it works with all 3300 monitors and older RAM systems. - What is the operating temperature?
It works from -52°C to +177°C for most applications. - How accurate is this probe?
It keeps within ±0.06 mm linearity across its full range. - What cable comes with it?
It includes a 0.5 meter FEP-insulated coaxial cable.
