Description

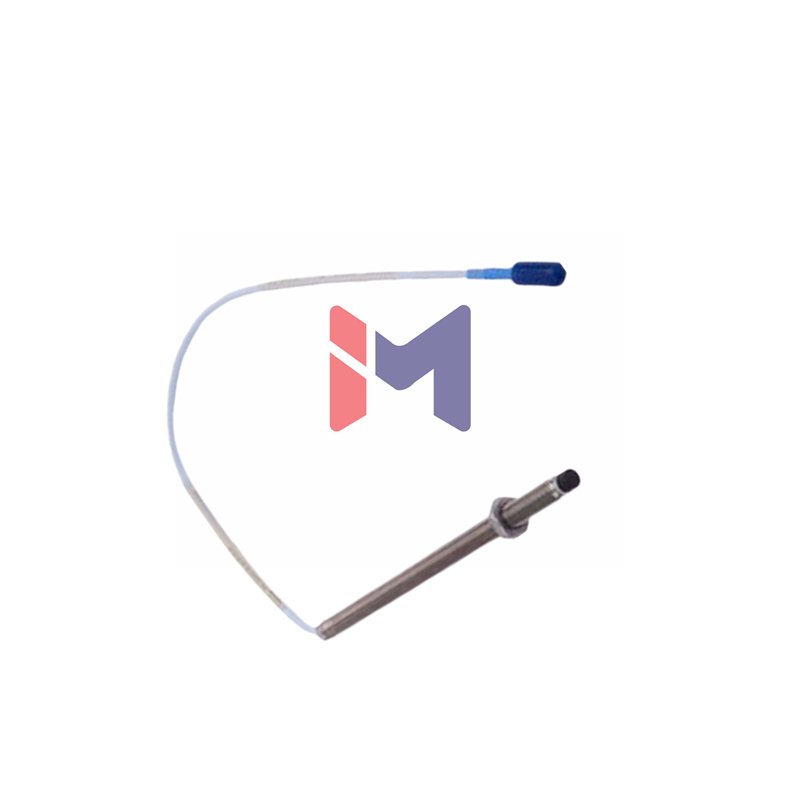

Bently Nevada 3300 NSv Proximity Probe – High-Performance Industrial Sensing Solution
The Bently Nevada 3300 NSv Proximity Probe offers advanced performance for vibration and position monitoring. It is fully interchangeable with earlier 3300 RAM probes and offers improved chemical resistance. Engineers widely use this sensor across industrial applications including process compressors.
Complete Suffix Information
- Model: 330905 – 3300 NSv Probe, M10X1 thread, without armor
- Unthreaded Length: -05 = 50 mm
- Overall Case Length: -10 = 100 mm
- Total Length: 10 = 1.0 meter (39 in)
- Connector & Cable: 12 = Miniature coaxial ClickLoc connector, FluidLoc cable
- Agency Approval: -05 = Multiple Approvals
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 NSv
- Linear Range: 1.5 mm (60 mils) from 0.25 to 1.75 mm from the target
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil)
- Frequency Response: 0 to 10 kHz (±3 dB)
- DC Probe Resistance: 4.2 Ω ± 0.5 Ω for 1.0 m cable
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Case Material: AISI 304 Stainless Steel
- Tip Material: Polyphenylene Sulfide (PPS)
- Minimum Target Size: 8.9 mm diameter (13 mm recommended)
Frequently Asked Questions (FAQ)
- Is the 3300 NSv probe compatible with older systems?
Yes, the 3300 NSv is mechanically and electrically compatible with the previous 3300 RAM probe. - What is the maximum cable length?
You can use field wiring up to 305 meters (1000 feet) between the sensor and monitor. - What is the sealed pressure rating?
The probe seals differential pressure with a Viton O-ring but is not pressure tested before shipment.
