Description

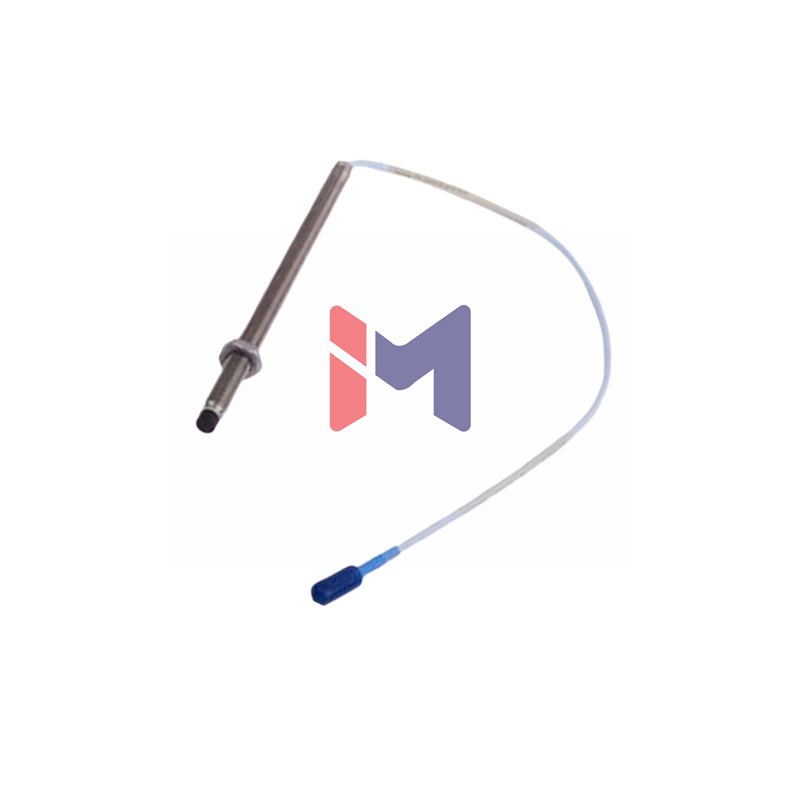

Bently Nevada 330905-05-10-10-02-05 Premium NSv Proximity Probe
Product Identification
- Manufacturer: Bently Nevada
- Series: 3300 NSv Proximity Probes
- Full Part Number: 330905-05-10-10-02-05
- Configuration Breakdown:
- → Base Model: 330905 (3300 NSv Probe, M10X1 thread)
- → Unthreaded Length: -05 (50 mm)
- → Case Length: -10 (100 mm)
- → Cable Length: -10 (1.0 meter/39 in)
- → Connector: -02 (Miniature coaxial ClickLoc)
- → Approval: -05 (Multiple Agency Approvals)
Key Technical Specifications
- Measurement Range: 1.5 mm (60 mils) linear range
- Sensitivity: 7.87 V/mm (200 mV/mil)
- Linearity: Better than ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz (±3 dB)
- Temperature Rating: -52°C to +177°C operational
- Probe Resistance: 4.2 Ω ± 0.5 Ω at 20°C
- Cable Capacitance: 69.9 pF/m typical
- Minimum Target: 8.9 mm diameter (13 mm recommended)
- Case Material: AISI 304 stainless steel construction
- Tip Material: Chemical-resistant PPS polymer
Installation & Mounting
- Apply maximum installation torque of 7.5 N•m (66 in•lb)
- Maintain minimum 15 mm thread engagement for proper mounting
- Observe cable bend radius exceeding 25.4 mm (1.0 inch)
- Set optimal gap distance at 1.0 mm (40 mils) from target
- Use three-conductor shielded triad cable for field wiring
Packaging & Shipping Details
- Condition: Factory new in original sealed packaging
- Contents: One 3300 NSv probe unit with connector protector
- Shipping: International delivery via FedEx, UPS, DHL
- Handling: Professional packaging for secure transit
