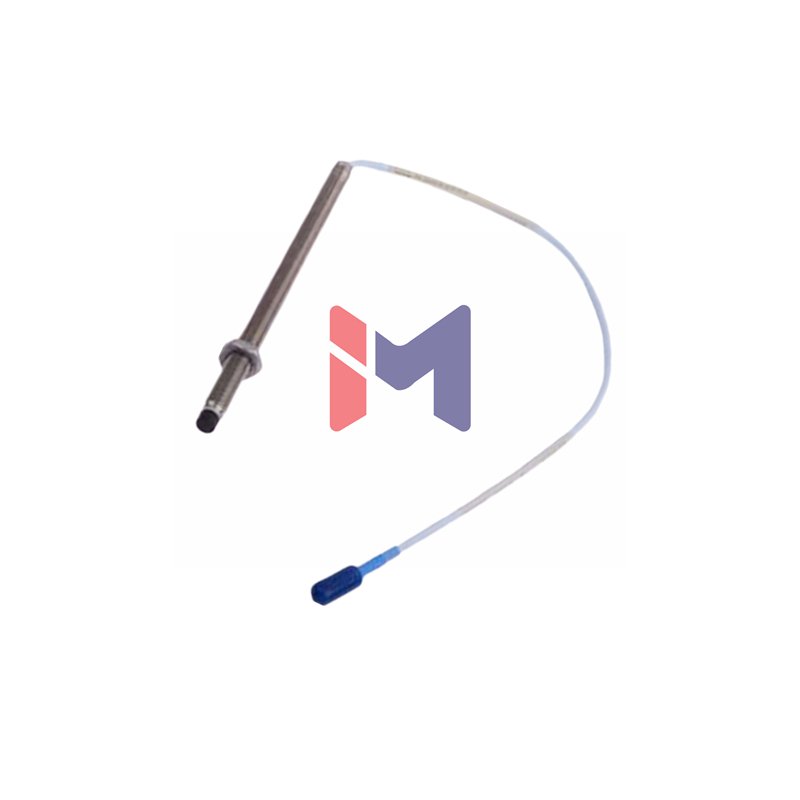

Introducing the Bently Nevada 3300 NSv Proximity Probe
The Bently Nevada 3300 NSv Proximity Probe delivers high-performance vibration and position sensing. This new 330905 model is perfect for monitoring industrial machinery like turbines and compressors. It comes in original factory packing for guaranteed reliability.
Full Model Suffix: 330905-05-10-10-01-00
- Brand: Bently Nevada
- Base Model: 330905
- Unthreaded Length: -05 | 50 mm
- Case Length: -10 | 100 mm
- Cable Length: 10 | 1.0 meter (39 inches)
- Connector Type: 01 | Miniature Coaxial ClickLoc with protector
- Agency Approval: -00 | Not Required
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 NSv
- Linear Range: 1.5 mm (60 mils), from 0.25 to 1.75 mm from target
- Recommended Gap: 1.0 mm (40 mils)
- Sensitivity (ISF): 7.87 V/mm (200 mV/mil)
- Non-Linearity: Less than ±0.06 mm (±2.3 mils)
- Frequency Response: 0 to 10 kHz (+0, -3 dB) with 305 m cable
- DC Probe Resistance: 4.2 Ω ± 0.5 Ω for 1.0 m cable
- Operating Temperature: -52°C to +177°C (-62°F to +351°F)
- Minimum Target Size: 8.9 mm diameter (13 mm recommended)
- Case Thread: M10x1
- Maximum Torque: 0.56 N•m (5 in•lb)
- Cable Type: 75 Ω coaxial with FEP insulation
- Case Material: AISI 304 Stainless Steel
Packaging List
- One Bently Nevada 330905-05-10-10-01-00 Proximity Probe
- One Miniature Coaxial ClickLoc Connector with protector
Shipping Options
- We ship worldwide using reliable couriers: FedEx, UPS, and DHL.
Frequently Asked Questions (FAQ)
- Is the 3300 NSv probe compatible with my existing system?
Yes. The 3300 NSv is fully compatible with the previous 3300 RAM probe system. - What is the advantage of the NSv over the older 190 probe?
The 3300 NSv offers better side-view performance and increased chemical resistance. - Can I use this probe for high-pressure applications?
The probe seals differential pressure with a Viton O-ring. Contact us for specific pressure testing requirements.
