Description

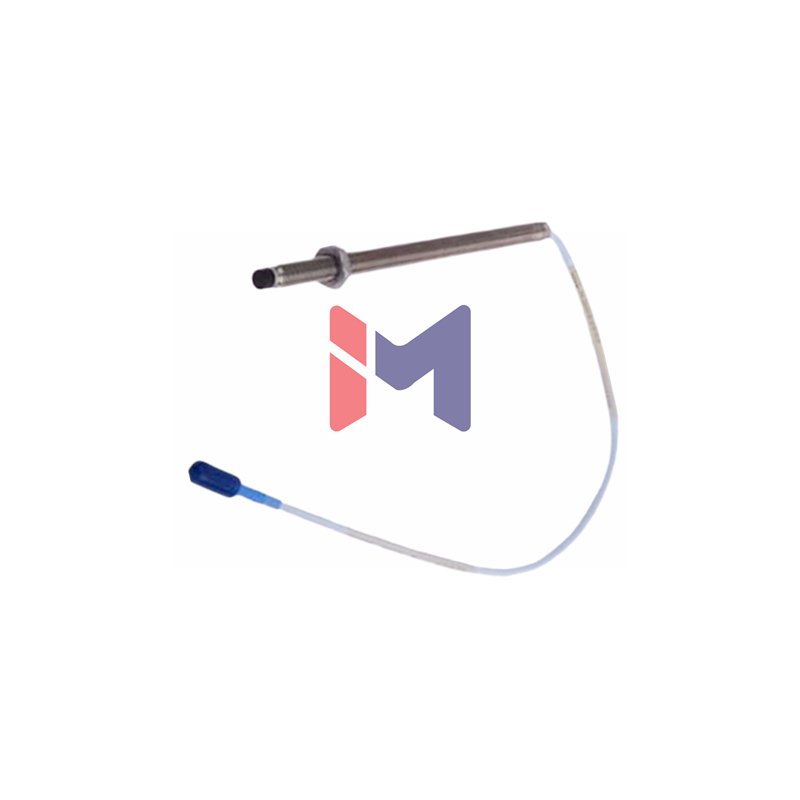

Bently Nevada 330905-05-10-05-12-05 Proximity Probe
Discover the Bently Nevada 330905-05-10-05-12-05 – a versatile industrial sensor with global certifications. This 100mm length probe features FluidLoc technology and exceptional chemical resistance for harsh environments.
Product Configuration
- Manufacturer: Bently Nevada
- Complete Part Number: 330905-05-10-05-12-05
- Series: 3300 NSv Proximity Probes
- Configuration Map:
- ▸ Base Model: 330905 (M10X1 thread, no armor)
- ▸ Unthreaded: -05- (50 mm length)
- ▸ Case Size: -10- (100 mm total length)
- ▸ Cable: -05- (0.5 meter length)
- ▸ Connection: -12- (ClickLoc + FluidLoc cable)
- ▸ Certification: -05- (Multiple agency approvals)
Technical Specifications
- Output Sensitivity: 7.87 V/mm (200 mV/mil)
- Measuring Range: 1.5 mm (60 mils) linear span
- Optimal Gap: Set at 1.0 mm (40 mils)
- Accuracy: Better than ±0.06 mm (±2.3 mils)
- Frequency Range: 0 to 10 kHz flat response
- Temperature Range: -52°C to +177°C
- Electrical Resistance: 4.0 ± 0.5 Ohms
- Target Size: 13 mm minimum diameter
- Cable Type: 75 Ω coaxial with FEP insulation
- Sealing: Viton O-ring pressure seal
- Response Time: < 100 microseconds
- Hysteresis: < 0.5% of full scale
Installation Guide
- Install with finger tight torque
- Maximum torque: 0.56 N•m (5 in•lb)
- Minimum bend radius: 25.4 mm (1.0 in)
- Connector torque: 7.5 N•m (66 in•lb)
- Thread engagement: 15 mm maximum
- Mounting orientation: Any position
Shipping & Packaging
- Condition: New in original factory packaging
- Shipping Carriers: FedEx, UPS, DHL worldwide
- Package Contents: Probe with 0.5m FluidLoc cable
- Lead Time: Usually ships within 24 hours
- 330905-05-25-10-01-00: 250mm extended length version
